EAN: 6941565996053

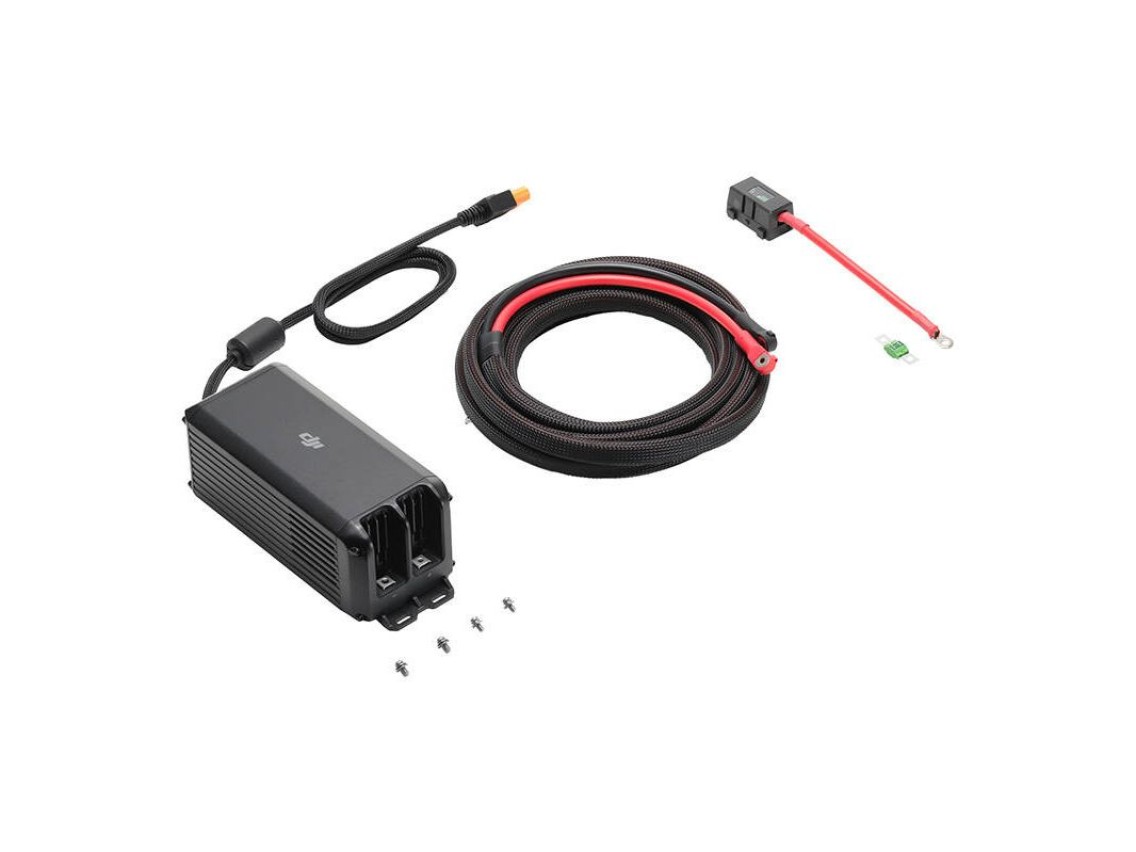

DJI Power 1kW fast car charger
The DJI Power charger is a reliable solution that allows you to quickly and safely charge your DJI Power 1000 device while on the go. With smart two-way charging and easy installation, you can make the most of your vehicle's power while keeping its electrical system safe. Bet on the efficiency and comfort of your trip with DJI Power.
Instant charging of up to 1000W
DJI Power is designed for maximum efficiency. With it, you can charge your DJI Power 1000 battery in about 78 minutes of driving time, yielding up to 1,024 Wh. While you're driving, the charger uses excess power from your car's alternator, increasing your vehicle's electrical capabilities and allowing you to quickly recharge your devices. What's more, the device provides intelligent, bidirectional charging to power your car battery with the DJI Power 1000, preventing it from discharging.
Compatibility with 12V and 24V systems
The DJI Power charger is compatible with 12V and 24V automotive systems, so it fits a wide range of vehicles. However, it is important that the input voltage of the car's charging terminals does not exceed 45V. Before installation, make sure all wires are properly secured and the screw terminals are tightened securely.
Safe installation and operation
To avoid damaging the equipment, install the charger in the correct order. Secure the charger's wires first, and then connect the fuse and the car battery wires. This procedure will help prevent short circuits that could damage the device. Also remember that the DJI Power charger is not resistant to water or dust, so avoid their contact with the device during installation.
Protect your vehicle's electrical system
The DJI Power charger is factory set to 500W charging power to protect your vehicle's electrical system. If you want to increase the charging power to 1000W, just use the DJI Power Dongle and adjust the settings in the app. This option allows you to optimize charging as needed, without risking damage to vehicle components.
Included
- DJI Power 1kW car charger
- cable for the charger
- fuse box
- fuse (100 A)
- M5 screw
- M4 screw
| Manufacturer | DJI |
|---|---|
| Weight | Approximately 1.25 kg |
| Dimensions | 235 x 93 x 83.5 mm |
| Ports | Car charging terminals (positive and negative terminal) |
| Input | Car charging terminals 12-45 V, maximum current 70 A, maximum power of 1000 W; SDC port (output) 40-58.4 V (measurement was carried out at an ambient temperature of 25°C (77°F) when connected to a 12V car system with 14.3 V and a current of 70 A) |
| Output (power supply, car charging) | SDC port 40-58.4 V; Car charging terminals - 12V system: 11-14.4 V, maximum power of 1000 W, 24V system: 22-28.8 V, maximum power of 1000 W (at an ambient temperature of 25°C (77°F), it can charge the DJI Power 1000 with a maximum output power of 1000 W through a car alternator) |
| Charging temperature | 0° to 45°C (32° to 113°F) |
| Power temperature | -10° to 45°C (14° to 113°F) |
| Length of car charging cable | 5 m |
| Fast charging | Supported |
| Compatibility | DJI Power 1000 |
