EAN: 4895248861720

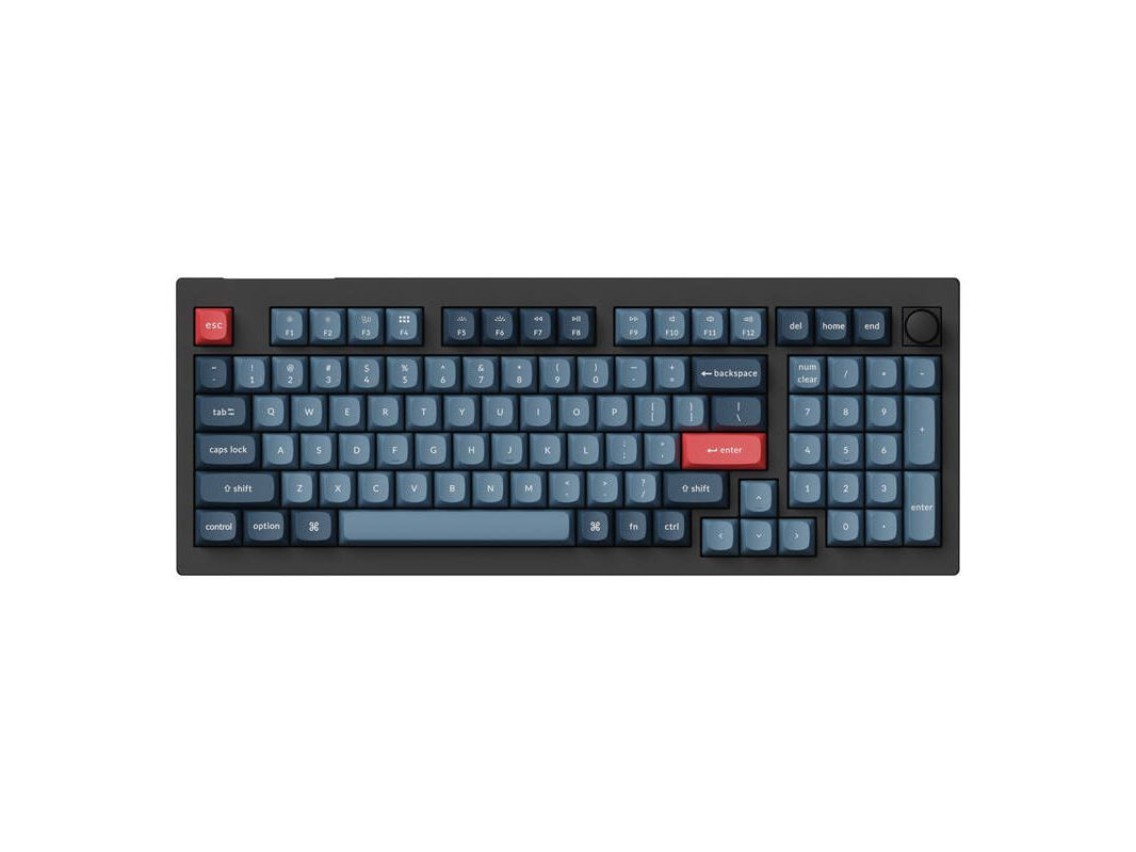

Keychron V5 Max RGB Red Switch Wireless Mechanical Keyboard (Black) [V5M-D1].
Keychron V5 Max is an advanced wireless mechanical keyboard that perfectly combines modern technology with full customization. Its compact 1800 layout, N-Key Rollover support, RGB backlighting and Gateron Jupiter Red switches make it perfect for gamers and beyond. The device also offers three ways to connect - in the 2.4 GHz band, via Bluetooth 5.1 and wired. It's also compatible with Windows and macOS.
Flexible wireless connectivity
The Keychron V5 Max offers two wireless modes for convenience and speed. The 2.4 GHz mode with a polling rate of 1,000 Hz guarantees minimal latency - ideal for intense gaming. Bluetooth 5.1, on the other hand, allows simultaneous connection to three devices and seamless switching between them. In addition, two 2.4 GHz receivers are included (USB-A and USB-C), which translates into even more flexibility.
Reliable switches - precision and durability
The keyboard is equipped with Gateron Jupiter Red switches, which offer exceptional smoothness and a lifespan of up to 80 million presses. Thanks to a unique LED diffuser design, they also provide high RGB light transmission, creating a subtle, eye-pleasing lighting effect. In addition, special PCB stabilizers provide smoother operation and less wobble for large keys such as space bar and enter. The keyboard also supports hot-swapping. The PCB-mounted connectors are compatible with most MX 3-pin and 5-pin switches, such as Gateron, Cherry MX or Kailh. So you can replace them without soldering!
Gasket design - quiet and comfortable operation
The V5 Max keyboard was designed with comfort and aesthetics in mind. The gasket-type design with a polycarbonate plate effectively reduces acoustic resonance and ensures smooth, yet quiet key clicks. This innovative solution is ideal for those working in quiet environments and gamers who appreciate pleasant sound and comfort during long gaming sessions.
Versatile personalization with QMK
With support for QMK software, the V5 Max model allows full personalization. You can program key functions, assign macros, set RGB backlighting effects and much more. The open platform gives you almost infinite possibilities to customize the keyboard to your individual needs!
Durable OSA keys with PBT, wide compatibility
The OSA (OEM Spherical Angled) keys made of high-quality PBT plastic are resistant to grease and abrasion, which guarantees their durability. They combine the height of the OEM profile with the shape of the SA for comfortable typing and an aesthetically pleasing appearance. You also don't have to worry that the markings on the keycaps will fade over time - they will stay clear for a really long time. At the same time, the keyboard is fully compatible with Windows and macOS. A built-in system switch and an additional set of keycaps allow you to change the layout quickly and easily. This allows you to have two different configurations on one device - say goodbye to limitations!
ARM Cortex-M4 processor
The V5 Max's performance is based on a powerful ARM Cortex-M4 processor with 256 KB of Flash memory. A polling rate of 1000 Hz in wired mode and 2.4 GHz makes latency virtually imperceptible, making the keyboard an ideal choice for gamers who value speed and precision.
Colorful RGB backlighting
The RGB backlighting on the V5 Max perfectly illuminates the keys for an even and stylish effect. This design will also work great with keycaps of other profiles, such as OEM or Cherry, for example. So you are free to personalize the look of the keyboard!
Included
- Keyboard (including case, PCB, PC board, sound absorbing foam, 6 sets of stabilizers, keycap set, switch set)
- USB-C to USB-C cable
- USB-A to USB-C adapter
- Receiver adapter
- 2.4 GHz USB-A receiver
- 2.4 GHz USB-C receiver
- Keycap and switch puller
- Screwdriver
- Allen wrench
| Manufacturer | Keychron |
|---|---|
| Model | V5 Max |
| Connection | Bluetooth / 2.4 GHz / wired |
| Housing material | ABS |
| Board material | PC |
| Polling Rate | 1000 Hz (2.4 GHz and wired mode) / 90 Hz (Bluetooth) |
| Mounting method | Gasket Mount |
| Bluetooth device name | Keychron V5 Max |
| Battery capacity | 4000 mAh |
| Battery type | Li-po |
| Operating time (backlight off) | Up to 225 h |
| Operating time (RGB, lowest brightness) | Up to 100 h |
| Charging time | Approximately 5 h |
| Bluetooth version | 5.1 |
| Compatible systems | Windows / macOS / Linux |
| N-Key Rollover (NKRO) | Yes, in wireless and wired modes |
| Hot-swapping | Yes. The keyboard is compatible with most MX 3-pin and 5-pin switches, such as Gateron, Cherry MX, Kailh, etc. |
| Keycaps | Double-shot PBT, OSA profile (OEM height, SA shape) |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256 KB Flash) |
| Switches | Gateron Jupiter Red |
| Backlighting | RGB LED |
| Stabilizer | Screw-in PCB stabilizers |
| Charging port | USB-C |
| Cable | USB-C cable + USB-A to USB-C adapter |
| Operating temperature | From -10°C to 50°C |
| Width | 148.7 mm |
| Length | 391.5 mm |
| Height at front | 21.7 mm (without keycaps) |
| Rear height | 29.6 mm (without keycaps) |
| Height of the feet | 2 mm |
| Angle | 3,5° / 8° / 10° |
| Weight | Approx. 925 g |
