EAN: 4897118831949

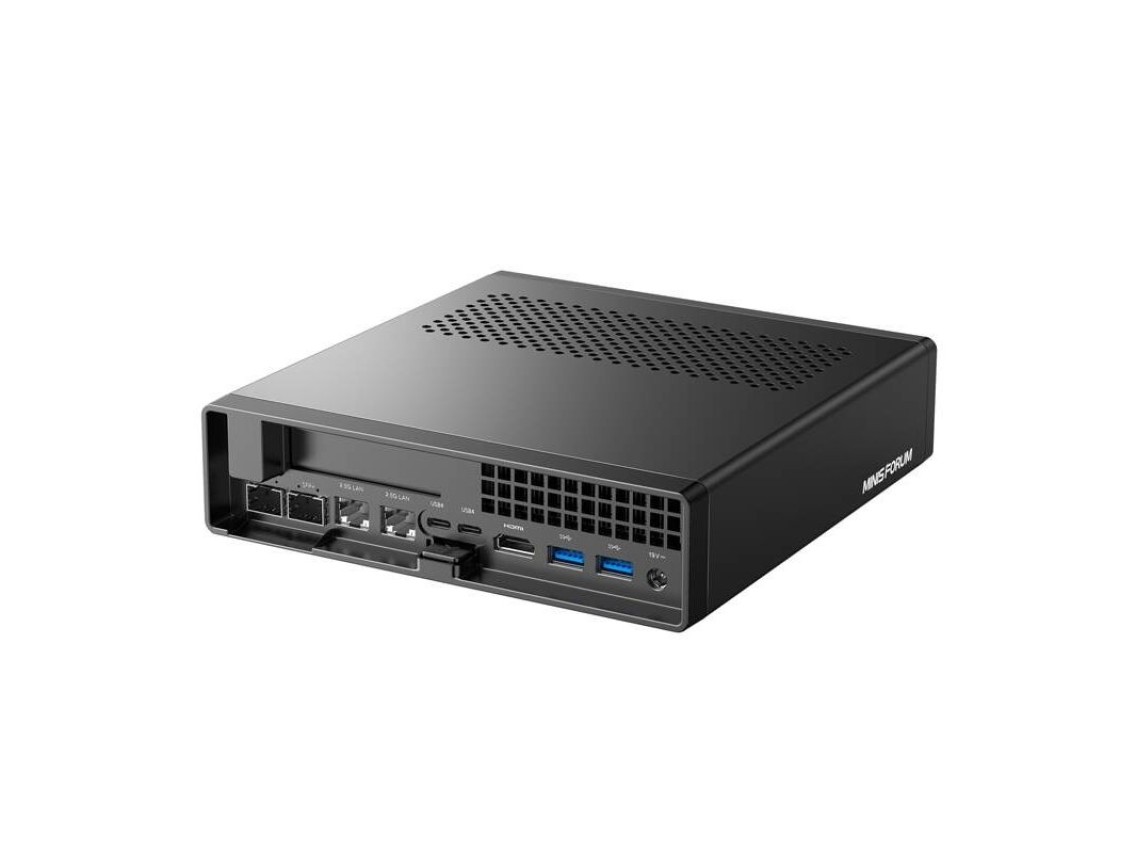

MINI-PC Minisforum MS-01-S1390 Intel Core i9-13900H
The MINISFORUM MS-01-S1390 is a compact but extremely powerful Mini-PC that will successfully perform both at work and at home. Equipped with an Intel Core i9-13900H processor from the Raptor Lake-H series, it offers impressive smoothness of operation, making it an ideal choice for working with demanding applications, video editing, or managing extensive databases. Note: the device does not include RAM and SSD.
Performance at the highest level
The MINISFORUM MS-01-S1390 is equipped with a 14-core, 20-thread processor that reaches a maximum frequency of 5.4 GHz. Thanks to Intel 7 technology, you can count on the high performance needed for the most demanding tasks. Support for DDR5 RAM at up to 4800 MHz and expandable up to 64 GB allows for smooth multitasking.
Storage flexibility
The mini-PC allows you to mount 2 NVMe M.2 SSDs (2280/22110), with RAID0/RAID1 configuration and a maximum capacity of up to 4 TB. In addition, it supports U.2 drives. Such a solution not only guarantees lightning fast read and write speeds, but also ensures data security.
Advanced connectivity options
The MINISFORUM MS-01-S1390 offers a wide set of ports. There are two 10Gbps SFP+ ports, two 2.5Gbps RJ45 ports, and two Thunderbolt Ethernet-enabled USB4 ports with 20 Gbps connectivity each, for a total transfer speed of up to 65 Gbps. The mini-PC also features a full-size PCIe 4.0 port. As a result, you can transfer data at lightning speed and gain versatility in connecting peripherals.
Cooling and reliability
Thanks to the Cold Wave 2.0 cooling system with active RAM and SSD cooling, the computer maintains a stable temperature even during intensive work. This ensures not only high performance, but also longer component life.
| Manufacturer | Minisforum |
|---|---|
| Model | MS-01-S1390 |
| Processor | Intel Core i9-13900H |
| Architecture | Raptor Lake-H |
| Number of cores | 14 |
| Number of threads | 20 |
| Base frequency | / |
| Maximum frequency | 5.4 GHz |
| Processor technology | Intel 7 |
| RAM | DDR5, 0 GB |
| Frequency | 4800 MHz |
| Maximum capacity | 64 GB |
| Storage | SSD Type: M.2 22110/2280 NVMe SSD x2 |
| SSD capacity | 0 GB |
| Maximum SSD capacity | 4 TB |
| Graphics card | Intel Iris Xe Graphics |
| Connectivity | Wi-Fi: M.2 2230 (support Wi-Fi 6E, BT 5.2) |
| Ports | RJ45 (2.5G Intel KT226V B3) x1; RJ45 (2.5G with vPro, Intel I226-LM) x1; USB 2.0 (with SFP+ connector) x2; USB Type A (USB 3.2 10 Gbps) x2; SFP+ (PCIe 4.0 x4) x2; USB Type A (USB 3.2 10 Gbps) x2; USB 2.0 x2; Audio jack (3.5 mm combo jack) x1; Power button (with LED) |
| Operating system | None |
| Cooling system | Cold Wave 2.0 (liquid metal with active RAM and SSD cooling) |
| Mounting | On the desk |
| Power supply | 19V / 9.47A |
