EAN: 6972410024157

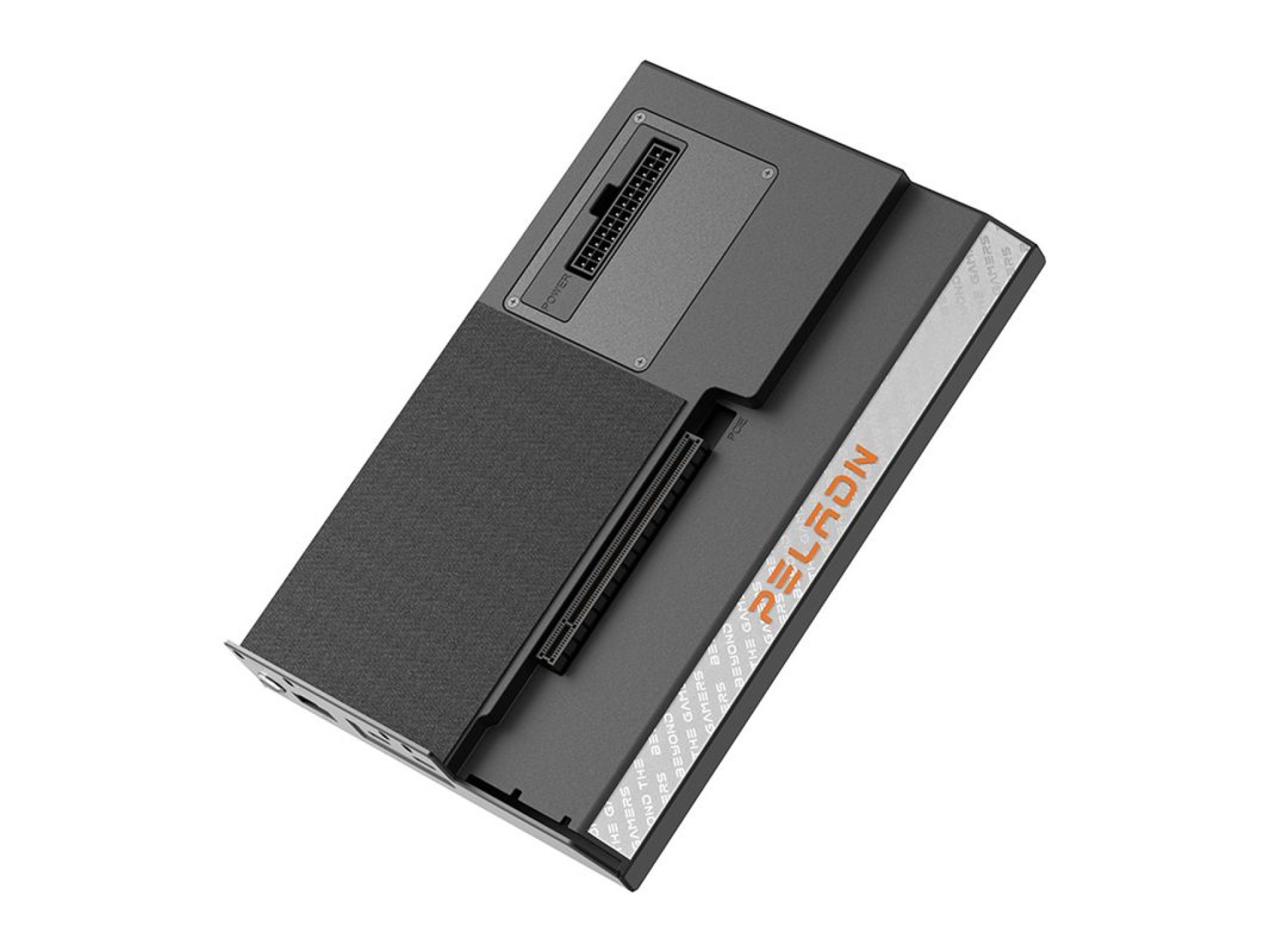

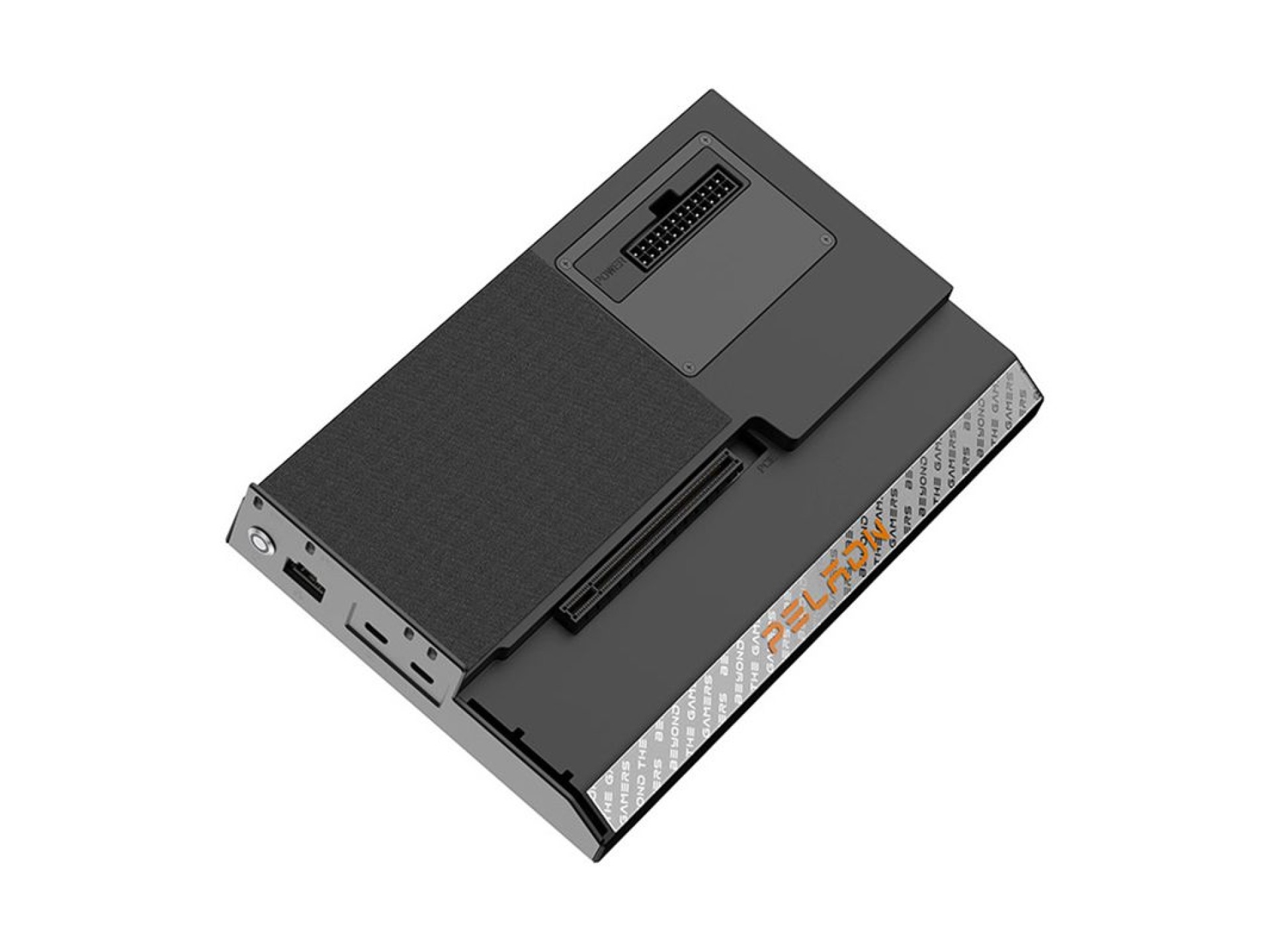

Peladn S-1 Thunderbolt 3 Docking Station
The Peladn S-1 Thunderbolt 3 is an external eGPU docking station that significantly boosts the graphics capabilities of a compatible laptop or desktop computer equipped with a Thunderbolt 3 port. With a bandwidth of up to 40 Gb/s, support for external graphics cards, and the option to use your own ATX or SFX power supply, you can create a setup tailored to your needs and budget. The compact design, measuring 253 × 162 × 41 mm, ensures the dock takes up minimal space while offering extensive expansion options.
Turn your laptop into a powerful gaming platform
Connecting the dock to your computer via Thunderbolt 3 lets you instantly harness the power of a dedicated graphics card. This is the solution for those who want to significantly improve their laptop’s graphics performance without having to buy a large and heavy gaming PC. Thanks to this, even lightweight and portable devices can handle demanding AAA games and tasks that require high GPU computing power.
Freedom to choose components
One of the biggest advantages of the Peladn S-1 is the ability to select both the graphics card and the power supply yourself. The dock is compatible with ATX and SFX power supplies, allowing you to easily tailor the configuration to your own requirements. It supports most graphics cards available on the market, including the NVIDIA RTX 40 and AMD RX 7000 series. For RTX 40 cards, it is recommended to use a power supply compliant with the ATX 3.0 standard.
Open design for effective cooling
The Peladn S-1 features an open design that facilitates component installation and ensures efficient heat dissipation. This design promotes better ventilation compared to many traditional eGPU stations, resulting in stable operation under heavy load. Open access to components also makes it easier to upgrade and replace parts.
Memory and connectivity expansion
The station offers additional expansion options thanks to an M.2 2280 NVMe slot supporting drives with capacities up to 2 TB. A 1000M Gigabit Ethernet port is also available, providing a stable wired network connection. This solution enhances the workstation’s functionality and allows for convenient use of both high-speed storage and wired internet.
Included
- Peladn S-1 eGPU docking station
- USB 4.0 cable
- Screwdriver
- Installation manual
| Manufacturer | Peladn |
|---|---|
| Model | S1 |
| Interface | Thunderbolt 3 x2 (60 W + 15 W) |
| Bandwidth | 40 Gb/s |
| Network port | Gigabit Ethernet 1000M x1 |
| Drive slot | M.2 2280 NVMe (up to 2 TB) x1 |
| Supported power supplies | ATX / SFX |
| Supported graphics cards | Most available graphics card models |
| Recommended AMD cards | RX570 or newer |
| Recommended NVIDIA cards | GTX1060 or newer |
| Support for NVIDIA RTX 40 series cards | Yes (with ATX 3.0 power supply) |
| AMD RX 7000 series support | Yes |
| Dimensions | 253 × 162 × 41 mm |
| System requirements | Windows 10 64-bit, macOS 10.13.4 or newer (AMD card support) |
| Computer requirements | Thunderbolt 3 port with external graphics card (eGPU) support |
