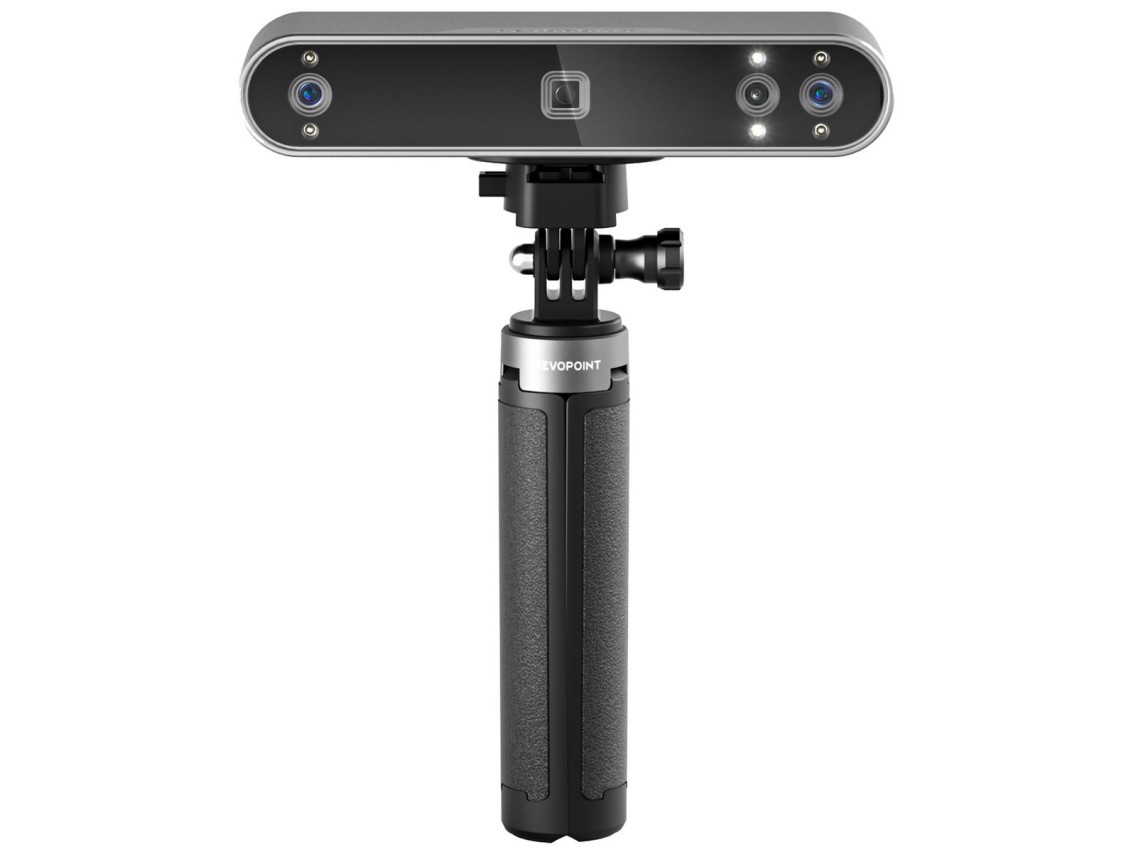

Revopoint Pop 3 Plus advanced 3D scanner
Discover the Revopoint POP 3 Plus, a portable 3D scanner that combines outstanding single-frame accuracy (0.08 mm), 2x optical magnification, image stabilization by a 9-axis IMU, and global marker tracking mode for flawless point cloud fusion. With scanning speeds of up to 18 frames per second and a built-in HD RGB camera, you'll get fast, full-color models, making the Pop 3 Plus up to 20% more precise than the Pop3. The scanner supports objects from 20mm all the way up to 2000mm, and the free, cross-platform Revo Scan software allows you to export almost any format without constant network access. Take your projects to the next level - bet on the reliability and quality that professionals expect. A two-axis turntable and powerbank are included with the Advanced version.
Exceptional precision in every detail
The Revopoint Pop 3 Plus is the latest model in the Pop series. It offers single-frame accuracy of 0.08 mm, which was previously only available on much more expensive units. The Pop 3 Plus offers as much as 20% more precision than its predecessor, which translates into even higher confidence in measurement repeatability. Whether you're digitizing a complex engine part or a richly decorated sculpture, every nuance will be rendered with the highest accuracy.
Advanced image tracking and stabilization
The built-in 9-axis IMU (Inertial Measurement Unit), consisting of a gyroscope, accelerometer and magnetometer, continuously monitors the scanner's movement. As a result, the Pop 3 Plus automatically corrects minor hand shake, eliminating the risk of blurry fragments and errors in merging successive frames. In addition, the global marker tracking mode significantly reduces the accumulation of errors in the point cloud, resulting in extremely stable and precise data fusion.
Fast and efficient scanning
With scanning speeds of up to 18 frames per second, you can go from object setup to finished 3D model in no time. The 2x optical magnification significantly increases the sharpness of the structured light, resulting in a 30% better point cloud reproduction compared to the previous Pop 3 model, while the built-in HD RGB (Red, Green, Blue, or Red, Green, and Blue) camera produces realistic, full-color textures that further enhance the digital reproduction.
Versatility of applications
The range of recommended scanning volumes (from 20 Ũ 20 Ũ 20 mm to as much as 2,000 Ũ 2,000 Ũ 2,000 mm) makes the Revopoint Pop 3 Plus ideal for precision engineering, as well as art archiving or automotive prototype preparation. Whether you're working in a design office, model shop or exhibition hall, this scanner will meet your most demanding expectations.
Hassle-free operation and comprehensive software
Installation of the Revo Scan 5 is simple and intuitive. All you have to do is connect the scanner to your computer, select your device from the list and start calibration with a few clicks, following the clear directions on the screen. IMU calibration provides full stabilization capabilities, and the free software runs on Windows, macOS, Android and iOS systems without the need for constant network access - an internet connection is only needed for updates and file transfers.
Full compatibility with your tools
You'll save your scanned models in PLY, OBJ, ASC, STL, FBX, GLTF and 3MF formats, guaranteeing seamless integration with the most popular CAD (Computer-Aided Design, a process that uses computer software to create, analyze, modify and document designs, typically in fields such as engineering, architecture and design), 3D printing applications or presentation platforms. This will bring digital scans into your system without any restrictions.
Included
- Pop 3 Plus 3D scanner
- tripod
- two-axis turntable
- charger for the two-axis turntable
- power bank
- reusable adhesive pad
- mini turntable
- turntable cap
- power cable for turntable
- smartphone holder
- carrying case
- calibration plate
- "magic mat"
- markers
- USB Type-C to Type-A adapter
- USB Type-C to Type-A cable
- 2-in-1 cable
- scanning bust
- user manual
| Manufacturer | Revopoint |
|---|---|
| Model | Pop 3 Plus advanced |
| Scanning type | Manually or with a desktop computer |
| Size of scanned objects | Medium (medium) |
| Precision of a single frame | 0.04 mm |
| Accuracy of a single frame | 0.08 mm |
| Anastomosis point distance | 0.05 mm |
| Working range | 150 ~ 400 mm |
| Single capture area at closest distance | 61 x 68 mm at 150 mm |
| Single capture area at farthest distance | 244 x 180 mm at 400 mm |
| Angular field of view (H x W) | 40 x 25° |
| Minimum scan volume | 20 x 20 x 20 mm |
| Maximum scan volume | 2x 2 x 2 m |
| Scanning speed | 18 fps |
| Camera resolution | 1MP depth camera, 1MP RBG camera |
| Color scanning | Supported |
| Outdoor scanning | Supported |
| 3D light source | Class 1 infrared light |
| Infrared fill light | Yes |
| White LED light | Yes |
| Sensors | 9-axis IMU |
| CPU | 2-core, 1.6 GHz |
| Built-in computing chip | Depth map calculation |
| Internal memory | None |
| RAM memory | None |
| Touchscreen display | None |
| Buttons | 3 |
| System requirements | macOS: RAM ≥8GB, CPU M1 Pro, M1 Max, M1 Ultra M2, M2 Pro, M2 Max, M2 Ultra M3, M3 Pro, M3 Max; Windows: RAM ≥16GB, CPU i5 - 12/13/14, i7 - 12/13/14, i9 - any series. |
| Recommended system requirements for PC | Intel Core i7, 16GB RAM or better |
| Compatible operating systems | Windows 10/11 (64-bit), Android, iOS, macOS |
| Native system | None |
| Supported formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FB, X |
| 3D model printing capability | Yes |
| Wi-Fi version | 6 |
| Bluetooth version | 4.1 |
| Connector type | USB Type-C |
| Power requirements | DC 5V, 1A |
| Battery | None |
| Weight | 190 g |
| Dimensions | 153 x 45 x 29 mm |
| Scanning non-standard objects | Recommended to use spray for transparent, dark or glowing objects |
