EAN: 6935750565872

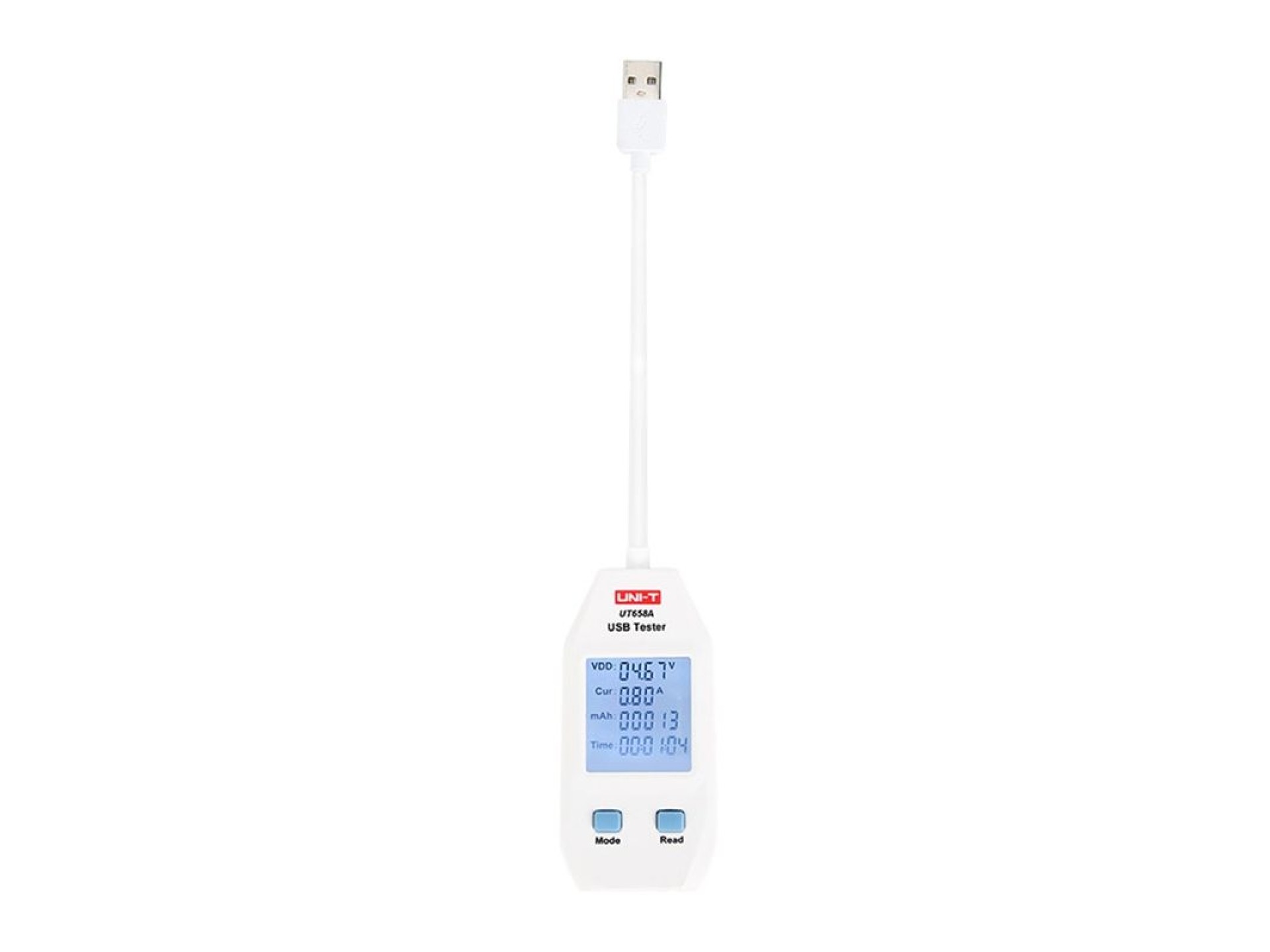

Uni-T UT658A USB Tester
The Uni-T UT658A is a compact USB tester designed to monitor the parameters of chargers, power banks, USB Type-A cables, and other power supply devices. The device measures voltage, current, energy, capacitance, equivalent circuit resistance, and D+ and D- line voltages, allowing you to quickly assess the power quality and condition of the tested accessory. It is a practical tool for service, engineering, and everyday equipment testing.
Key measurements in a handy form
The UT658A model supports USB Type-A ports and 2.0 and 3.0 protocols, offering voltage measurement in the range of 4–24 V DC and current from 0.05 to 3 A DC. The device also allows monitoring of capacitance up to 99,999 mAh, energy up to 1,000 Wh, equivalent circuit resistance from 1 to 480 Ω, and D+ and D- voltages up to 3.3 V. Support for the QC 3.0 protocol enhances the tester’s utility when working with fast-charging devices.
Convenient data logging and compact design
The UT658A allows you to save up to 10 data sets, with a maximum recording time of 99 h 59 min 59 s at a resolution of 1 s. Simultaneous on-screen display of key parameters facilitates daily work and speeds up result analysis. Weighing 50.6 g and measuring 93 × 45 × 13 mm, the model is significantly more compact, making it well-suited as a handy tool for quick diagnostics.
Included in the set
- USB tester
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT658A |
| Type | USB tester |
| Input and output ports | USB Type-A |
| Data and charging protocol | 2.0 / 3.0 |
| Voltage range | 4~24V DC |
| Voltage resolution | 0.01V |
| Current range | 0.05~3A DC |
| Current resolution | 0.01A |
| Capacity | 0~99999mAh |
| Capacity resolution | 1mAh |
| Energy | 0~1000Wh |
| Circuit equivalent resistance measurement | 1~480Ω |
| USB data cable D+ voltage | 0~3.3V |
| USB data cable D- voltage | 0~3.3V |
| Data storage | 10 sets |
| Maximum recording time | 99h 59min 59sec |
| Time resolution | 1s |
| Fast charging protocol | QC 3.0 |
| Color | White |
| Weight | 50.6g |
| Dimensions | 93mm x 45mm x 13mm |
| Certifications | CE, UKCA |
