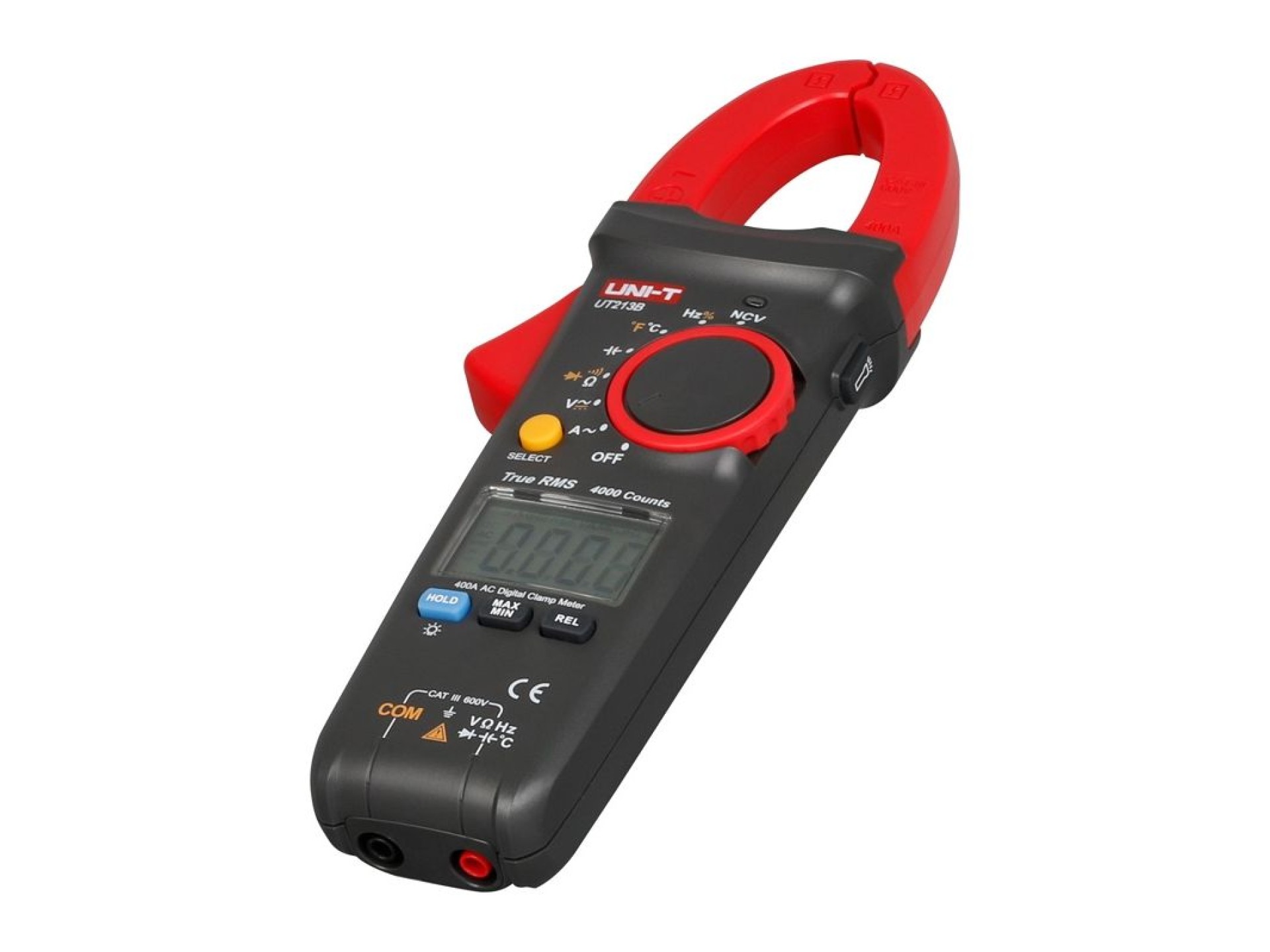

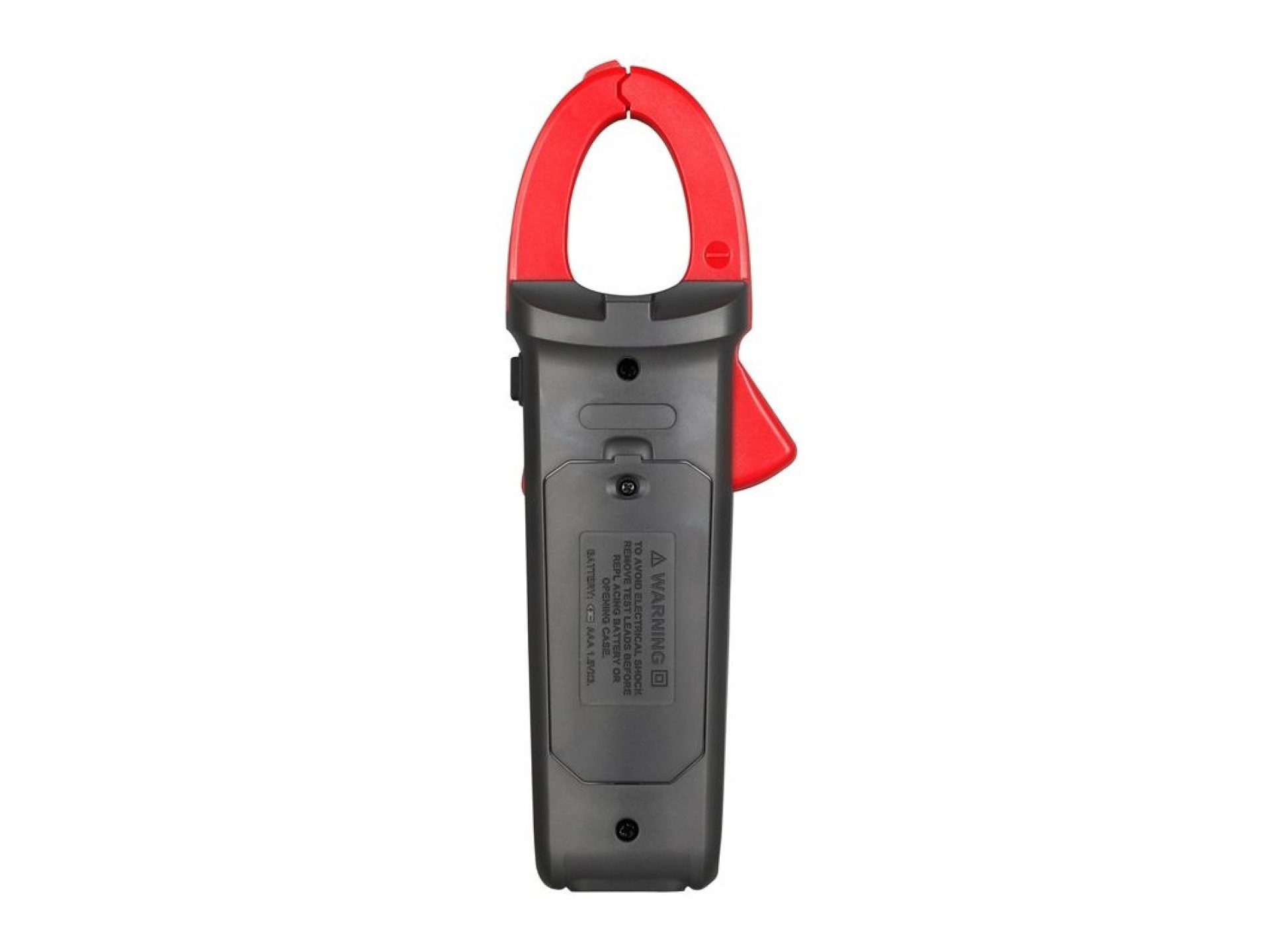

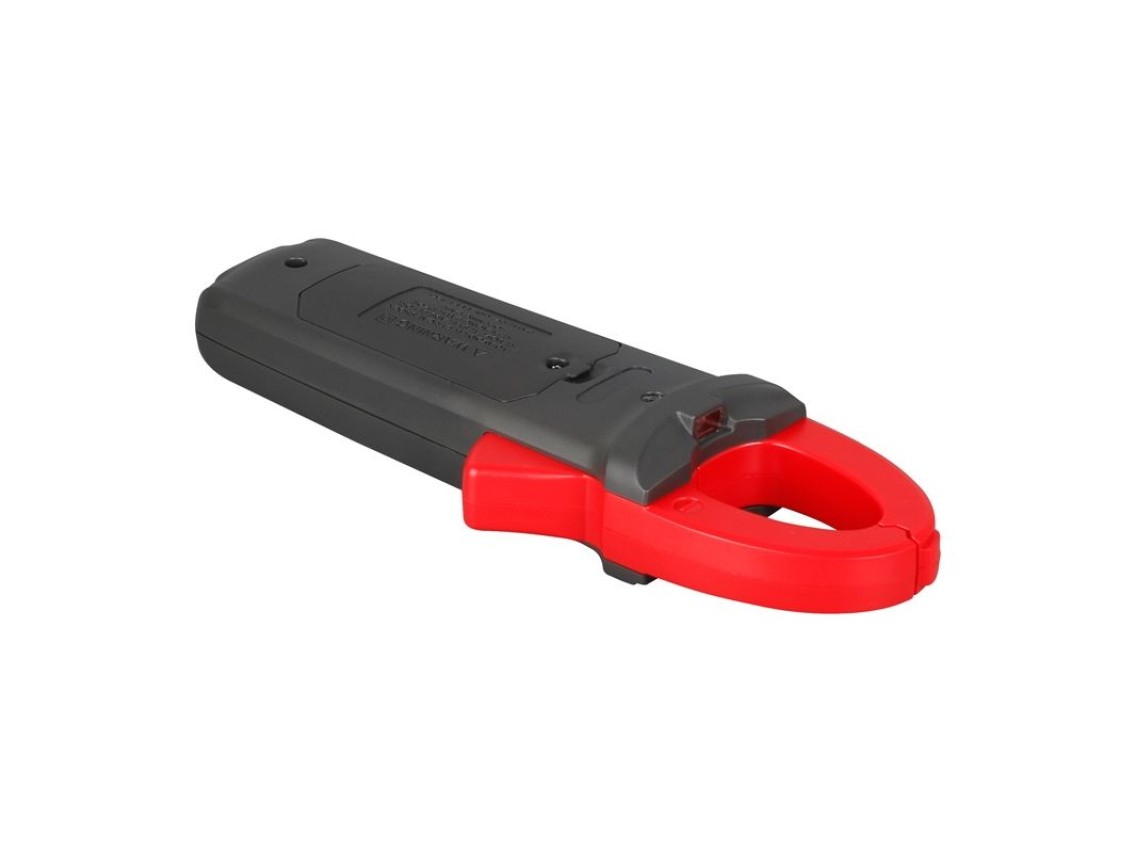

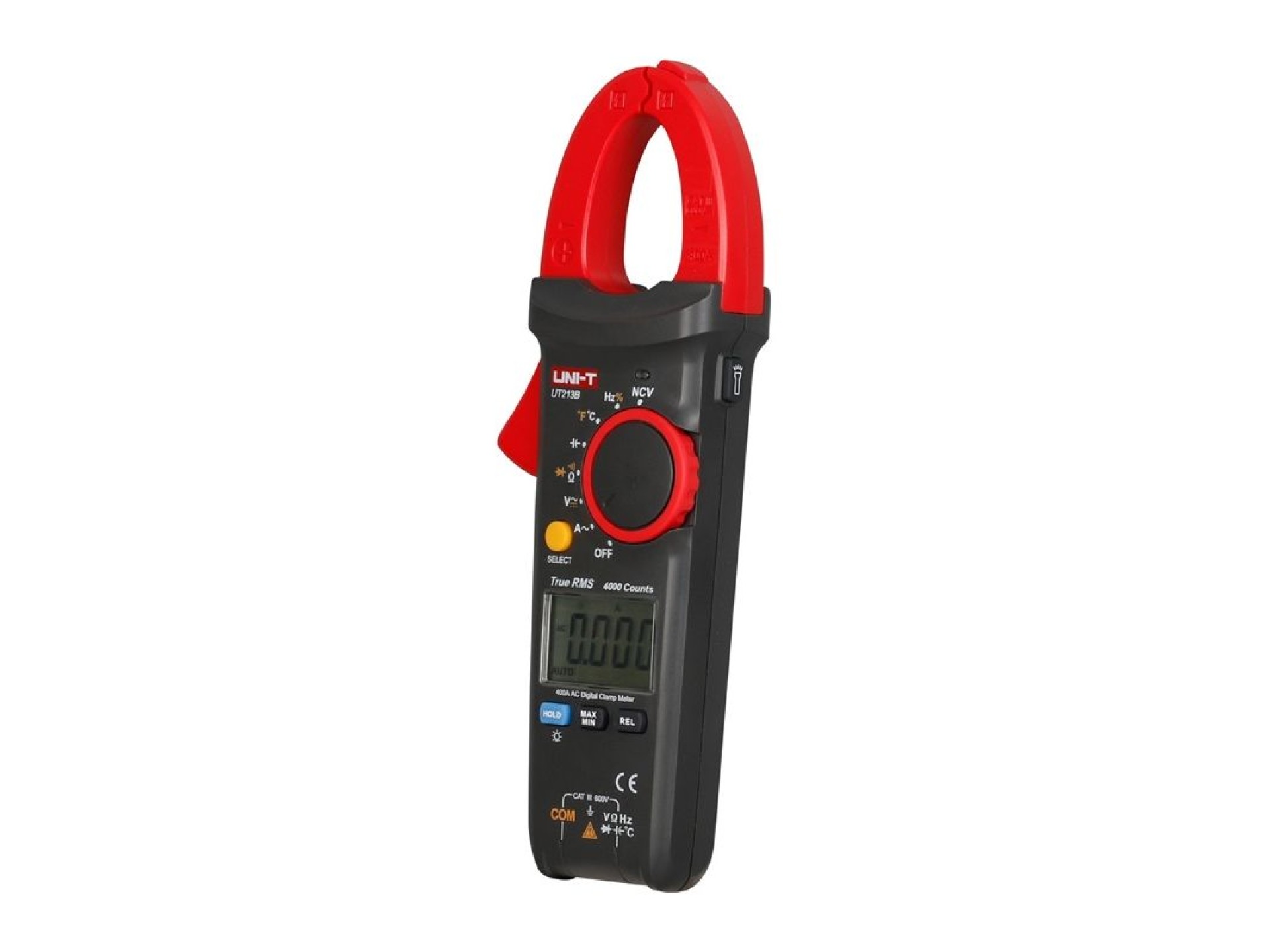

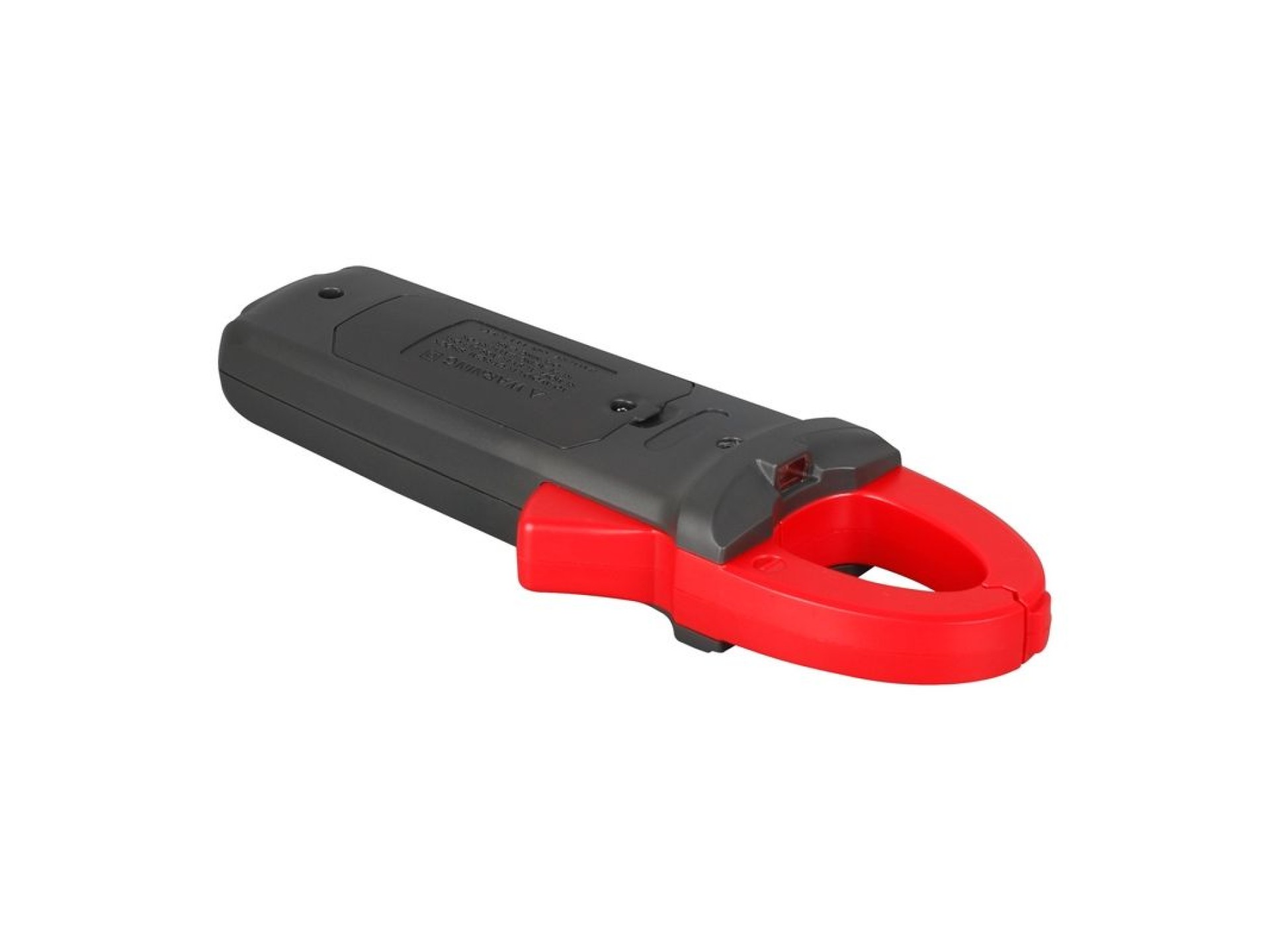

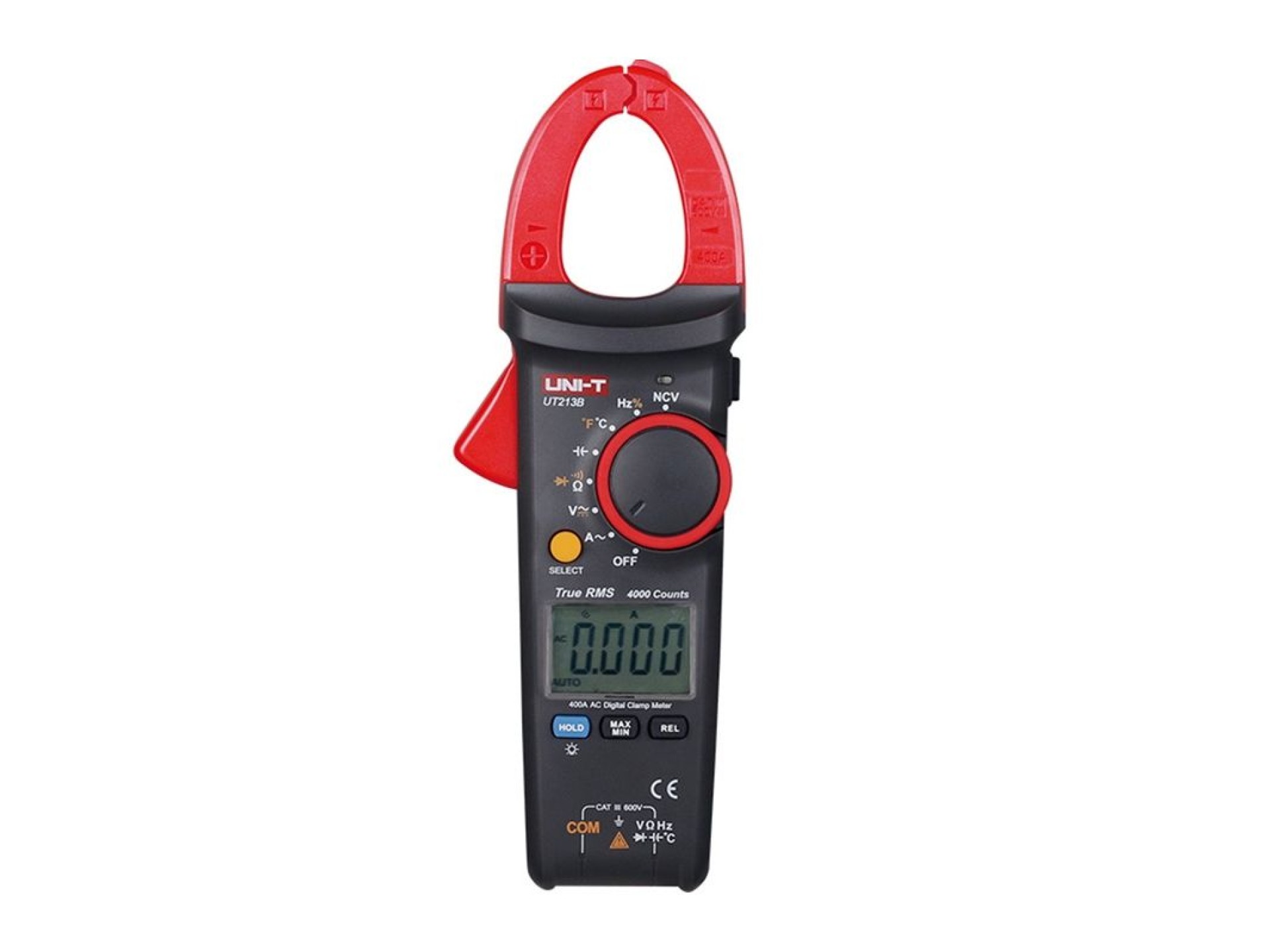

Uni-T UT213B 3rd Generation 400A Digital Clamp Meter
The Uni-T UT213B is a 400A digital clamp meter designed for users who, in addition to standard electrical measurements, also need to monitor temperature. The device complies with the CAT III 600V safety standard and is well-suited for electricians and HVAC/R technicians. The built-in flashlight and easy-to-read display facilitate work in low-light conditions, while the compact housing enhances the convenience of daily use.
More measurement capabilities for everyday use
The UT213B model allows for the measurement of AC current up to 400A, AC/DC voltage up to 600V, resistance up to 40MΩ, capacitance up to 40mF, frequency from 10Hz to 1MHz, and temperature from -40°C to 1000°C and from -40°F to 1832°F. A maximum reading of 4000 and a 30 mm jaw opening ensure convenient operation during daily use. An additional advantage is True RMS, which improves measurement accuracy in more demanding applications.
Extensive features and operational readiness
The device is equipped with a diode test, NCV function, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-off, continuity buzzer, and input protection. Thanks to the included test leads and spot temperature probe, the model is ready for comprehensive diagnostics right out of the box. Powered by three R03 batteries and weighing 280 g, the meter remains handy and convenient for everyday use.
Included
- Clamp meter
- Batteries x3
- Test leads
- Temperature probe
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT213B |
| Type | True RMS clamp meter |
| AC current | 400A ±(1.8%+9) |
| AC voltage | 600V ±(1.2%+5) |
| DC voltage | 600V ±(0.8%+1) |
| Resistance | 40MΩ ±(1%+2) |
| Capacitance | 40mF ±(4%+5) |
| Frequency | 10Hz ~ 1MHz ±(0.1%+4) |
| Temperature | -40°C ~ 1000°C ±(1%+3) |
| Maximum reading | 4000 |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, Max/Min, LCD backlight, flashlight, automatic range switching, auto power off |
| Jaw opening | 30 mm |
| Power supply | 3x 1.5V battery (R03) |
| Dimensions | 220 x 75 x 40 mm |
| Weight | 280 g |
| Safety | CAT III 600V |
| Certifications | CE, UKCA, cETLus |
