EAN: 6935750511718

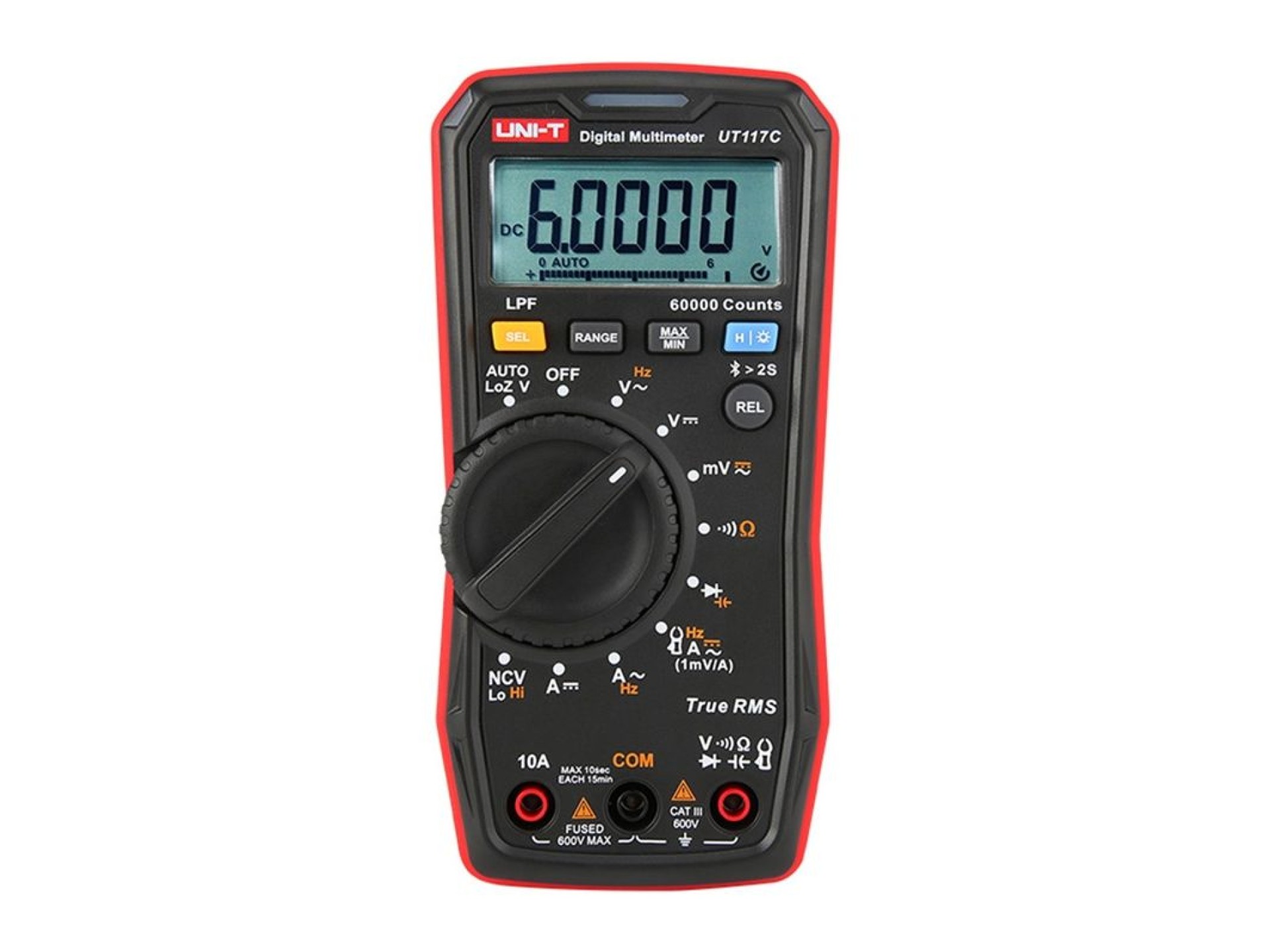

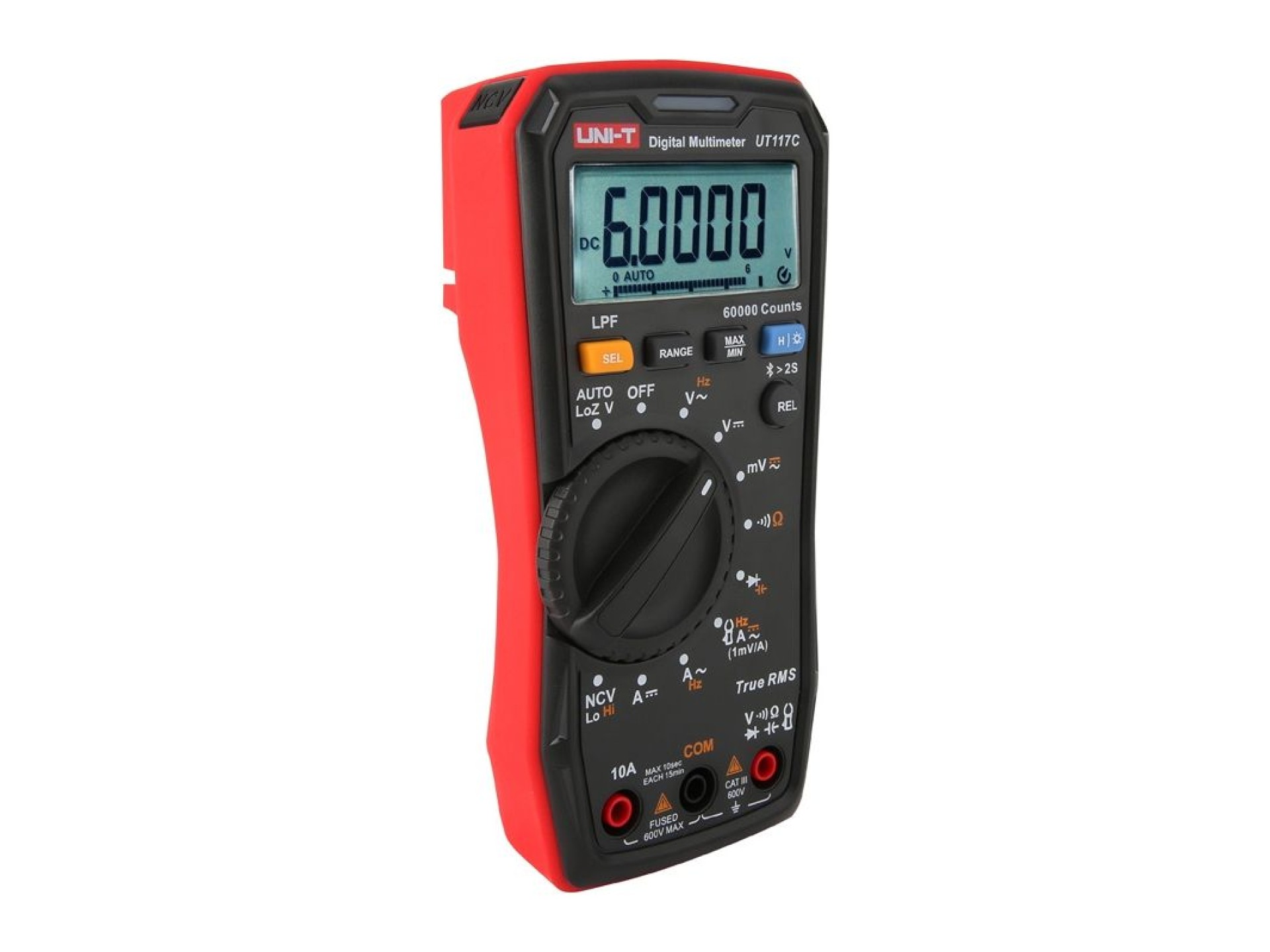

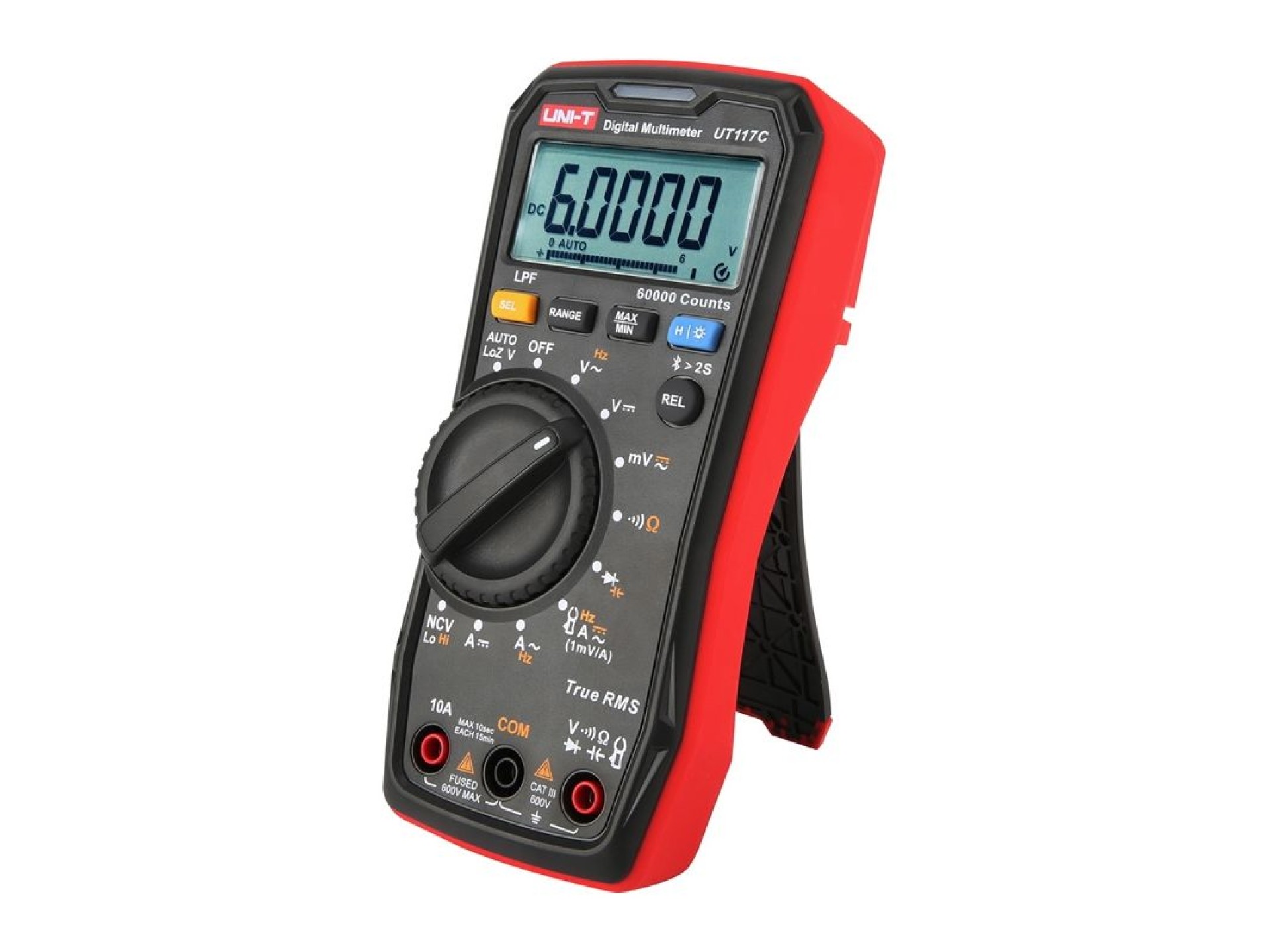

Uni-T UT117C Digital Multimeter
The Uni-T UT117C is a precision True RMS digital multimeter that combines a compact design with a wide range of applications and high measurement accuracy. The device measures AC/DC voltage up to 600 V, AC/DC current up to 10 A, as well as resistance, capacitance, and frequency. With a maximum reading of 60,000 and fast response times, this model is well-suited for electricians and electronics technicians who require accurate results and user-friendly operation.
Advanced features for demanding measurements

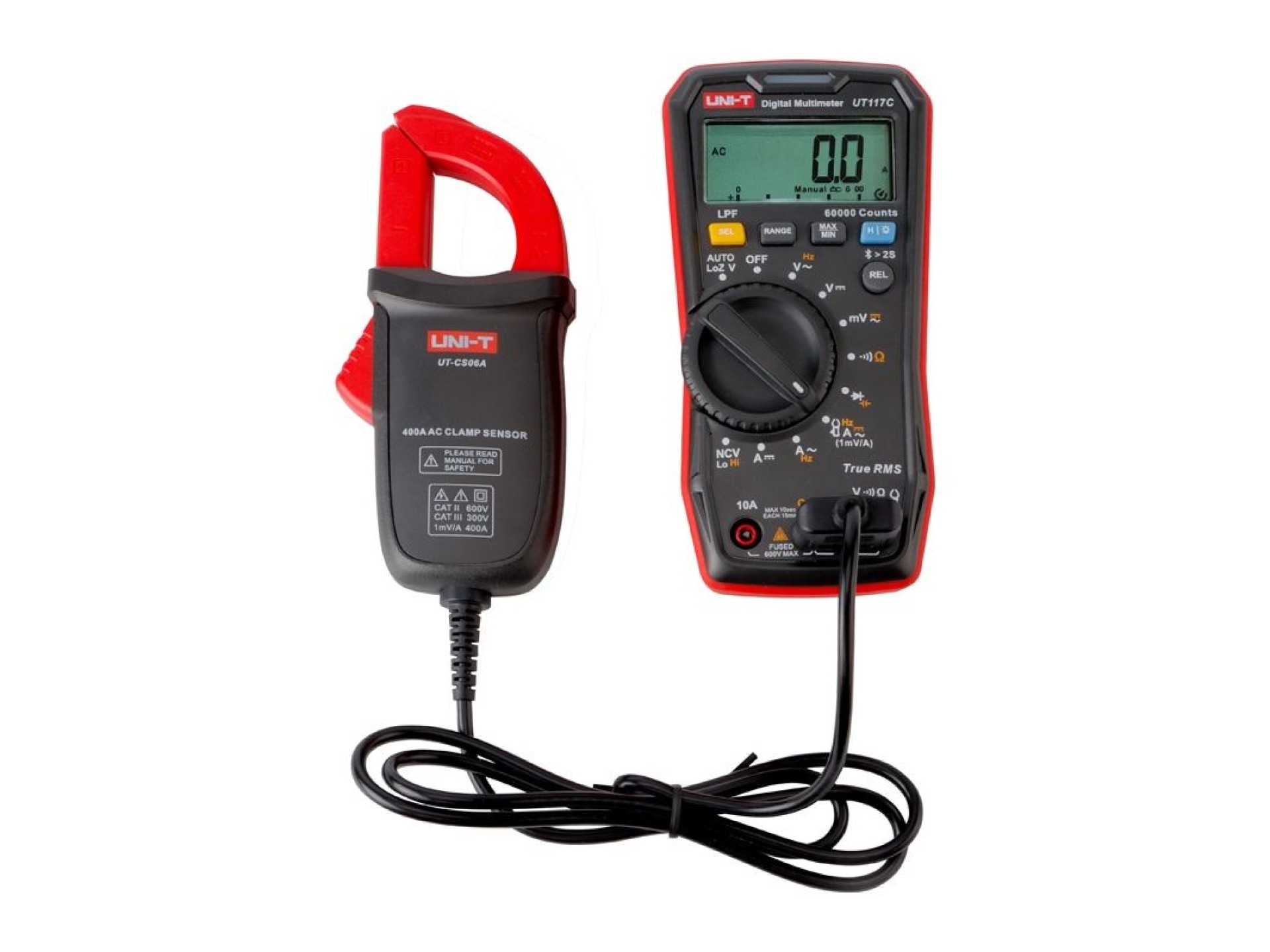

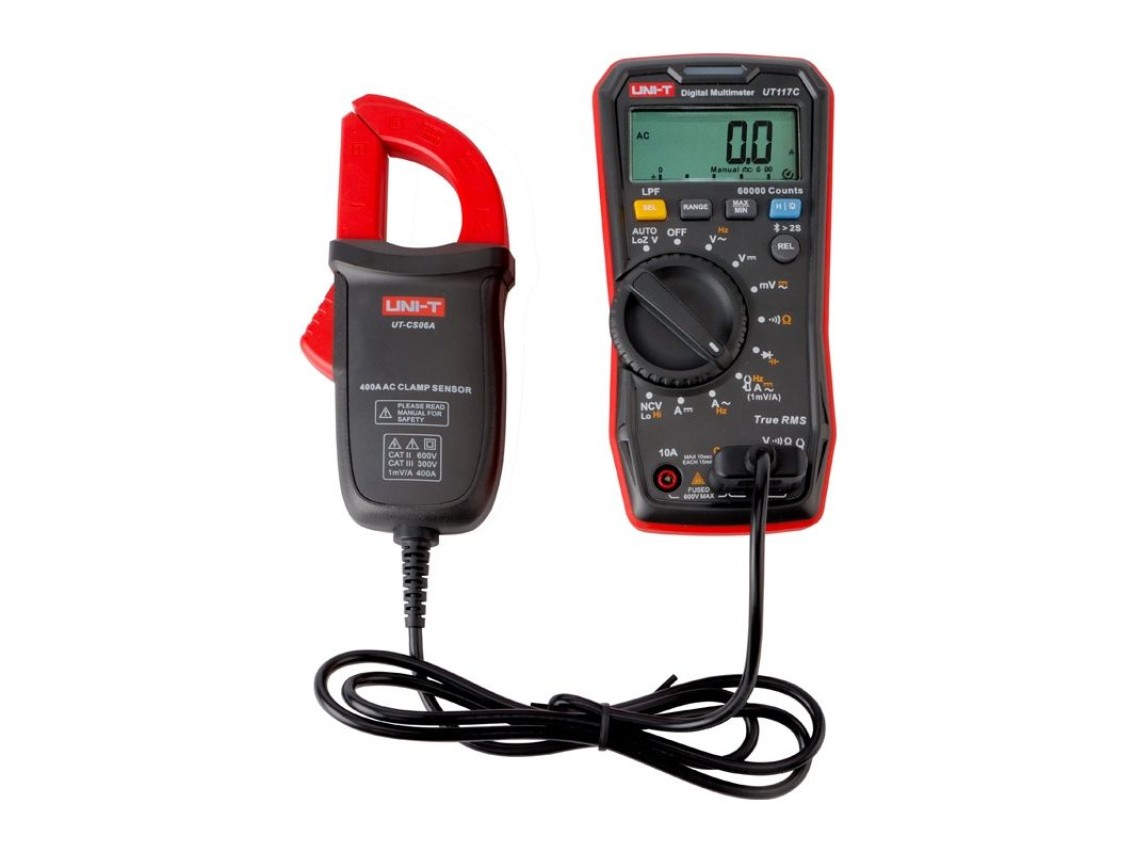

The UT117C is equipped with LoZ, LPF, and Auto Volt functions, which enhance usability in various measurement conditions. It also features Bluetooth, support for external current clamps, and non-contact voltage detection (NCV). The multimeter also offers continuity and diode testing, Data Hold, Max/Min mode, relative mode, and automatic and manual range switching, making it better suited for various service and installation tasks.
Rugged construction and ease of use

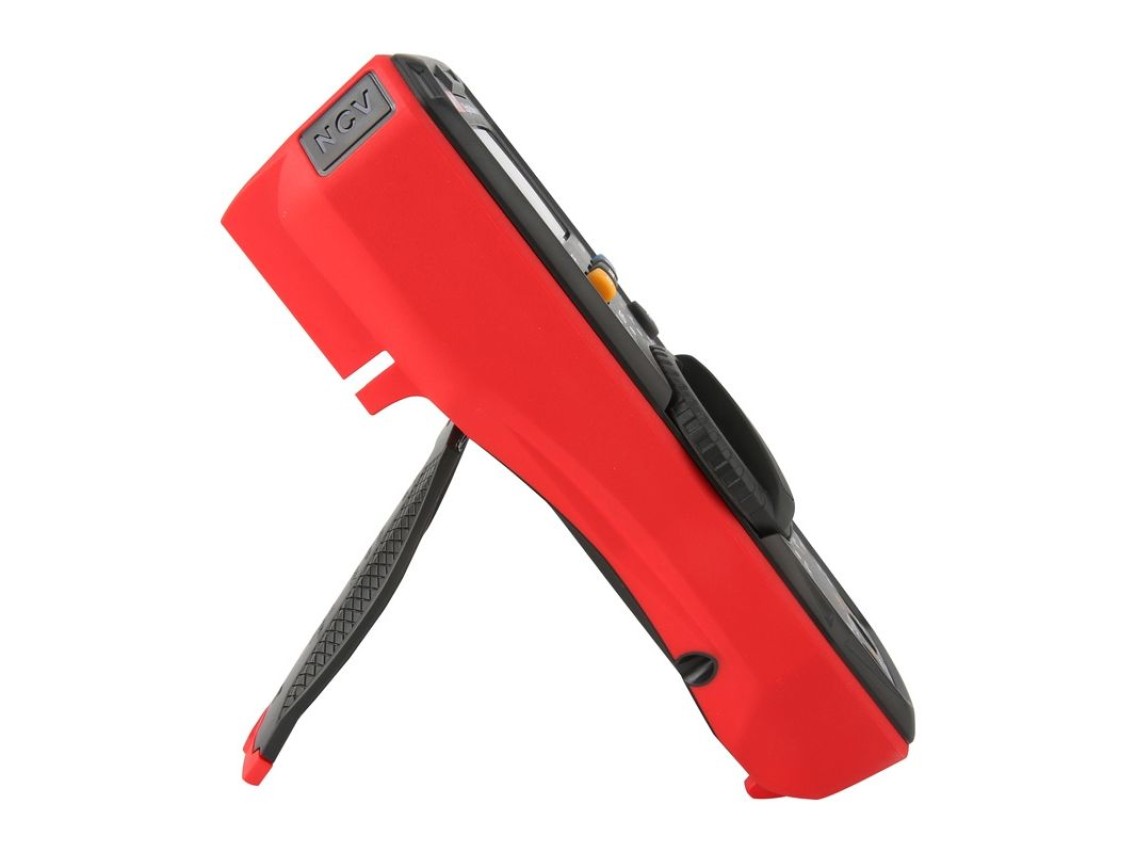

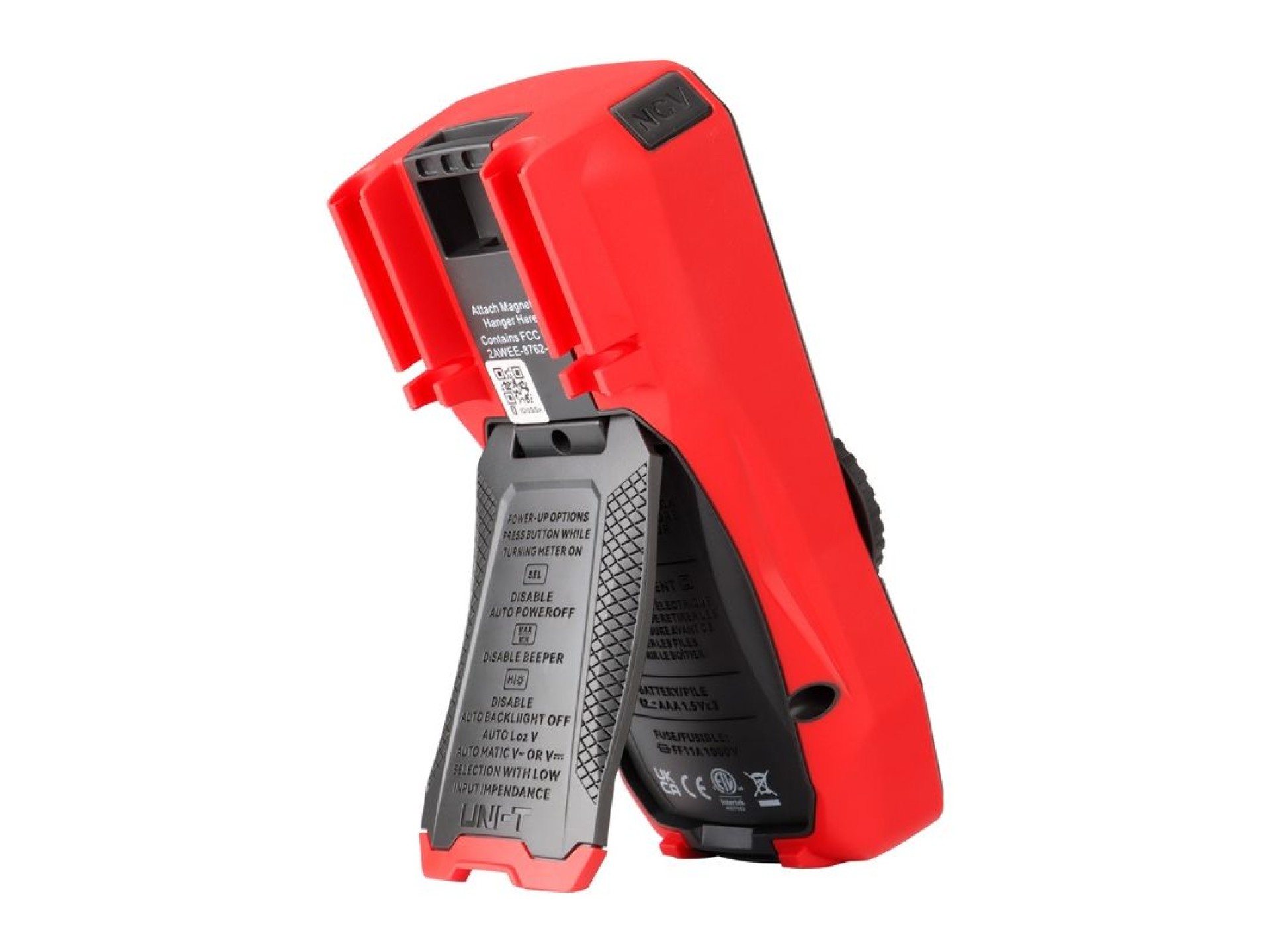

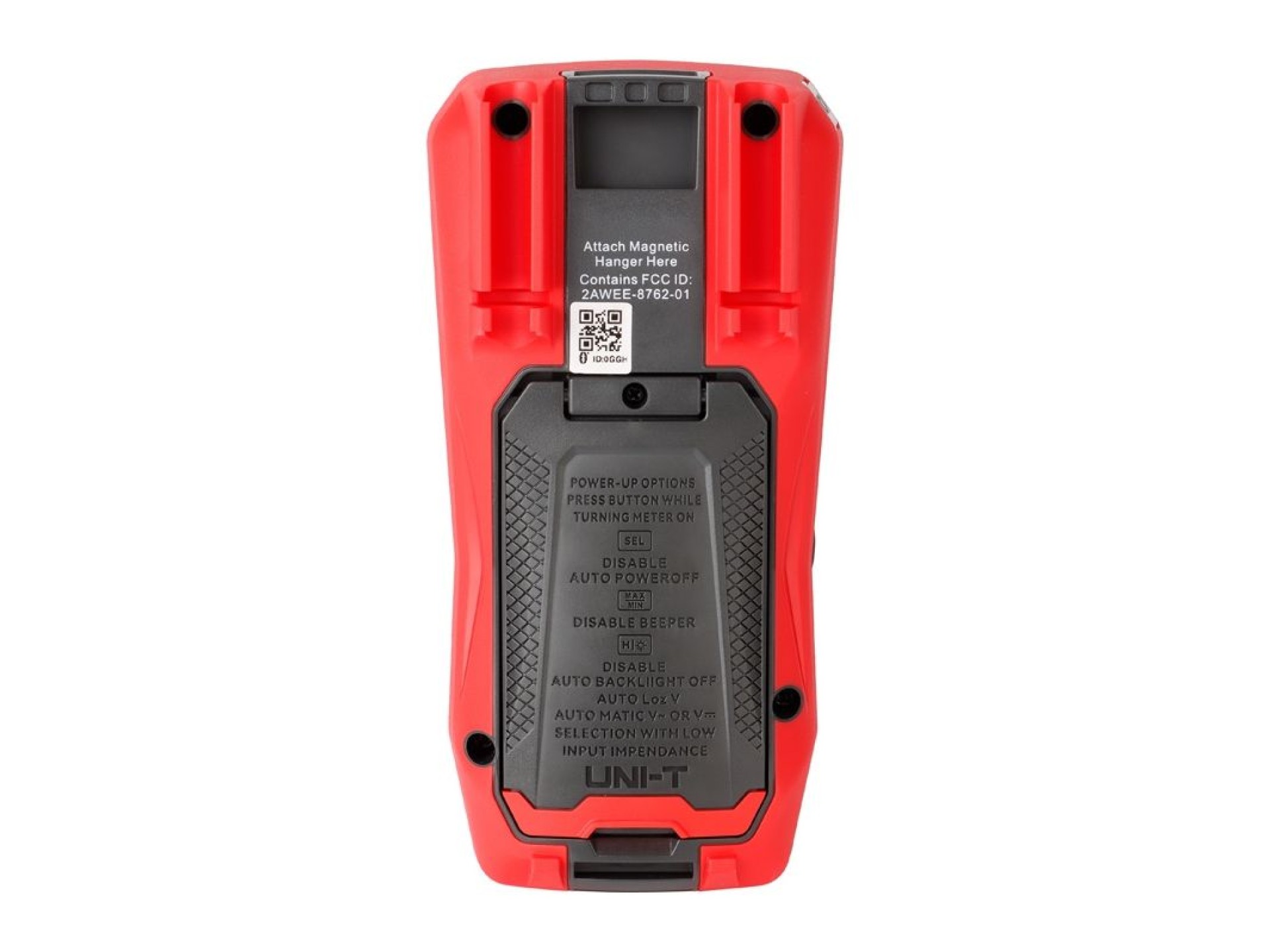

The UT117C is designed for daily use in the field and in the workshop. The device can withstand a drop from a height of 2 meters, features audible and visual alarms, and provides a high-voltage warning, enhancing safety during measurements. Additional features include an LCD backlight, auto-off, a low-battery indicator, and the option to use an optional magnetic holder, all of which contribute to greater ease of use.

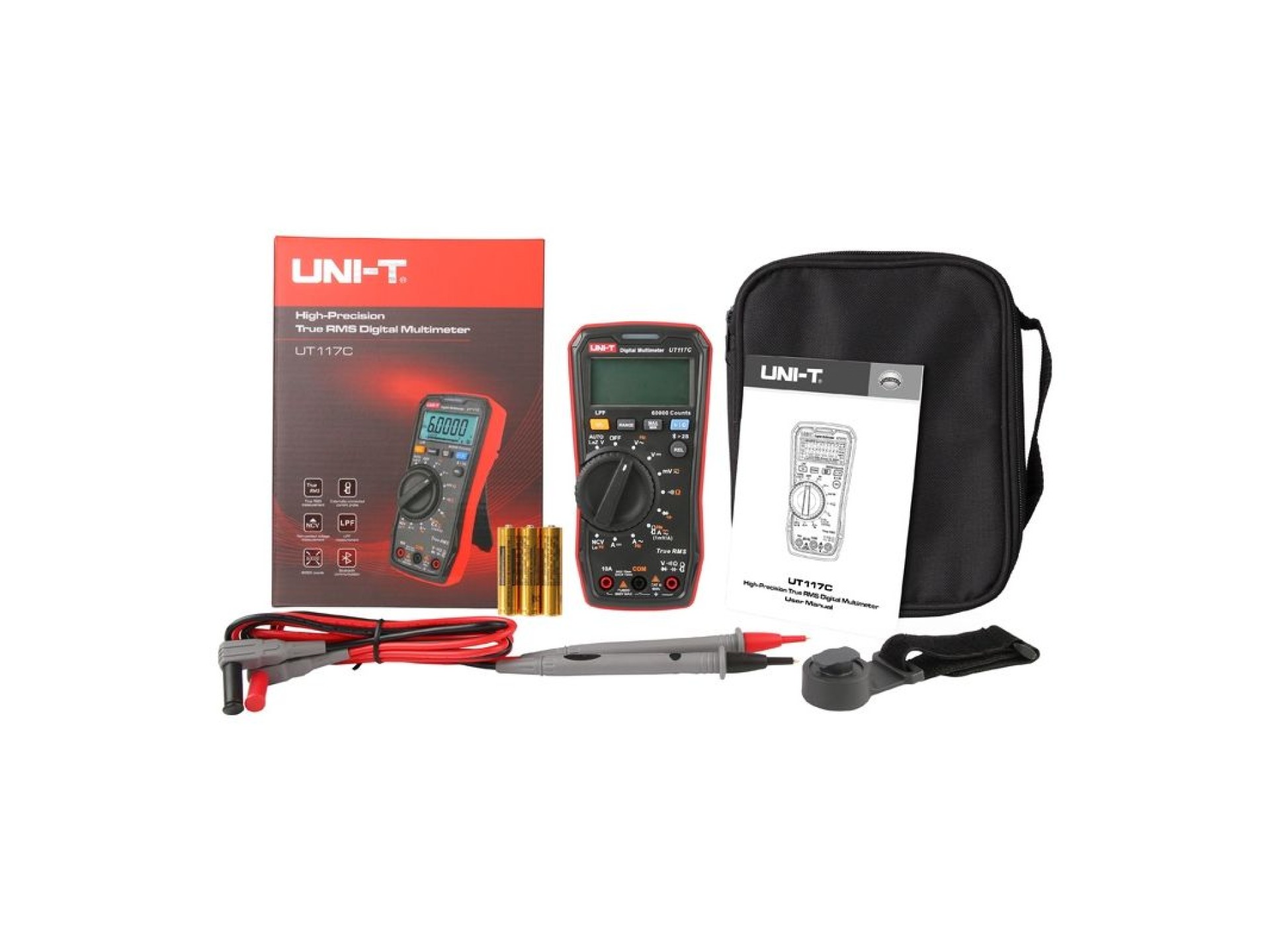

Included
- Digital multimeter
- Test leads
- 3 AAA batteries
- Magnetic strap
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT117C |
| Type | True RMS digital multimeter |
| AC voltage | 600.00 mV / 6.0000 V / 60.000 V / 600.00 V ±(1% + 30) |
| DC voltage | 600.00 mV / 6.0000 V / 60.000 V / 600.00 V ±(0.3% + 10) |
| AC current | 6.0000 A / 10.000 A ±(1.5% + 30) |
| DC current | 6.0000 A / 10.000 A ±(0.5% + 10) |
| Auto Volt LoZ | 600.0V ±(1% + 3) |
| AC LPF Voltage | 600.0V ±(2% + 3) |
| Frequency | 99.99Hz / 999.9Hz / 9.999kHz / 50.00kHz ±(0.01% + 3) |
| Resistance | 600.00Ω~6.0000MΩ ±(0.5% + 5), 40.000MΩ ±(3% + 5) |
| Capacitance | 1000 nF / 10.00 μF / 100.0 μF ±(1.9% + 5), 1000 μF / 10,000 μF ±(2.5% + 5) |
| Maximum display reading | 60,000 |
| Clamp factor | 1 mV/A |
| Functions | NCV, high voltage warning, audible and visual alarms, continuity test, diode test, Data Hold, Max/Min, relative mode, automatic and manual range switching, LCD backlight, True RMS, external current clamp support, low battery indicator |
| Bluetooth | Yes |
| Auto Backlight Off | After 5 minutes |
| Auto Power Off | After approximately 15 minutes |
| Drop Test | 2 m |
| Voltage Category | CAT III 600V |
| Power supply | 1.5V AAA x3 |
| Weight | Approx. 346 g |
| Dimensions | 169 mm x 84 mm x 48.8 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
