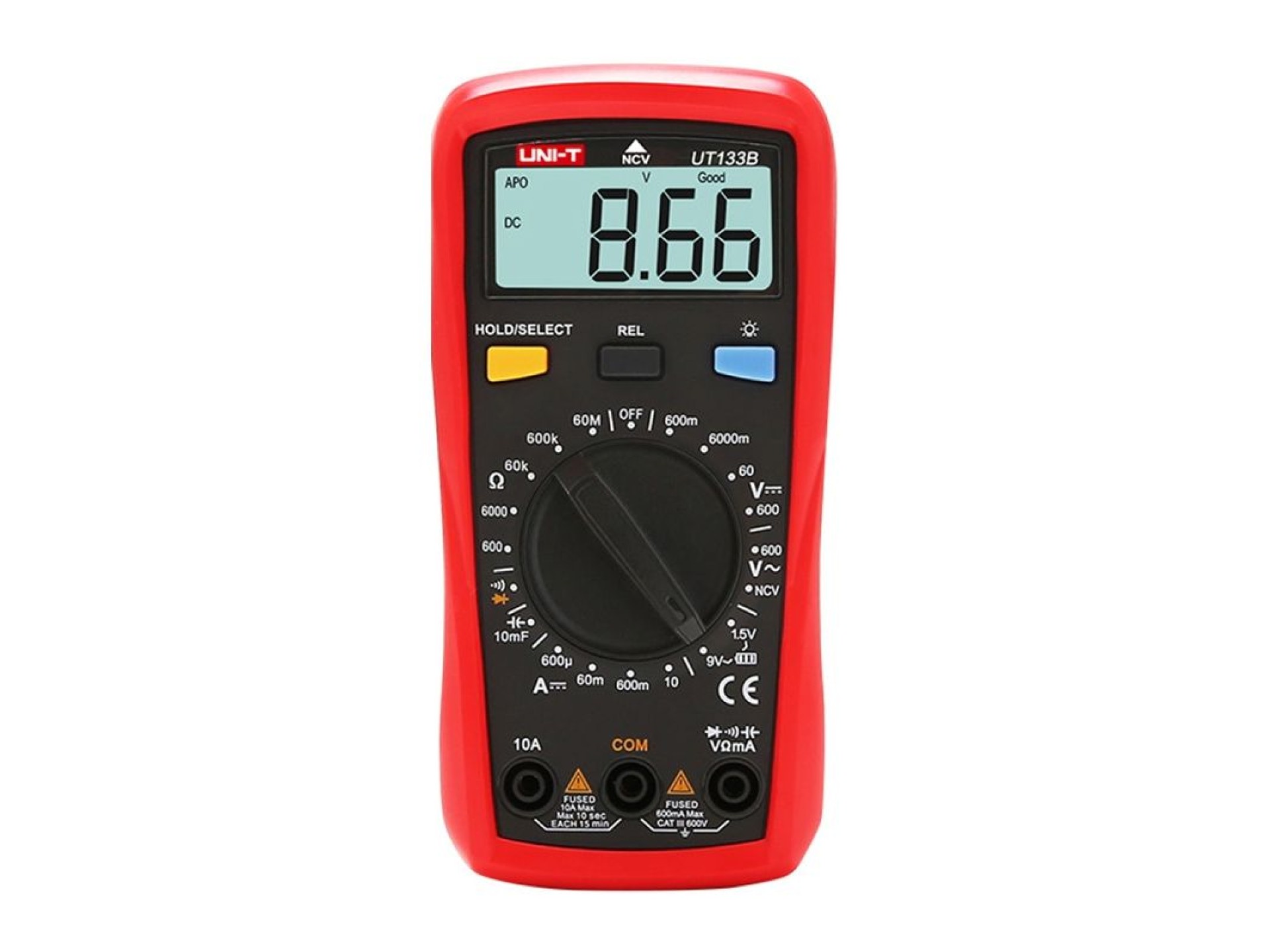

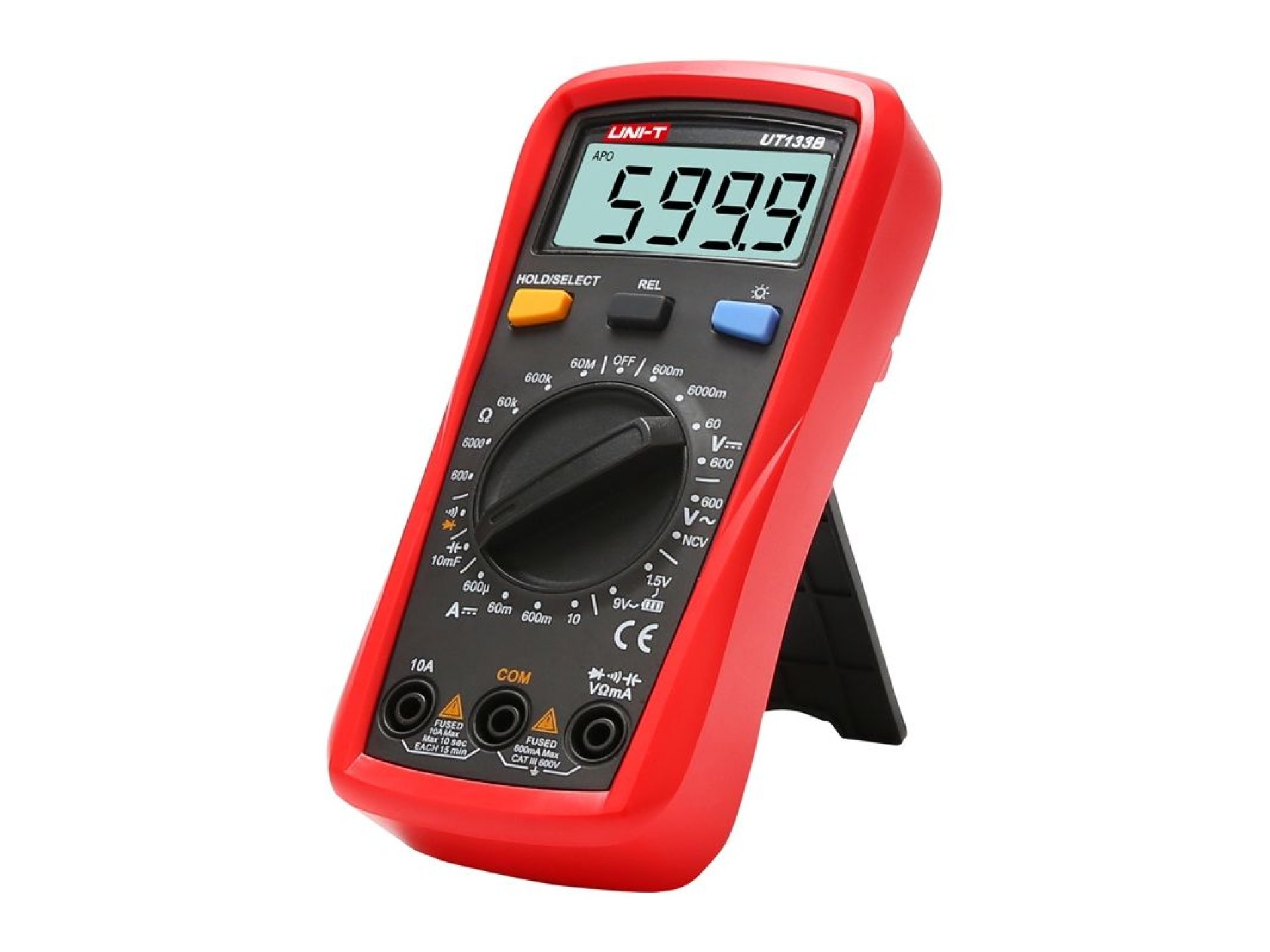

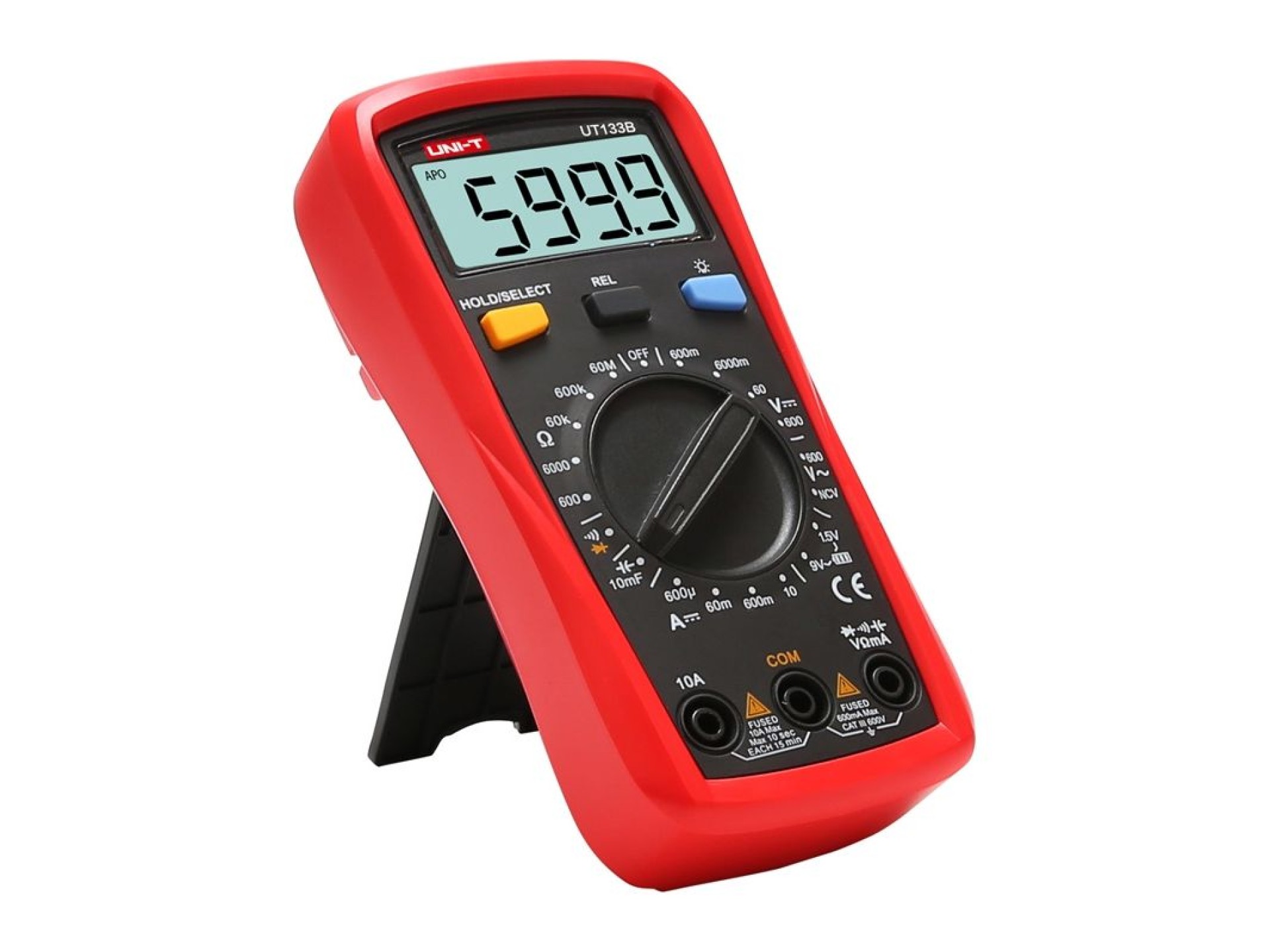

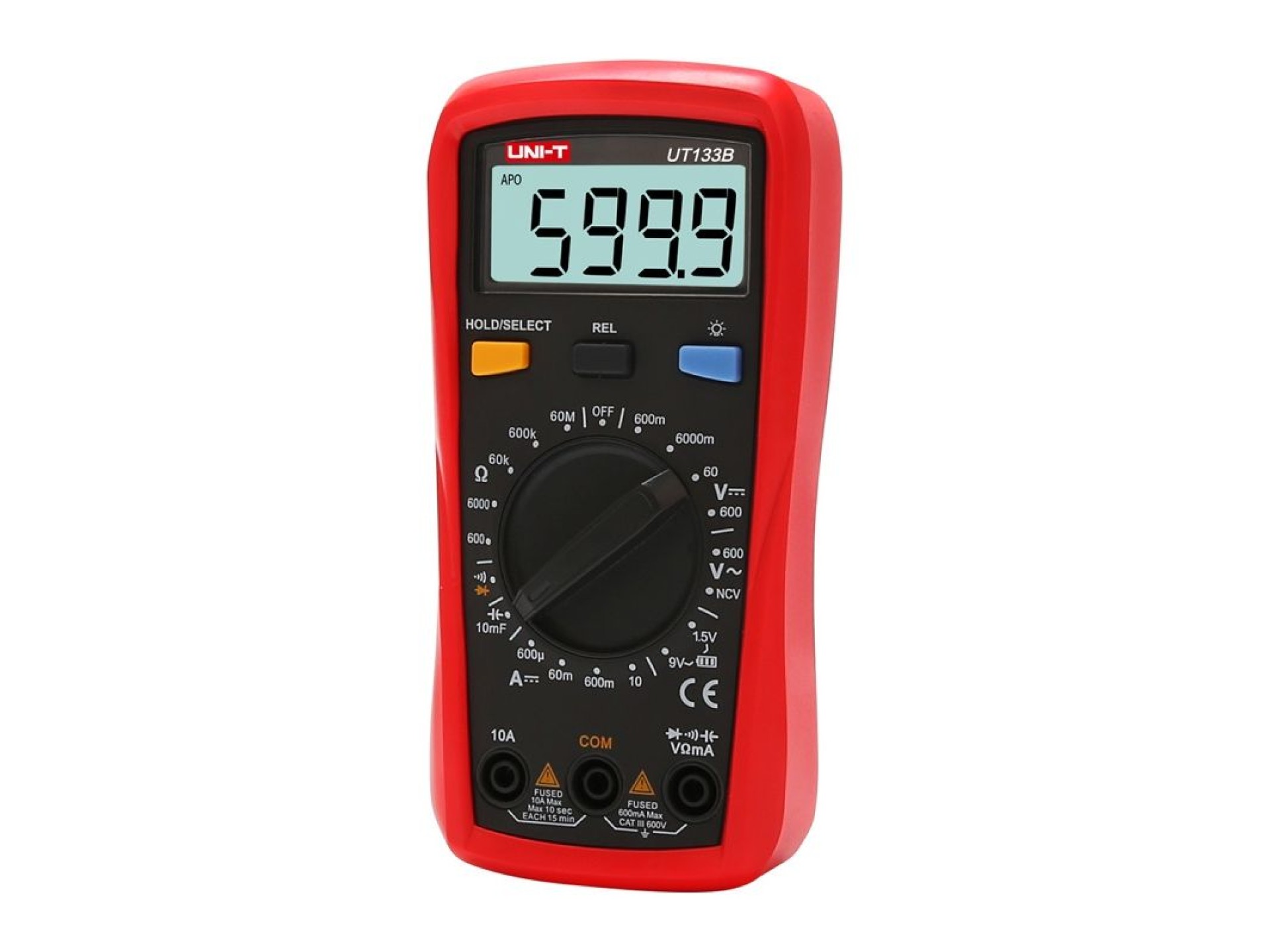

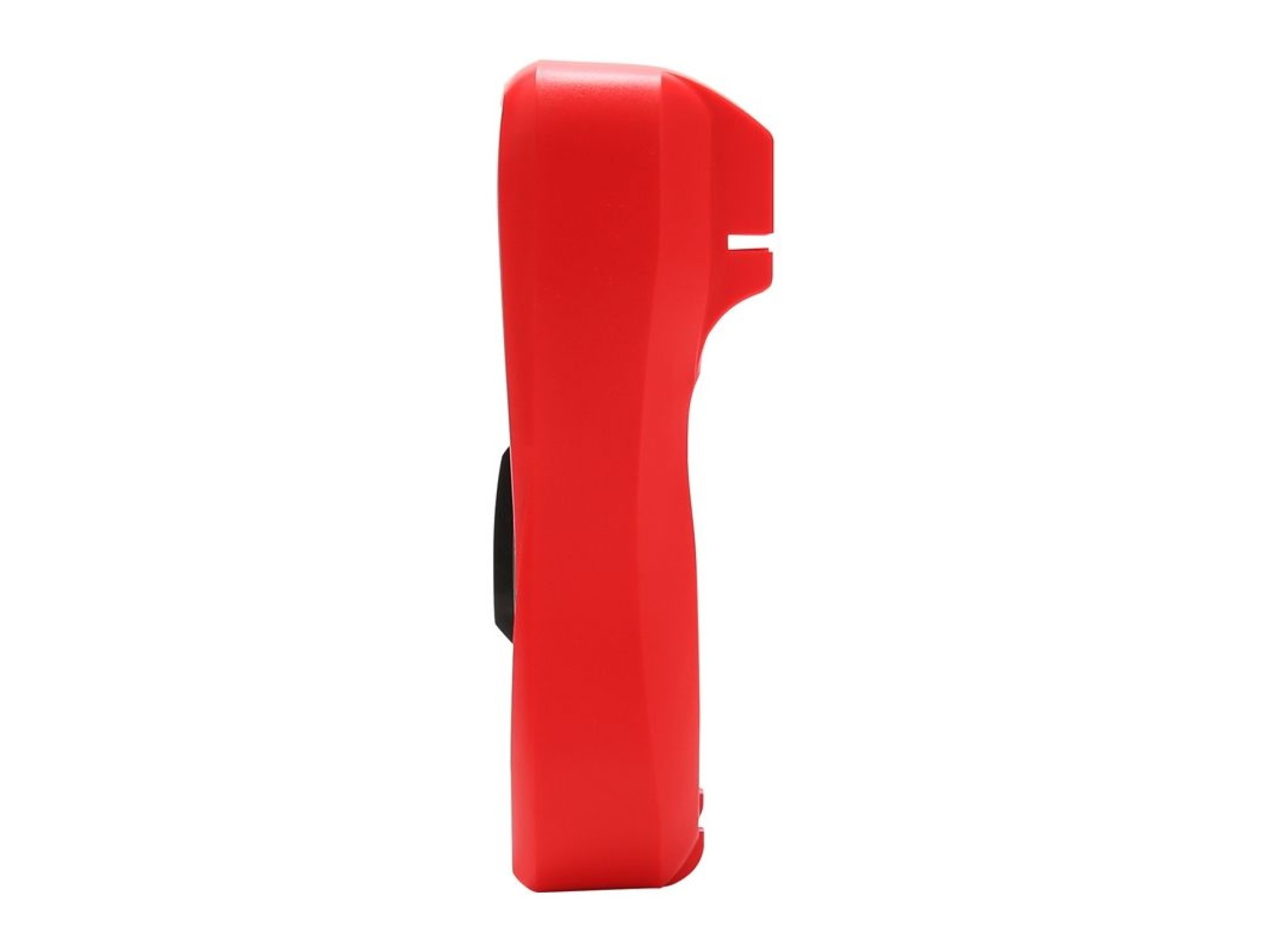

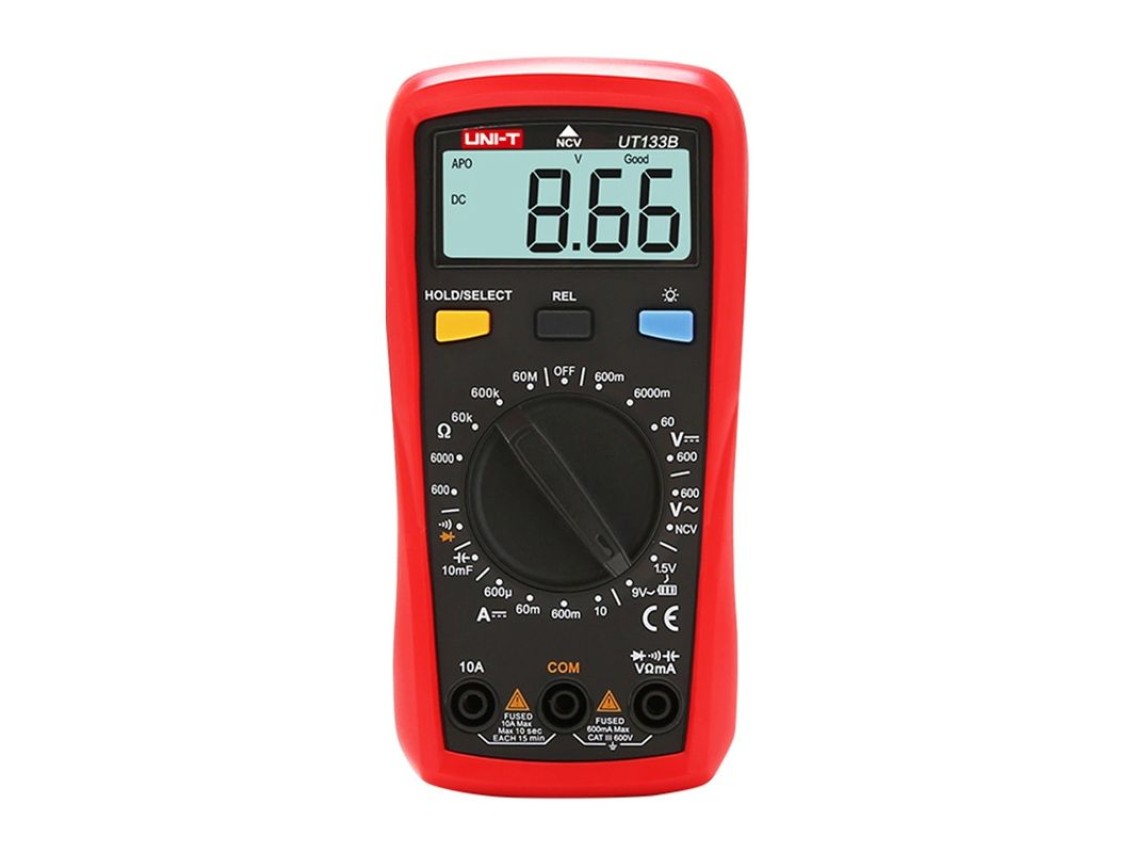

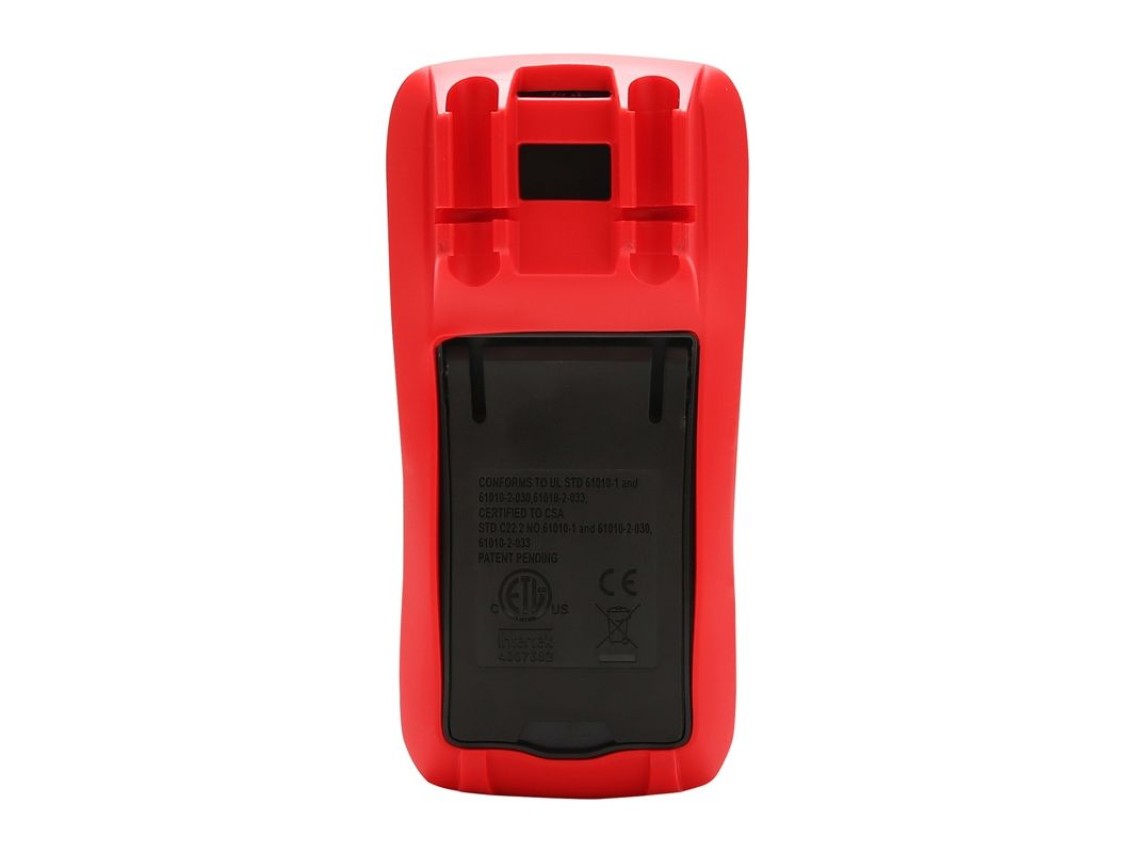

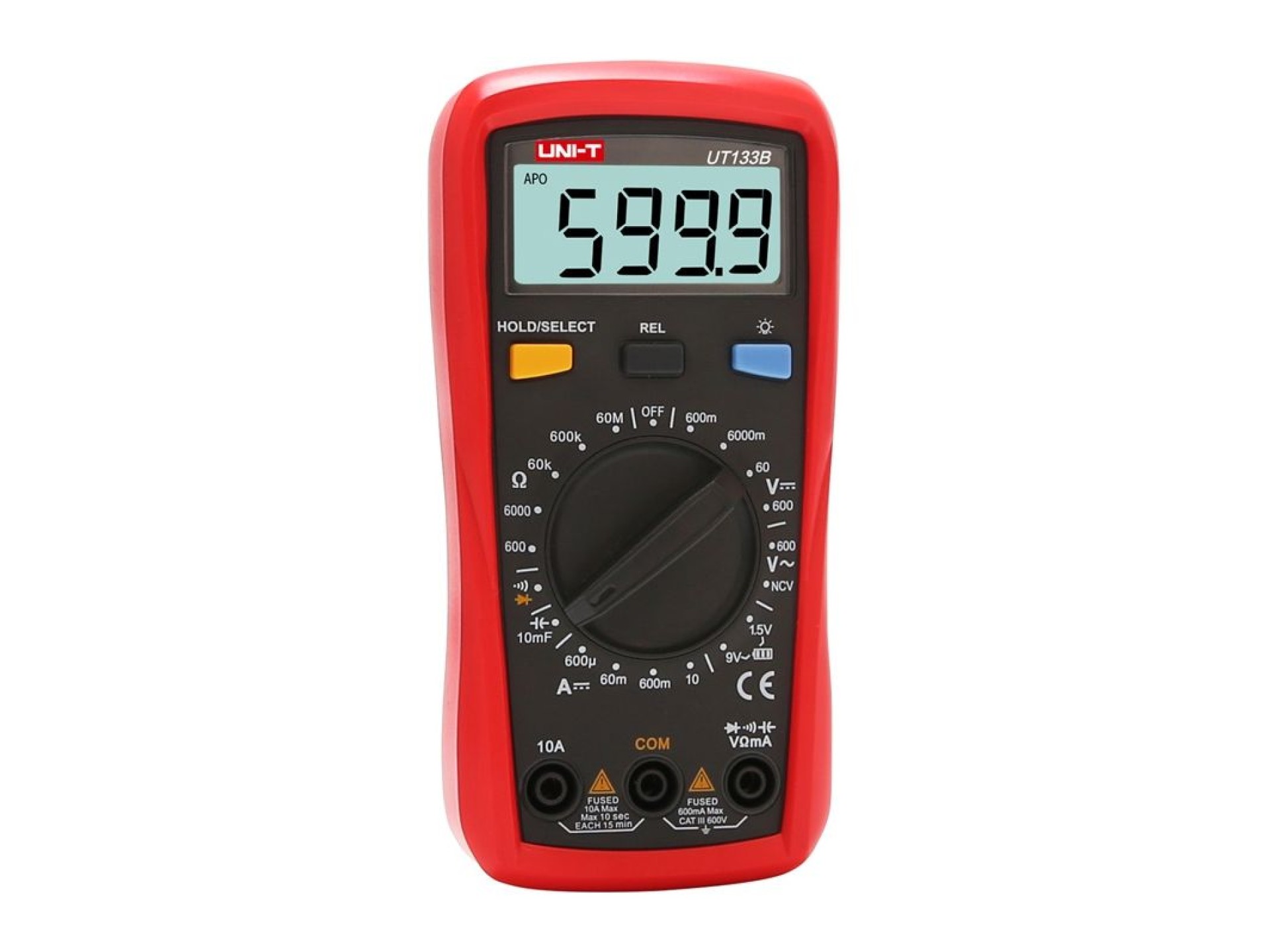

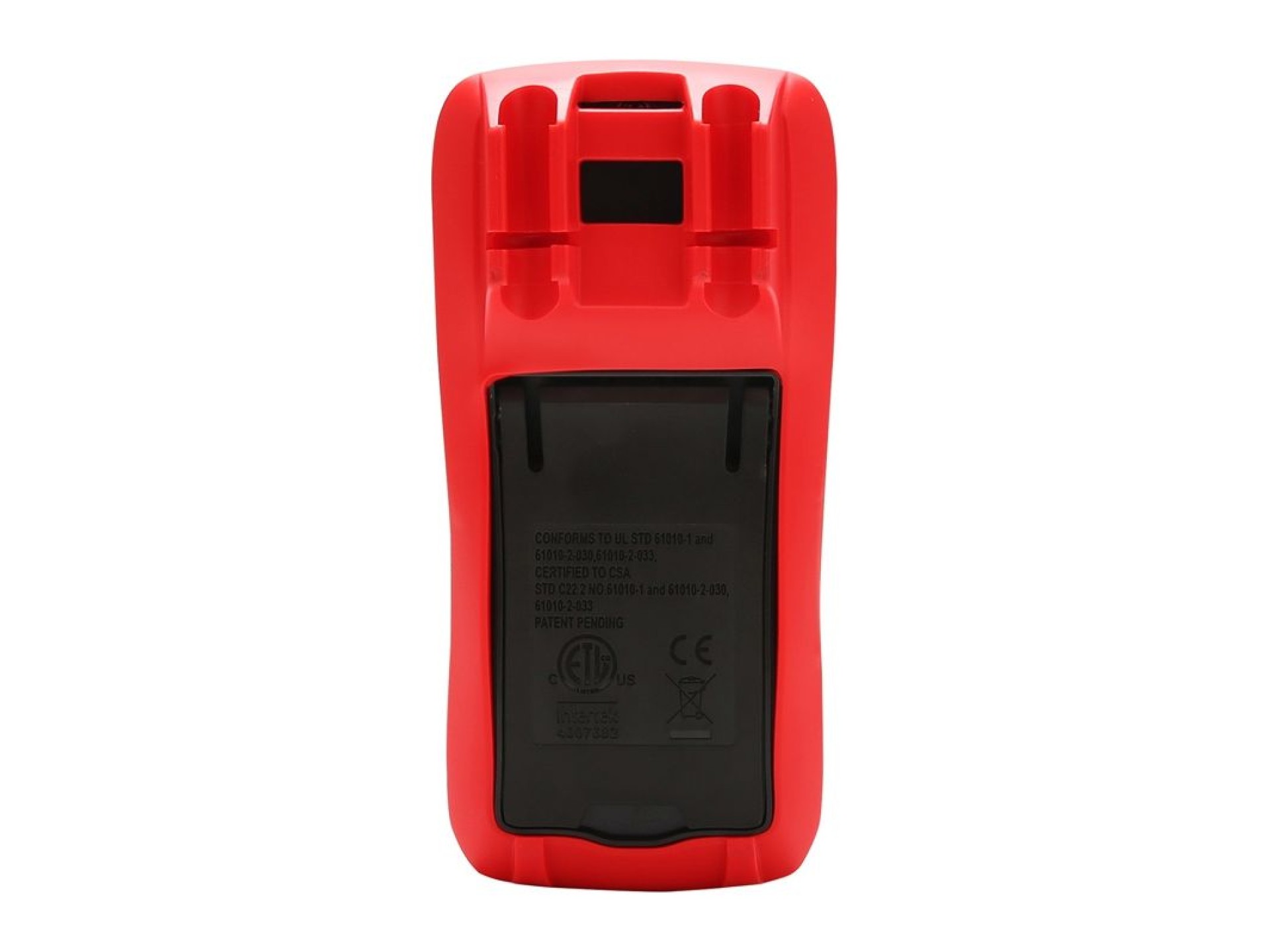

Uni-T UT133B Handheld Digital Multimeter
The Uni-T UT133B is a handy digital multimeter designed for everyday measurements in the electrical industry, combining a compact design with practical diagnostic features. The device uses a smart ADC chip, features a clear display, and is designed for comfortable use during regular operation. An additional advantage is its resistance to drops from heights of up to 2 meters, which increases its durability in daily use.
Practical measurements and battery testing function
The UT133B model allows for the measurement of DC voltage up to 600 V, AC voltage up to 600 V, DC current up to 10 A, resistance up to 60 MΩ, and capacitance up to 9.999 mF. What sets it apart from the UT133A model is its 1.5 V and 9 V battery test function, which facilitates quick checking of the most commonly used cells. Manual range switching allows the user to independently select measurement settings for a specific application.
Features supporting convenient and safe operation
The UT133B is equipped with a diode test, continuity buzzer, NCV function, Data Hold, LCD backlight, and automatic shut-off. The UT133 series also offers an audible alarm for voltage or current overload, a high-voltage warning, and features that enhance workplace safety. With a CAT II 600V safety rating, this model is well-suited for basic measurement tasks.
Included
- Handheld digital multimeter
- Test leads
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT133B |
| Type | Digital multimeter |
| DC Voltage | 600mV / 6000mV / 60V / 600V ±(0.5%+3) |
| AC voltage | 600V ±(1.2%+3) |
| DC current | 600uA / 60mA / 600mA / 10A ±(1.0%+3) |
| Resistance | 600Ω / 6000Ω / 60kΩ / 600kΩ / 60MΩ ±(0.8%+2) |
| Capacitance | 9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 99.99 µF / 999.9 µF / 9.999 mF ±(4.0%+5) |
| Battery test | 1.5 V / 9 V ±(1.0%+2) |
| Maximum reading | 6000 |
| Range selection | Manual |
| Functions | Diode test, continuity buzzer, NCV, Data Hold, LCD backlight, auto power off, overvoltage or overcurrent alarm, high voltage warning |
| Safety | CAT II 600V |
| Drop test | 2 m |
| Power supply | 2x 1.5V battery (R03) |
| Weight | 255 g |
| Dimensions | 155 mm x 76.5 mm x 49 mm |
| Display dimensions | 56.8 mm x 36.1 mm |
