EAN: 6935750516164

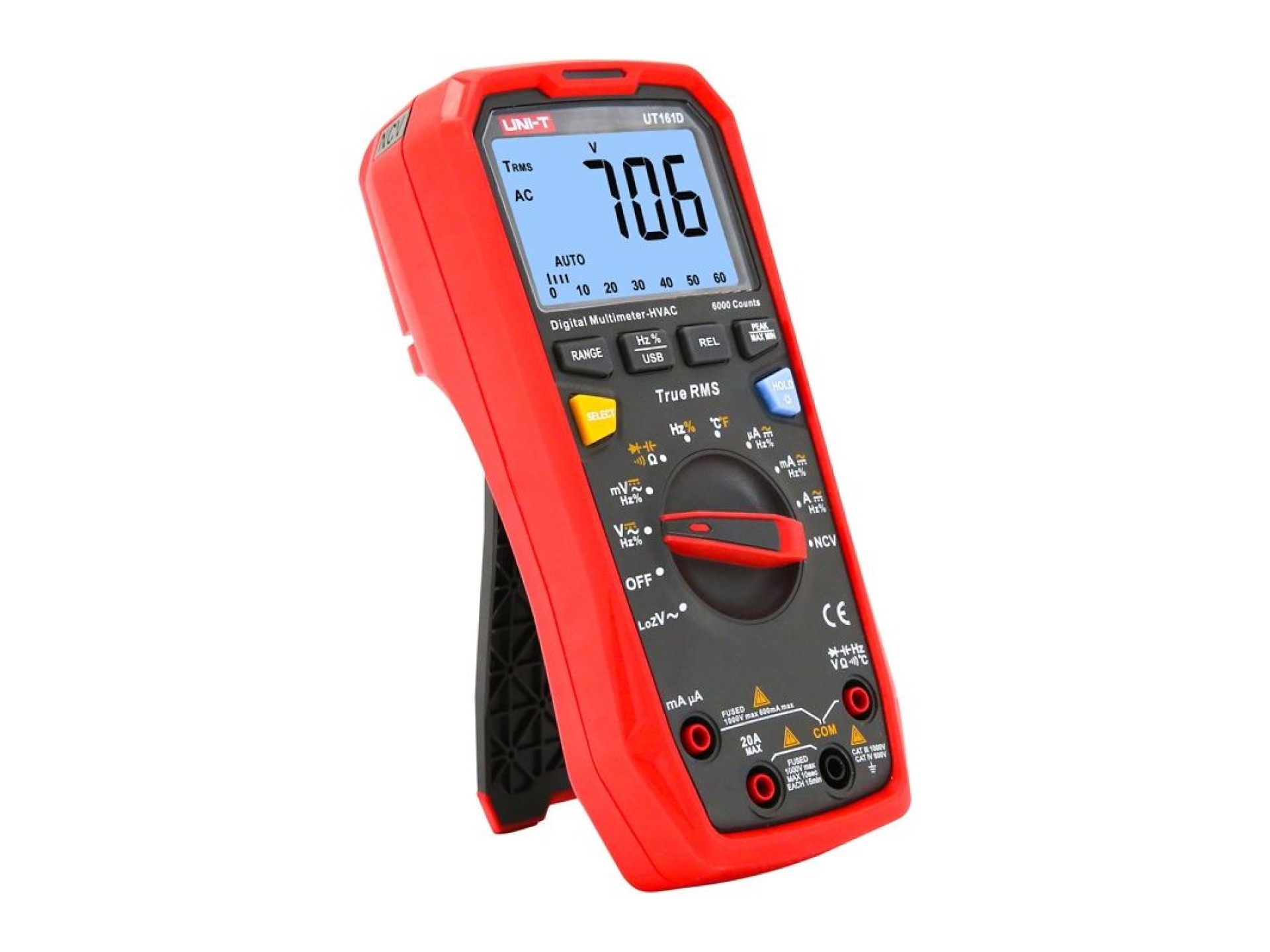

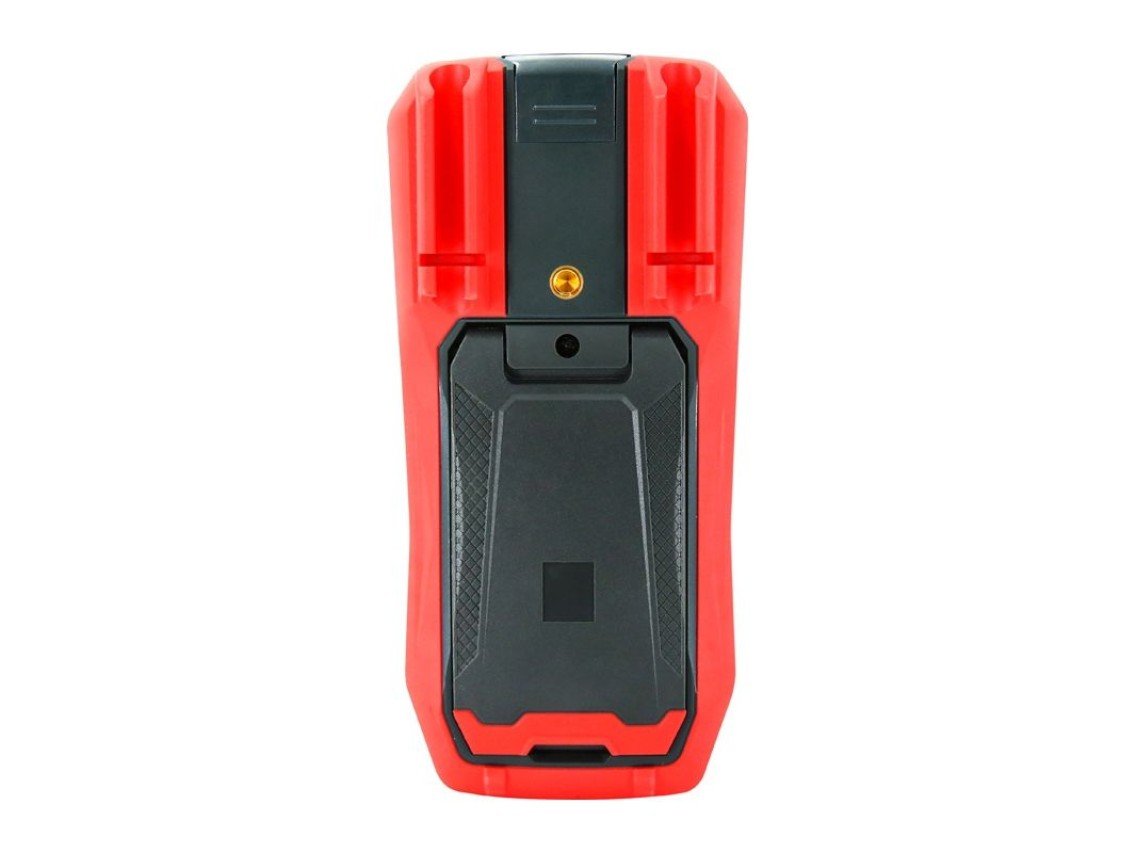

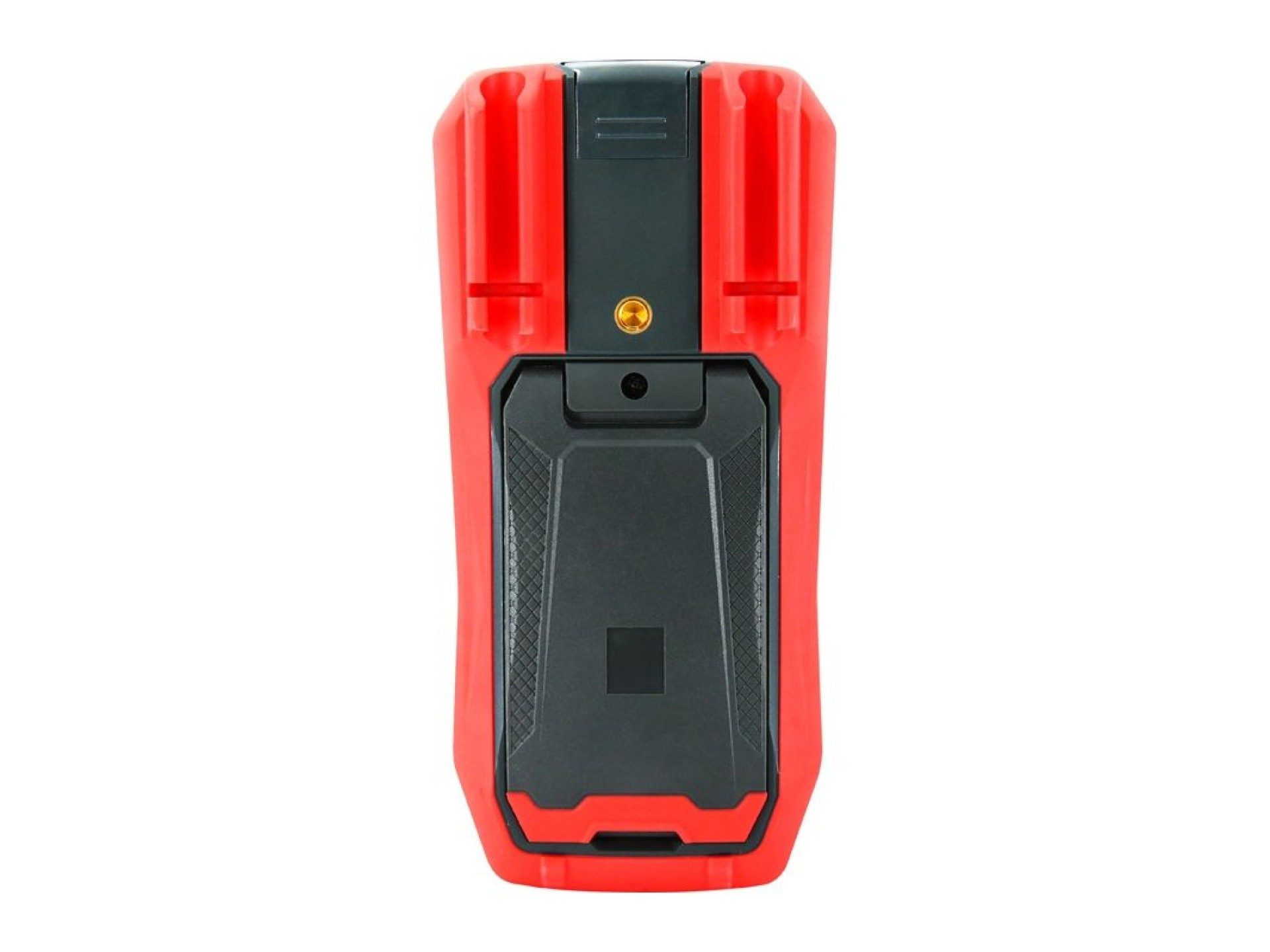

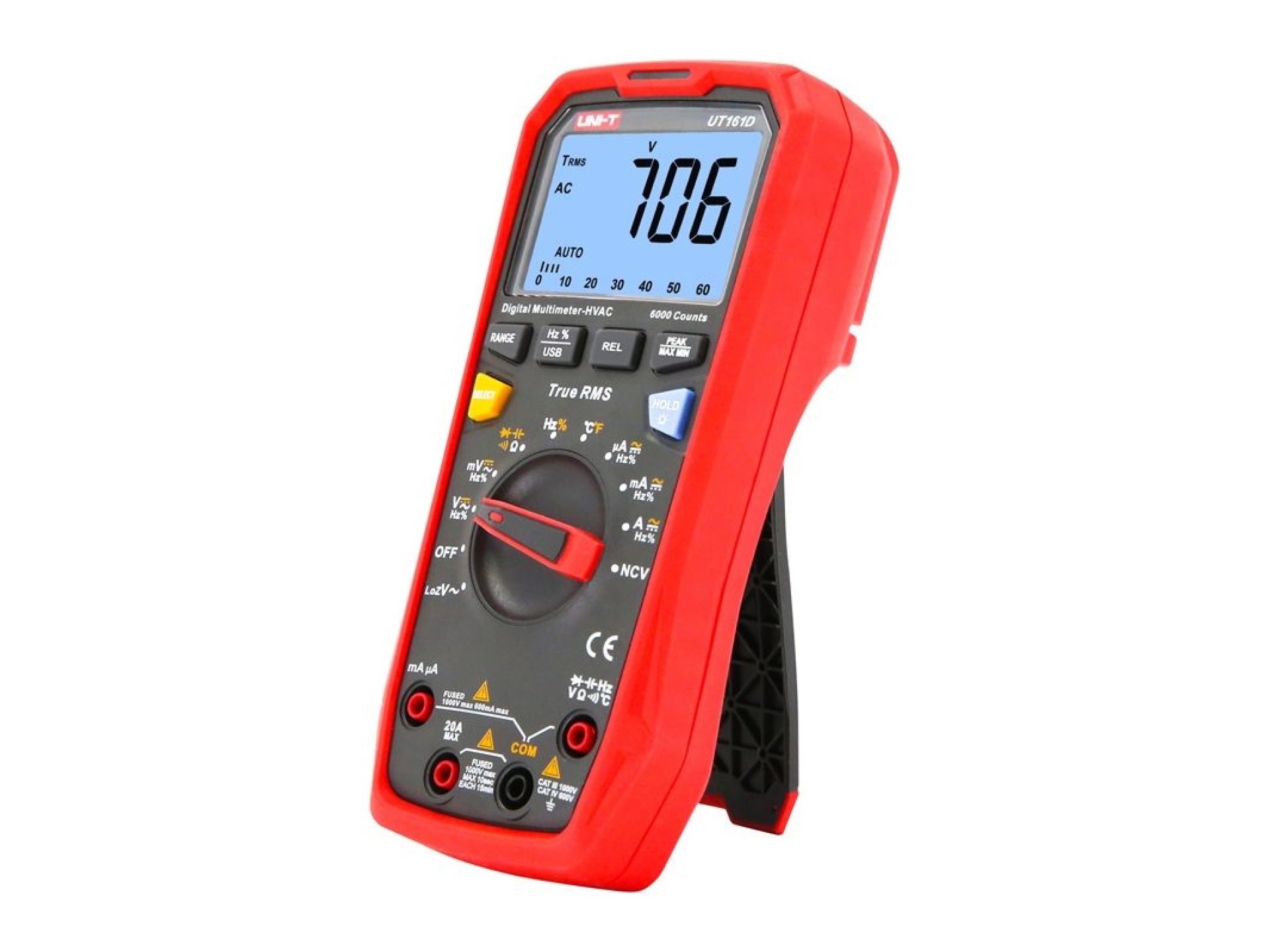

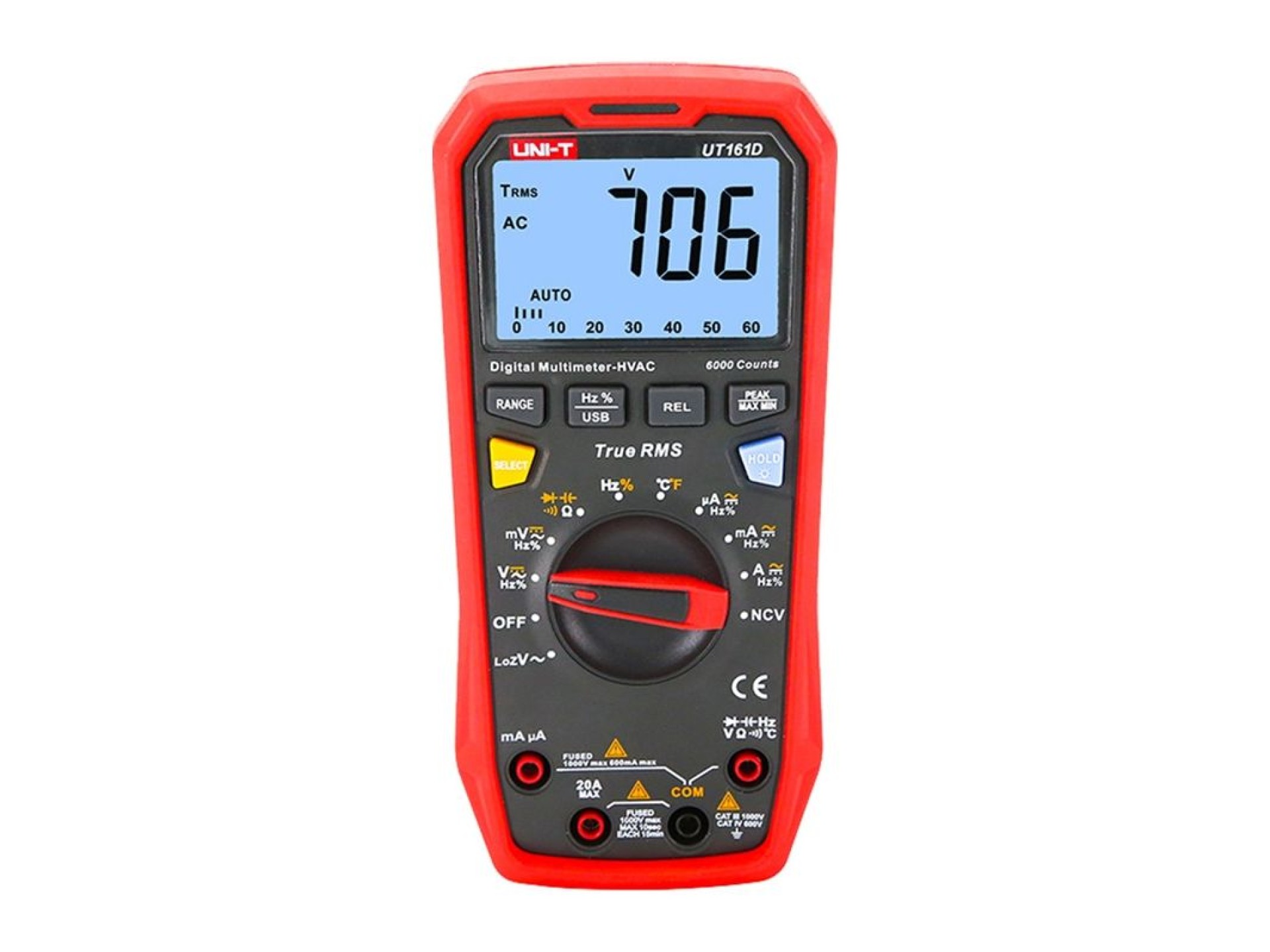

Uni-T UT161D Digital Multimeter
The Uni-T UT161D universal digital multimeter is an advanced measurement tool with True RMS functionality, designed for use in electrical installations and equipment diagnostics. It performs well both in the workshop and in more demanding service applications where measurement accuracy and safety are critical.
Wide Measurement Range
The device measures AC/DC voltage up to 1000 V and current up to 10 A, allowing it to handle higher-voltage systems. An additional temperature measurement function expands diagnostic capabilities and enables monitoring of device operating parameters.
Advanced measurement functions
True RMS ensures accurate measurements of alternating signals, while functions such as Max/Min, relative mode, and Peak Hold facilitate the analysis of results. Non-contact voltage detection (NCV) and the LoZ function increase safety and measurement accuracy in installations.
Readability and ease of use
The backlit display and analog bar graph allow for quick reading of results. USB communication enables data transfer, facilitating the documentation of measurements.
Included
- Digital multimeter
- Batteries x4
- Test leads
- USB cable
- Thermocouple
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT161D |
| Type | True RMS digital multimeter |
| DC voltage | 1000V ±(0.5%+3) |
| AC voltage | 1000V ±(1.0%+3) |
| DC current | 10A ±(1.0%+2) |
| AC current | 10A ±(1.2%+5) |
| Resistance | 60MΩ ±(1.0%+2) |
| Capacitance | 60mF ±(3.0%+5) |
| Frequency | 10MHz ±(0.1%+4) |
| Duty Cycle | 0.1% ~ 99.9% ±(2.0%+5) |
| Temperature | -40°C ~ 1000°C ±(1.0%+3) |
| Maximum reading | 6000 |
| AC bandwidth | 40Hz ~ 1kHz |
| Functions | True RMS, NCV, LoZ, diode test, continuity test, Data Hold, Relative mode, Max/Min, Peak Hold, backlight, bargraph, USB communication |
| Power supply | 4x 1.5V AAA batteries |
| Dimensions | 190 × 90 × 50 mm |
| Weight | 350 g |
| Safety | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
