EAN: 6935750502020

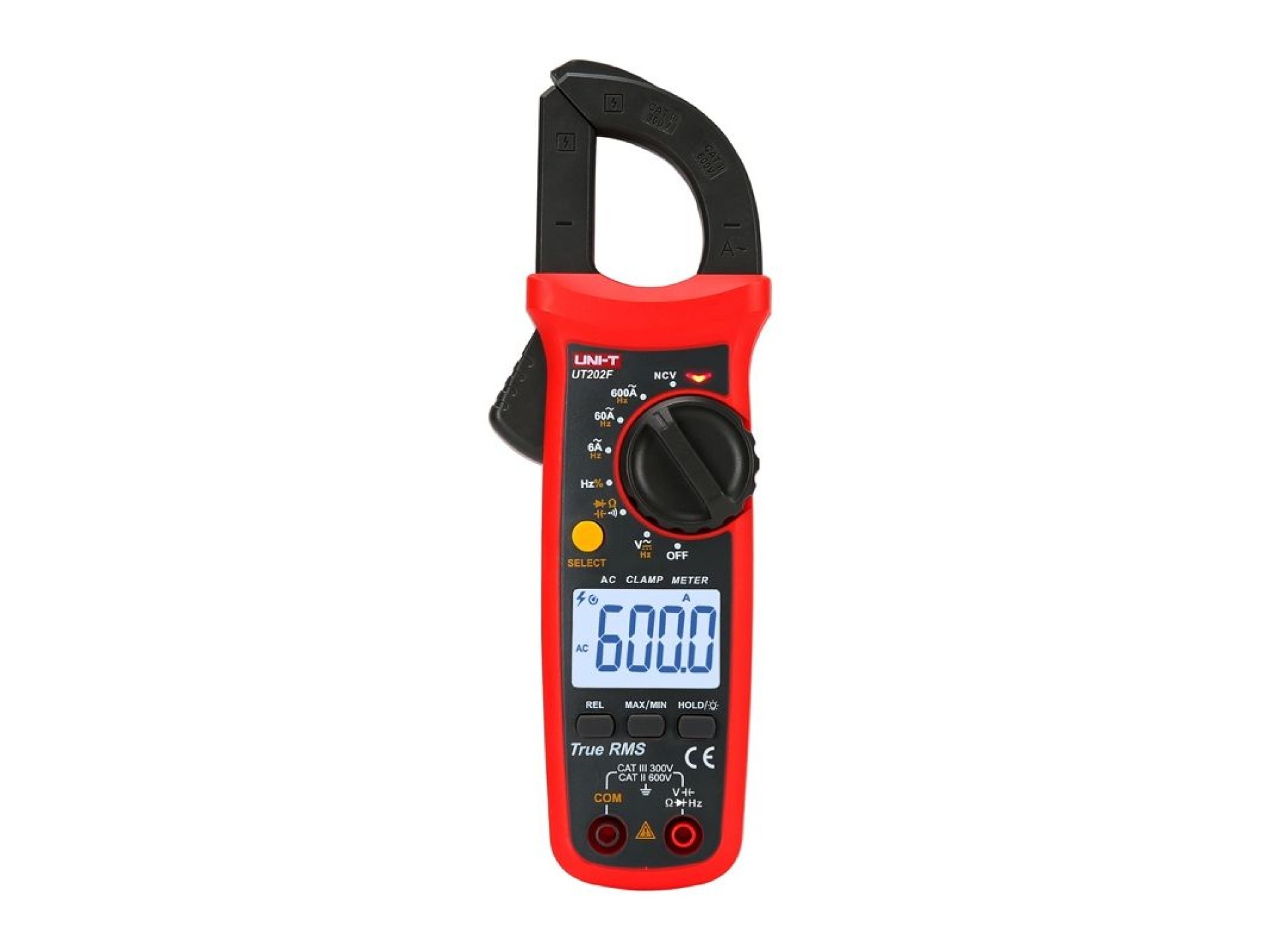

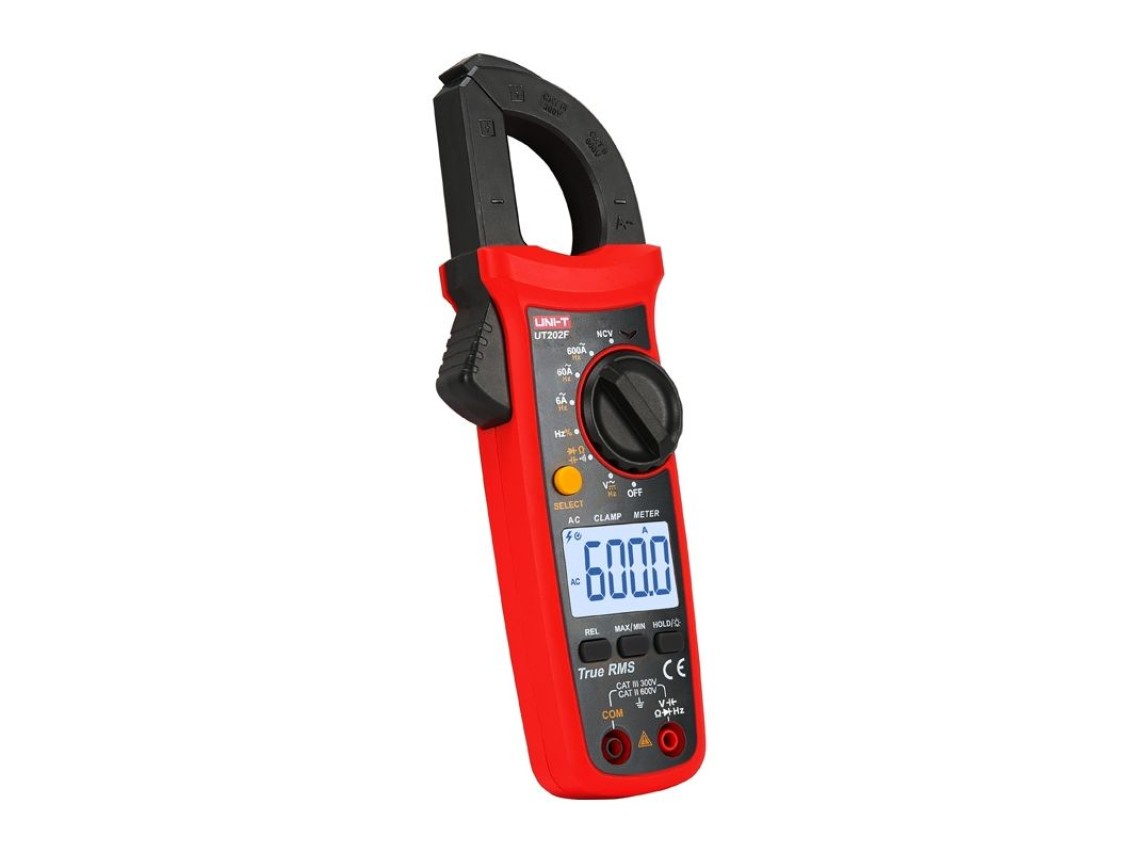

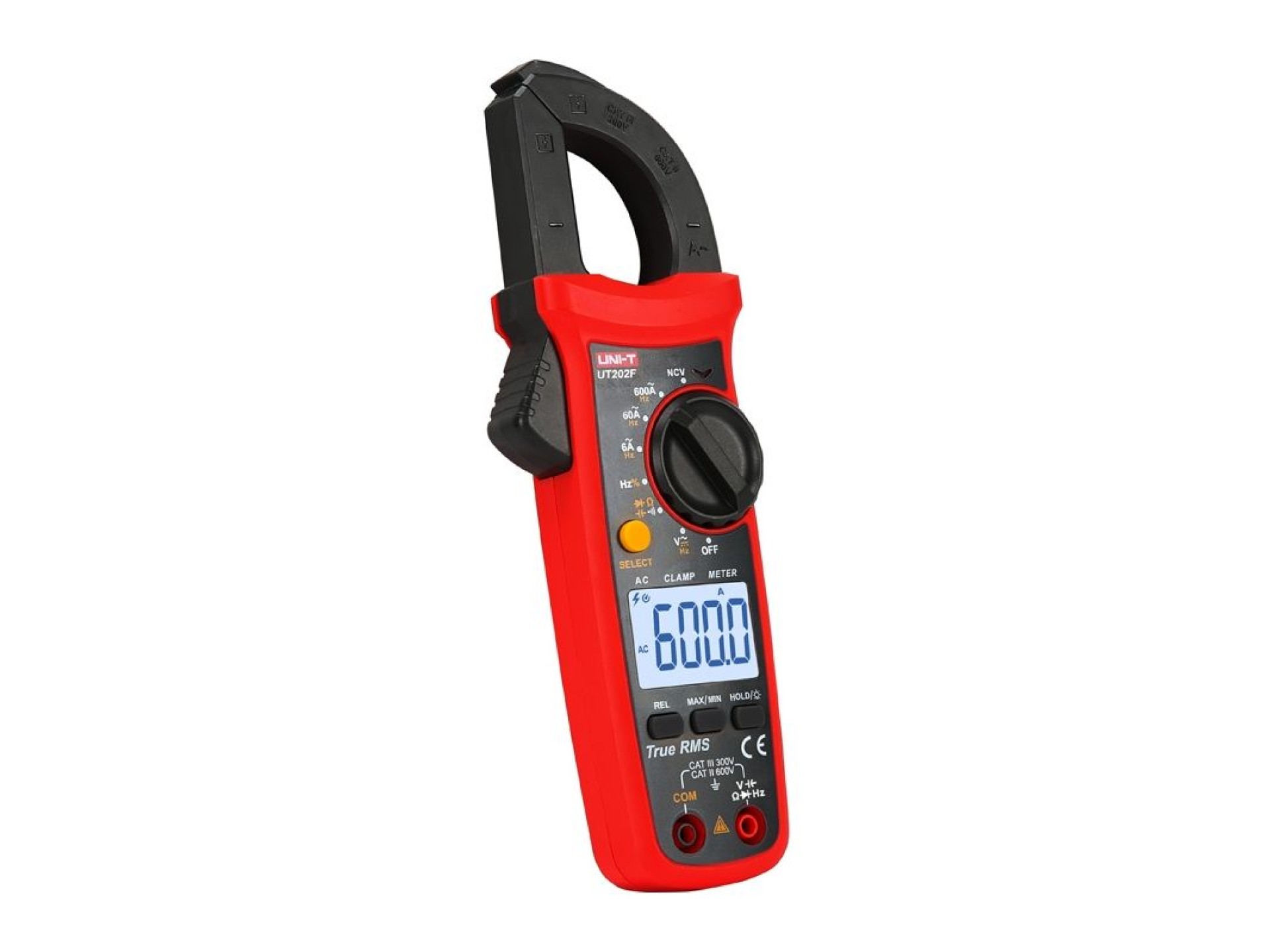

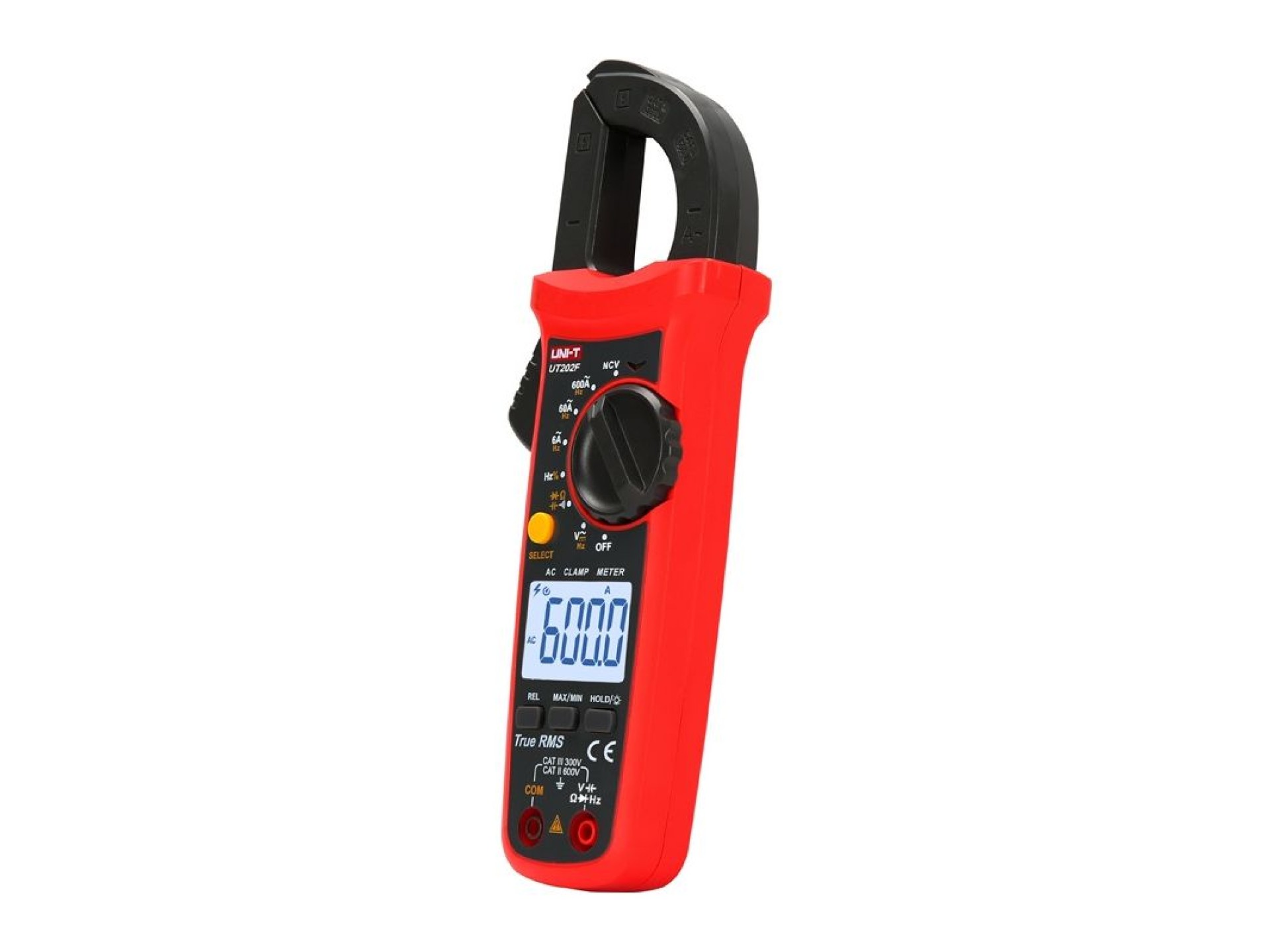

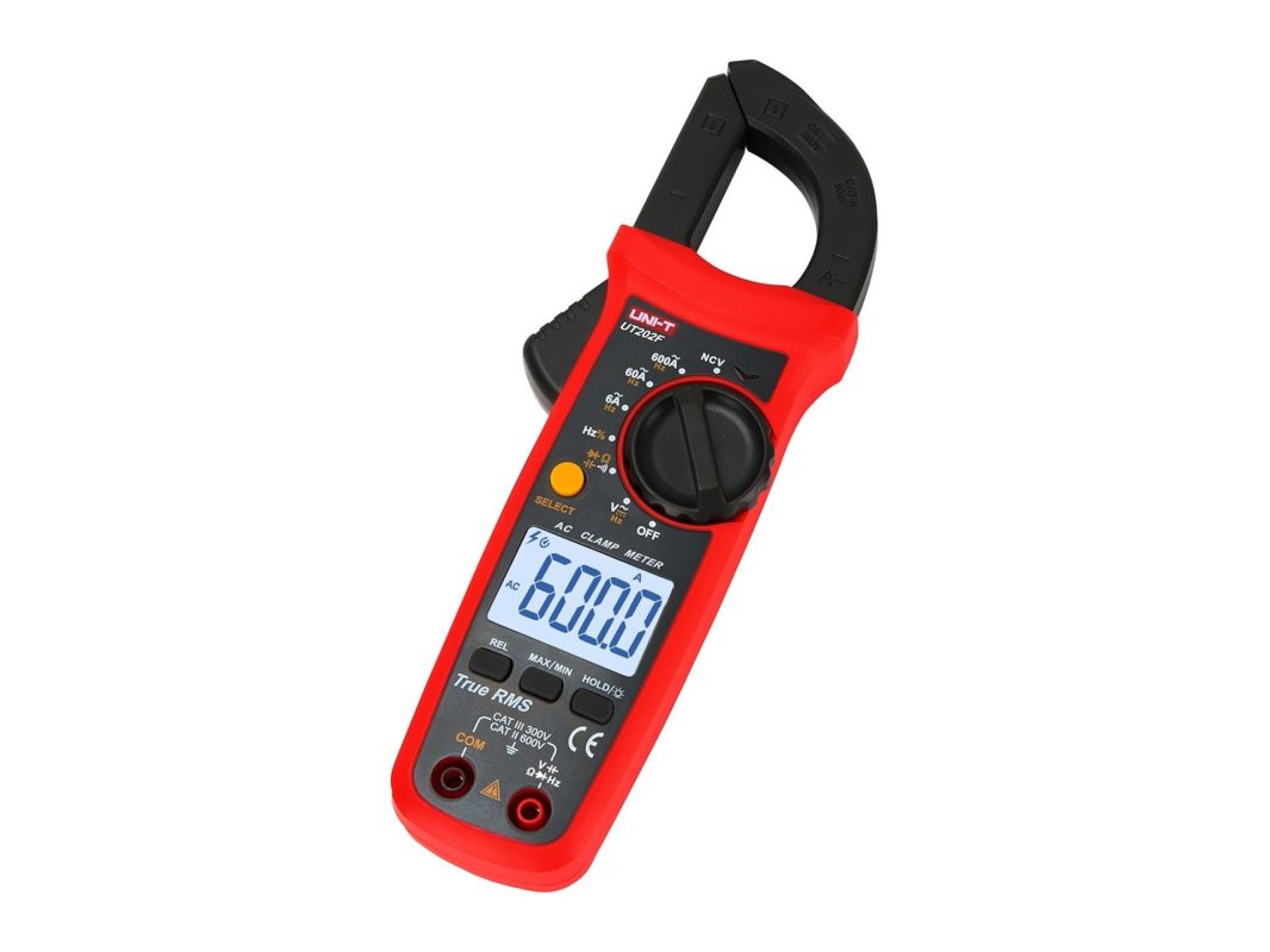

Uni-T UT202F Digital Clamp Meter
The Uni-T UT202F universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring AC current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field.
Extended measurement capabilities
The UT202F model allows for AC current measurement up to 600 A and AC and DC voltage measurement up to 600 V. In addition, it offers resistance measurement, capacitance measurement up to 60 mF, and frequency measurement up to 10 MHz, making it suitable for more complex diagnostics.
User-friendly features
The multimeter is equipped with True RMS, an LPF filter, and an NCV function, which enhance usability and assist during measurements in variable conditions. An additional advantage is the ability to measure low AC voltages down to 600 mV.
Clear design and safe operation
The large backlit screen improves the readability of results, and the higher resolution facilitates more precise parameter monitoring. Compliance with safety categories CAT II 600V and CAT III 300V allows for safe use of the device during daily measurements.
Included
- Clamp meter
- Batteries x2
- Test leads
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT202F |
| Type | Clamp meter |
| AC current | 0.06~600A ±(2%+10) |
| AC frequency | 50Hz~100Hz ±(1%+5) |
| AC voltage | 600V ±(0.8%+5) |
| AC voltage frequency | 10Hz~10kHz ±(1%+5) |
| DC voltage | 600V ±(0.5%+2) |
| Resistance | 60MΩ ±(0.8%+2) |
| Capacitance | 60mF ±(4%+5) |
| Frequency | 10Hz~10MHz ±(1%+5) |
| Maximum reading | 6000 |
| Functions | True RMS, NCV, LPF filter, low ACV measurement 600mV, LCD backlight |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (R03) |
| Safety | CAT II 600V / CAT III 300V |
| Dimensions | 215 x 63 x 36 mm |
| Certifications | CE, UKCA, cETLus |
