EAN: 6935750537206

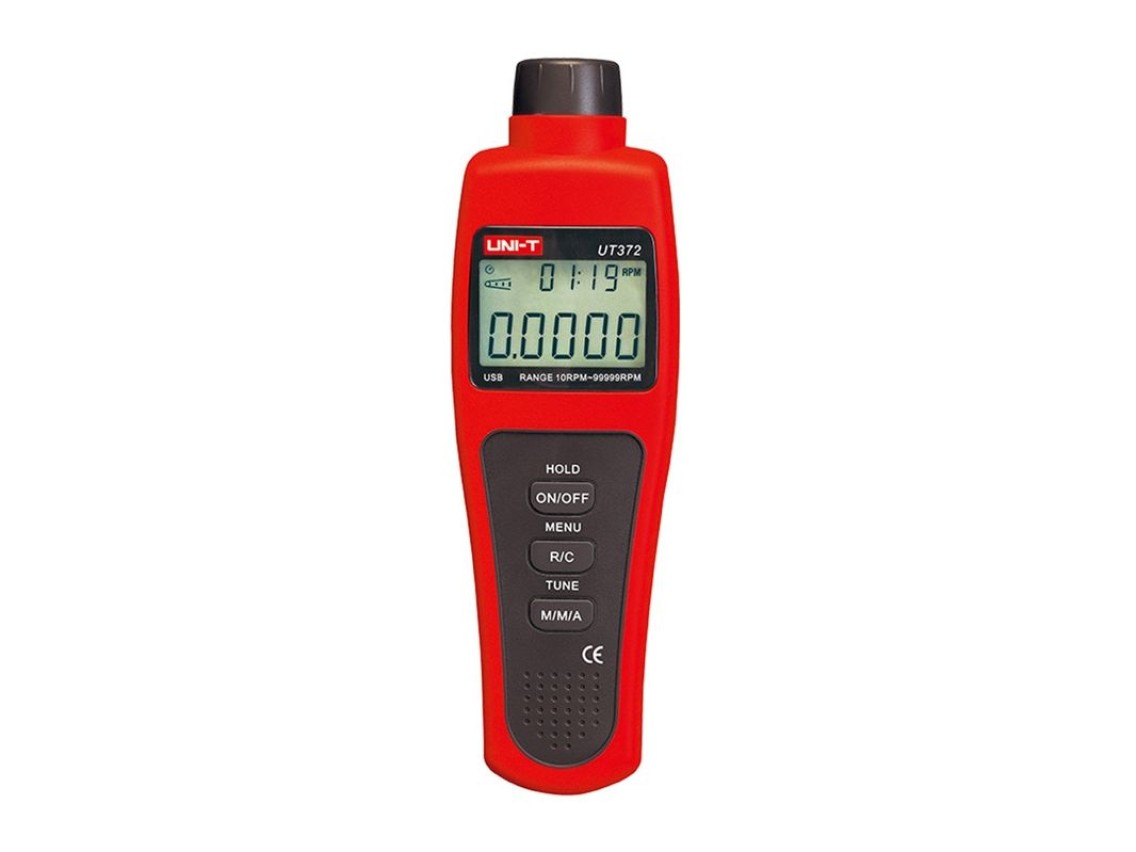

Uni-T UT372 Non-Contact Tachometer
The Uni-T UT372 non-contact tachometer is a precision tool for measuring rotational speed in the range of 10 to 99,999 RPM. It uses a laser and a reflective tape, allowing measurements to be taken without interfering with the operating equipment. It offers high accuracy tailored to the measurement range—±0.03% for 10–99 RPM and ±(0.04% + 2) for higher ranges—allowing for reliable results at both slow and high speeds. A clear 5-digit LCD display with dual readout and a count-up function up to 99,999 make the device well-suited for diagnosing motors, fans, and other rotating components.
Precision tailored to the operating range
The use of different accuracy levels depending on the measurement range translates to stable and realistic results in practice. At lower speeds, the device offers very high precision, while at higher speeds it maintains an optimal balance between accuracy and reading speed. MAX/MIN/AVG modes allow for analysis of changes over time, and the adjustable sampling time lets you tailor the measurement method to a specific application.
Functionality and ease of use
The UT372 is designed for comfortable use in the field and in the workshop. The Data Hold function makes it easy to read results, automatic shut-off helps save energy, and an operating time of up to 40 hours reduces the need for frequent battery replacement. Thanks to the USB interface, data can be transferred to a computer for further analysis. The compact housing and low weight ensure the device fits comfortably in the hand and does not cause fatigue during prolonged use.
Included
- Uni-T UT372 Tachometer
- Reflective tape
- USB cable
- PC software (CD)
- User manual
- Blister packaging
| Manufacturer | Uni-T |
|---|---|
| Model | UT372 |
| RPM measurement range | 10–99,999 RPM |
| Accuracy | 10–99 RPM: ±0.03%; 100–99,999 RPM: ±(0.04% + 2) |
| Counting function | 0–99,999 |
| Measurement distance | 50–200 mm |
| Operating modes | MAX / MIN / AVG |
| Sampling interval | 0.5–255 s |
| Additional features | Data Hold, auto power off, low battery indicator |
| Interface | USB |
| Power supply | 4 × 1.5 V (LR6) |
| Dimensions | 184 × 56 × 34 mm |
| Weight | 100 g |
