EAN: 6935750567302

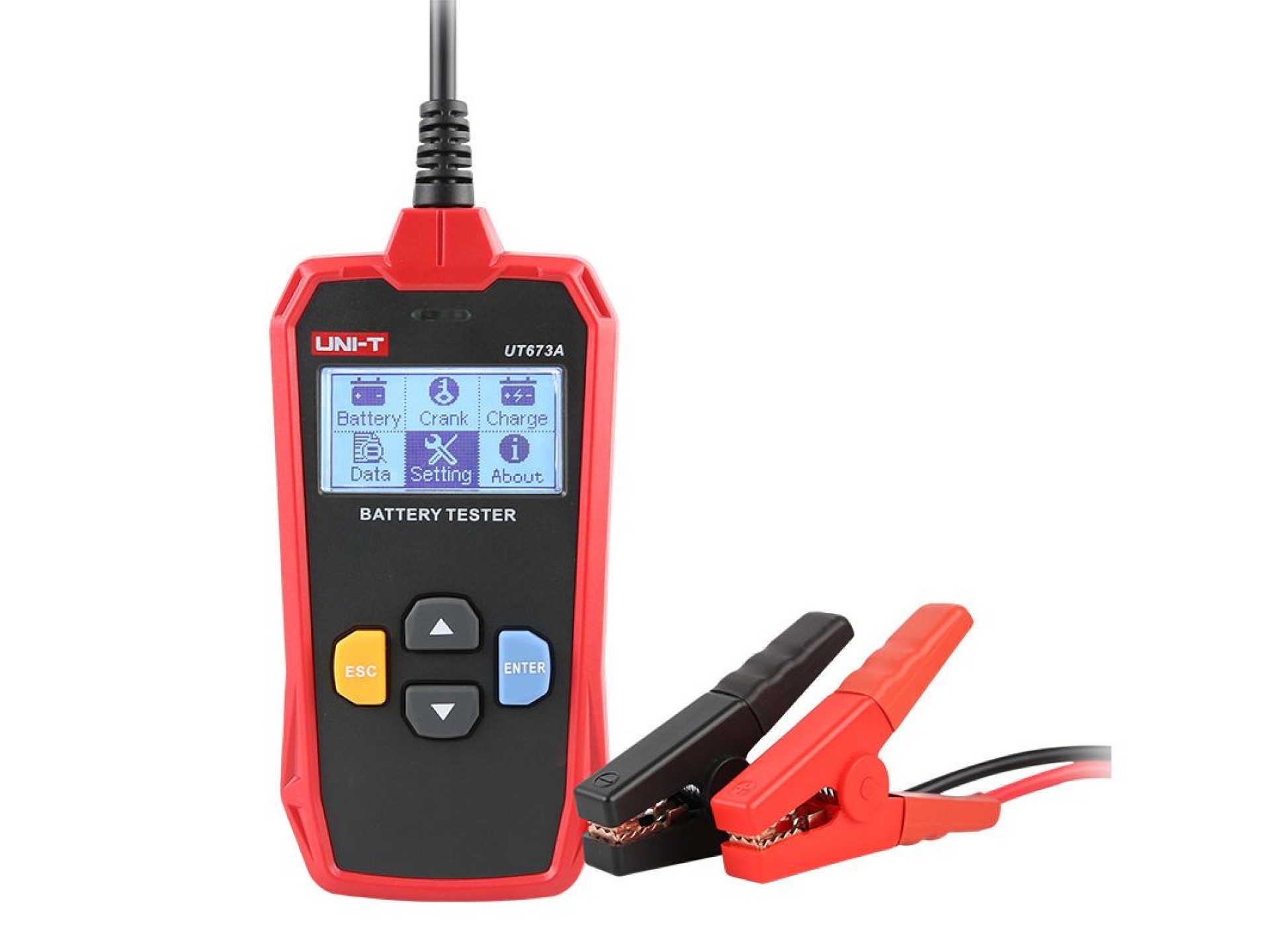

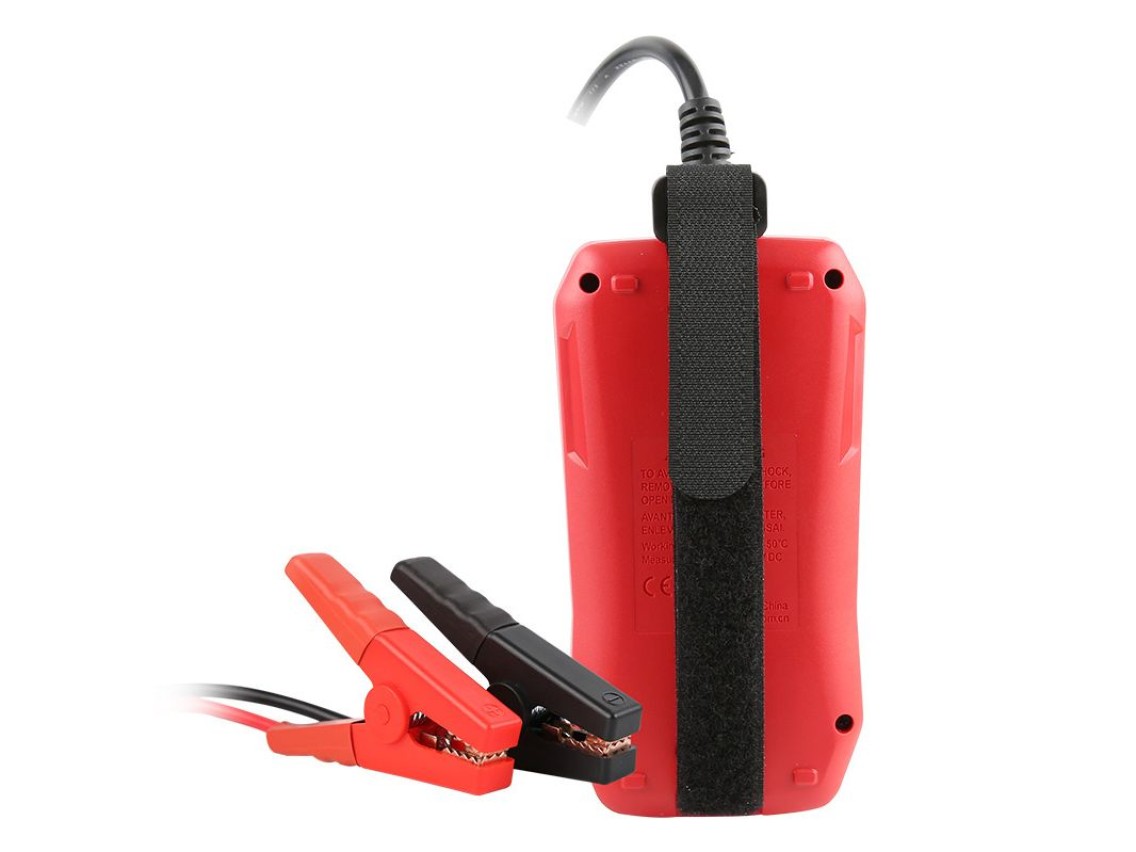

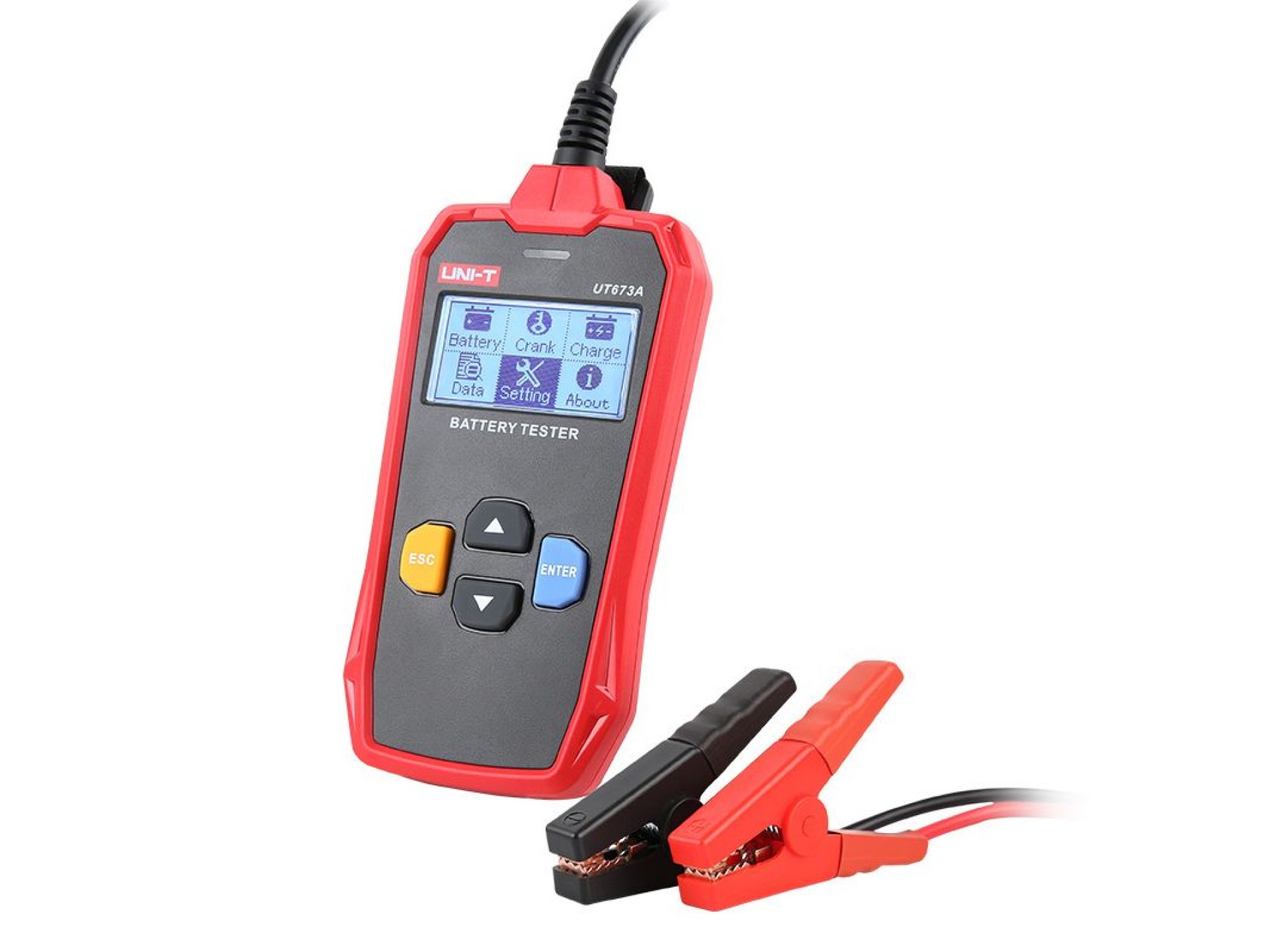

UNI-T UT673A car battery tester
The UNI-T UT673A car battery tester is an advanced device that allows quick and accurate analysis of the condition of batteries with capacities from 3Ah to 250Ah. Certified to CE, UKCA and FCC standards, the UT673A offers testing of 12V lead-acid starter batteries, as well as checking 12V/24V charging and starting systems. The tester displays key parameters such as capacity, voltage, resistance and battery life status. With a four-point Kelvin test and support for up to 10 different battery standards, the UT673A provides high-precision results without the need to disassemble the battery. In addition, the test result is presented in the form of an easy-to-read LED traffic light.
Comprehensive measurement capabilities and intuitive operation
The UNI-T UT673A allows comprehensive testing of both the state of charge of the battery and the operation of the vehicle's starting and charging system. The device allows you to choose the language of operation (Chinese or English), making it easy to use in different working environments. The four-point Kelvin measurement function eliminates the influence of wire resistance, providing even greater accuracy. Support for 10 types of battery standards allows tests to be tailored to different technologies and manufacturers, making the UT673A an extremely versatile tool in an automotive workshop or service center.
Durable design and convenience of use
The UT673A tester is distinguished by its sturdy construction and compact form, making it ideal for both workshop and field work. Test results are presented clearly on the display, and additional signaling with colored LEDs allows you to immediately assess the status of the battery. No need to disassemble the battery when testing significantly speeds up work and minimizes the risk of damage. UNI-T UT673A is a reliable support for anyone who relies on professionalism and precision in battery diagnostics.
| Manufacturer | UNI-T |
|---|---|
| Model | UT673A |
| Certifications | CE, FCC, RoHS |
| Measuring ranges | 12V battery test: 7-16V DC; 12V/24V starting system test: 7-30V DC; 12V/24V charging system test: 7-30V DC. |
| Types of batteries supported | Regular lead-acid battery, AGM battery with flat plates, AGM spiral battery, gel battery (GEL), EFB battery |
| Battery capacity range | 3-250 Ah |
| Supported battery standards and ranges | CCA: 40-2000; BCI: 40-2000; CA: 40-2000; MCA: 40-2000; JIS: 26A17-245H52; DIN: 40-1400; IEC: 40-1400; EN: 40-2000; SAE: 40-2000; AH: 3-250 Ah |
| Protections | Overvoltage protection, reverse connection protection |
| Low contact indication | Supported |
| Battery status display | Supported |
| Battery life display | Supported |
| Display battery capacity | Supported |
| Display of internal resistance of battery | Supported |
| Display | 128 x 64, black and white |
| Weight | 264 g |
| Dimensions | 76 x 22 x 142 mm |
