EAN: 6976391039506

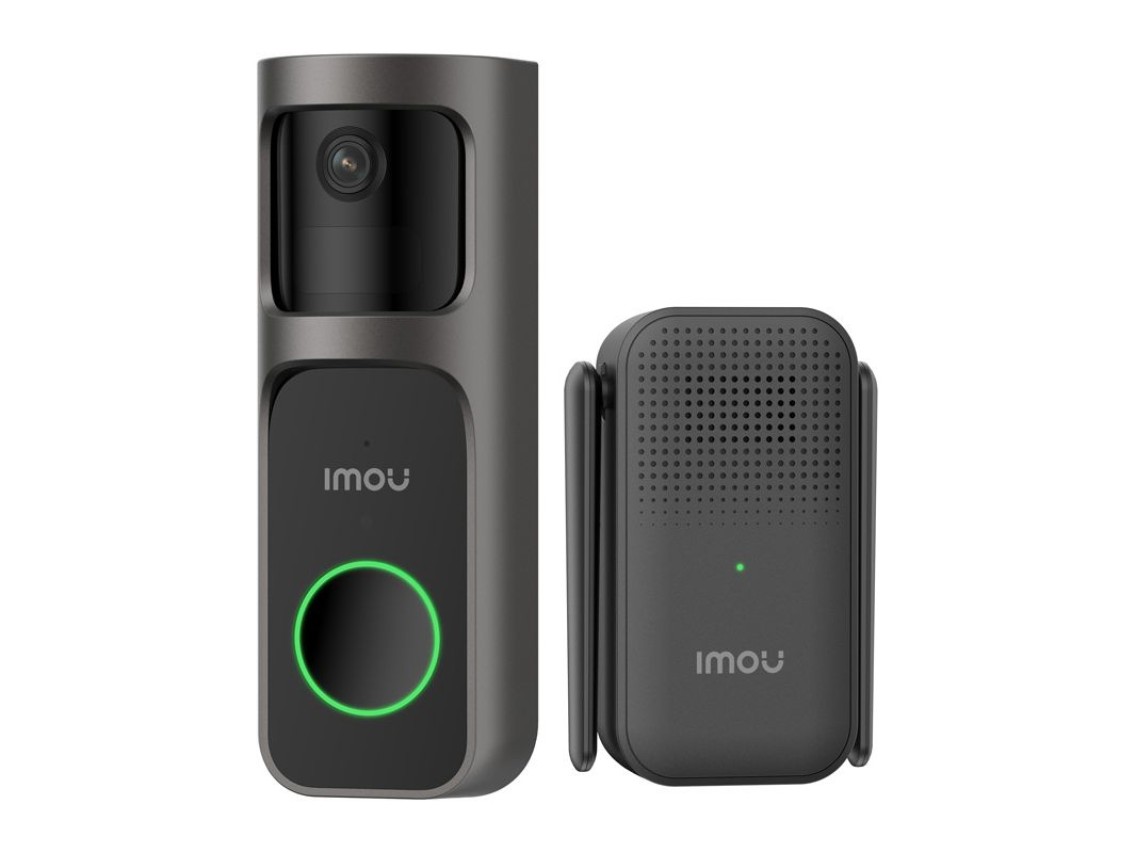

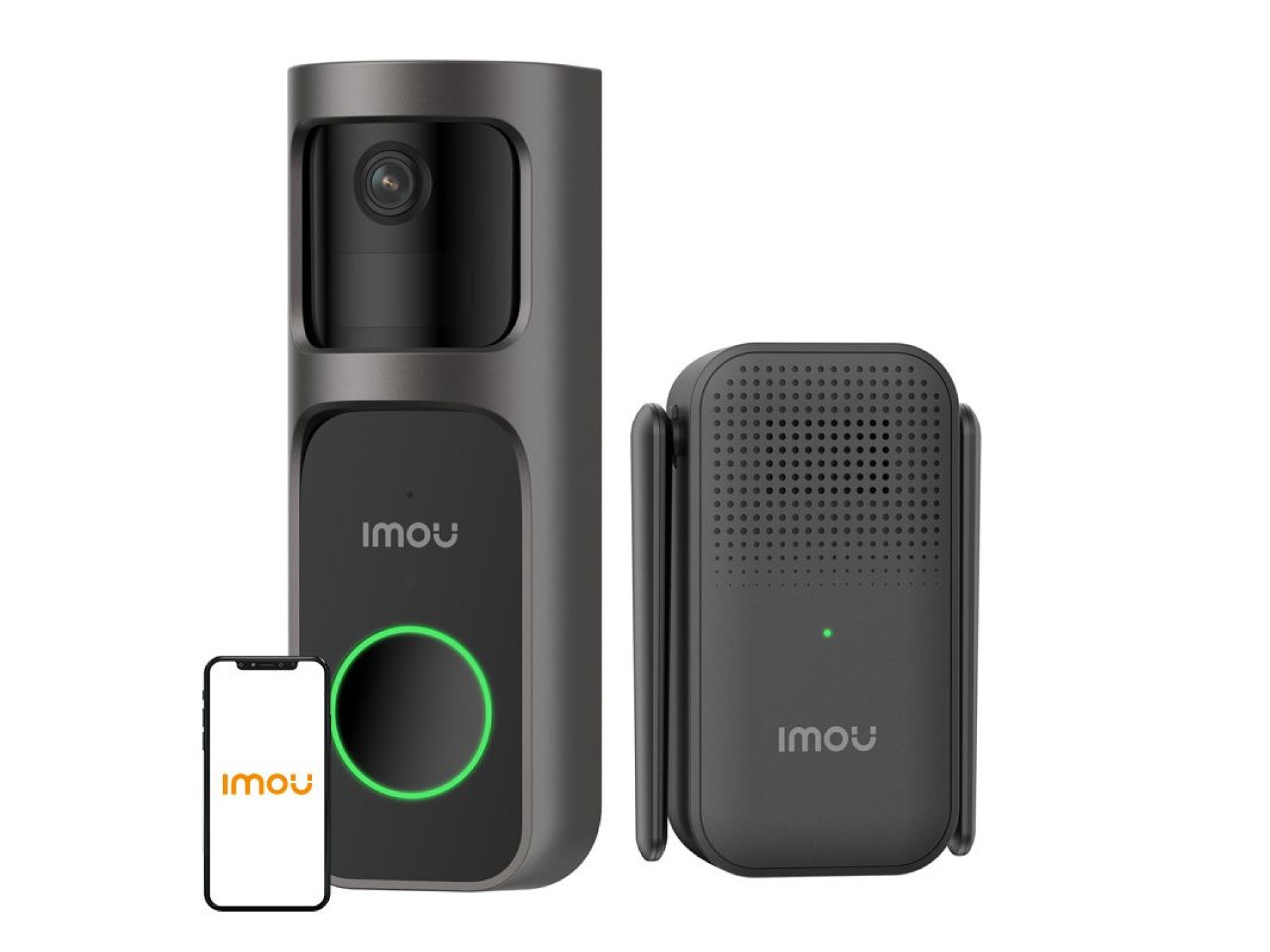

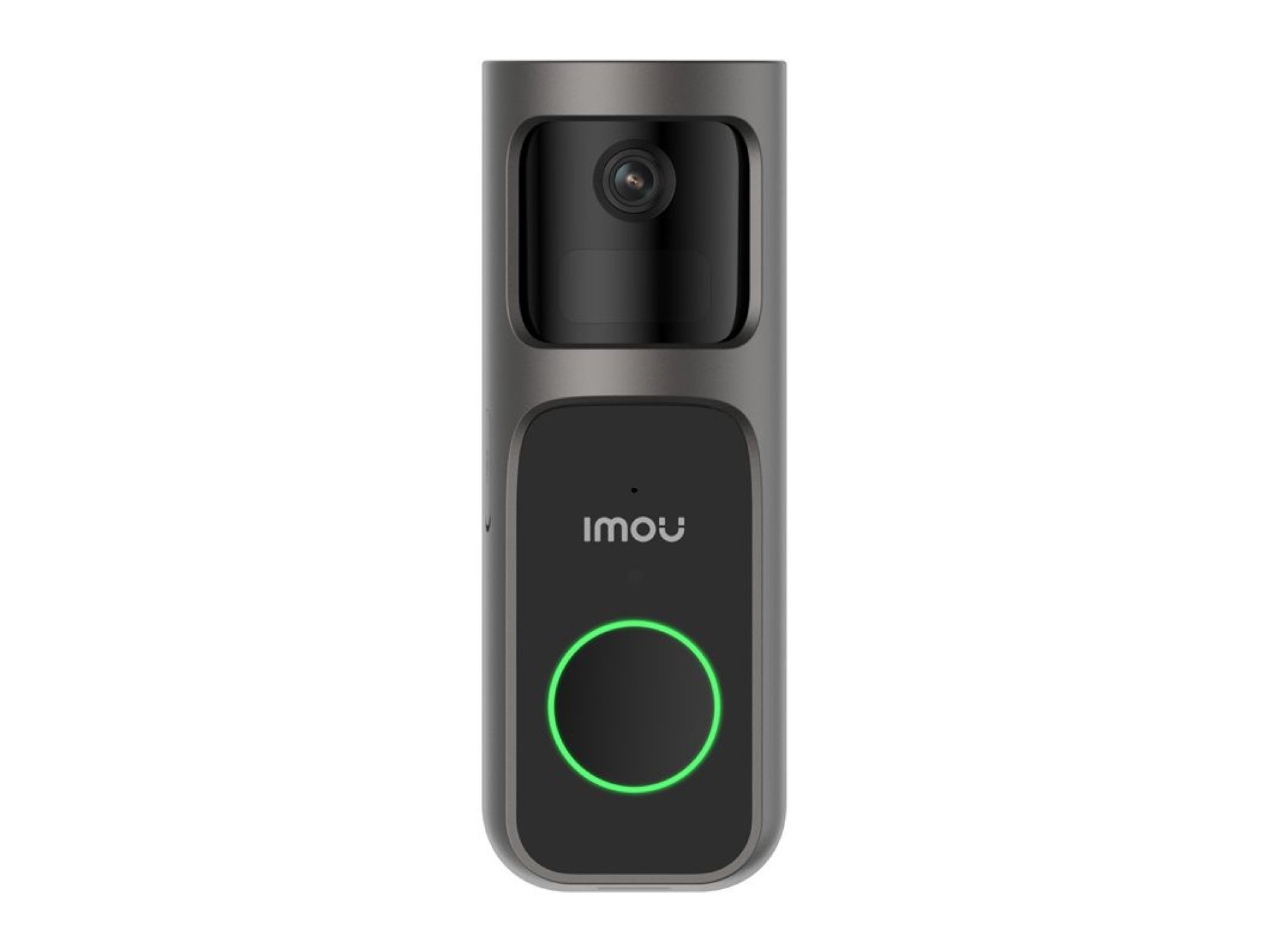

IMOU 2S KIT Wireless Doorbell
The IMOU Doorbell 2S Kit is a wireless video doorbell offering 3 MP / 2K (2048 × 1536) resolution, a wide viewing angle of up to 166°, and 30° pan capability, ensuring comprehensive coverage of the area in front of the entrance. The built-in 5000 mAh battery ensures complete freedom from wiring, and 2.4 GHz Wi-Fi support enables constant access to live view. The device is equipped with PIR detection, AI features, and two-way communication, which translates to effective monitoring and convenience in everyday use.
Clear image and full control over the entrance
The camera, featuring a 1/2.8" CMOS sensor and 3 MP resolution, captures detailed images that make it easy to identify people and events at the door. The wide viewing angle and panning function minimize blind spots, while the 8× digital zoom allows you to zoom in on details. Additionally, night vision with a range of up to 5 meters ensures a clear image even after dark.
Smart detection and notifications
The use of a PIR sensor and features for detecting people and prolonged presence in the area allows for quick detection of significant events. The system automatically sends notifications about motion and ringing, giving you real-time access to information about what’s happening at your door. Power-saving mode further extends the device’s battery life.
Real-time conversation and privacy protection
The built-in microphone and speaker enable two-way communication, allowing you to talk to visitors without opening the door. The voice-changing feature and quick replies enhance privacy, which is particularly useful for children or the elderly.
Stable connection and extended range
The indoor receiver not only serves as an audio notification device but also acts as a Wi-Fi signal booster for the doorbell. This ensures a stable connection, and installation requires no additional wiring. The device supports a mobile app for iOS and Android.
Flexible power supply and easy installation
The Doorbell 2S can operate completely wirelessly thanks to its battery, but it also offers an optional 8–24 VAC wired power supply. Charging is done via a USB-C port (DC 5 V 1 A). Its compact dimensions (150 × 55 × 50.3 mm) and light weight (237.5 g) make installation quick and convenient.
Included:
- Video doorbell
- Indoor receiver
- Mounting bracket
- USB charging cable
- Cable connectors x3
- 3M adhesive tape x2
- Receiver plug
- Screw pack
- Pin
- Mounting template
- Extension cable x2
- Jumper
- Quick start guide
General
| Manufacturer | IMOU |
|---|---|
| Model | DB-2SP-3T0W/DS3 |
| Charging power supply (video doorbell) | DC 5 V 1 A, USB-C port |
| Optional wired power supply (video doorbell) | 8~24 VAC, ≥5 VA |
| Power consumption (video doorbell) | Up to 2.27 W |
| Operating environment (video doorbell) | -20°C to +50°C, humidity <95% RH |
| Charging temperature (video doorbell) | 0°C to +45°C |
| Dimensions (video doorbell) | 150 × 55 × 50.3 mm |
| Weight (video doorbell) | 237.5 g |
| Certifications (video doorbell) | CE, weatherproof |
| Power supply (indoor receiver) | 100–240 VAC |
| Power consumption (indoor receiver) | Up to 3 W |
| Operating environment (indoor receiver) | -10°C to +45°C, humidity <95% RH |
| Dimensions (indoor receiver) | 95.5 × 65.1 × 30.2 mm |
| Weight (indoor receiver) | 79 g |
| Certifications (indoor receiver) | CE |
Video doorbell
| Sensor | 1/2.8" Progressive CMOS |
|---|---|
| Resolution | 3MP (2048 × 1536) |
| Night vision | Up to 5 m (16.5 ft) |
| Lens | Fixed 2.3 mm, 30° rotation |
| Field of view | 125° (H), 98° (V), 166° (D) |
| Battery | 5000 mAh |
Video and audio
| Video compression | H.265 |
|---|---|
| Frame rate | Up to 15 fps |
| Audio | Two-way communication |
| Zoom | 8× digital |
Notification management
| Notifications | Doorbell notification PIR motion detection Loitering detection Power-saving mode |
|---|
Network
| Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz |
|---|---|
| Indoor receiver function | Acts as a Wi-Fi booster for the doorbell |
| Mobile app | iOS, Android |
Additional interfaces
| Video doorbell | Built-in microphone and speaker Power button |
|---|---|
| Indoor receiver | Micro SD card slot (up to 512 GB) Built-in speaker Reset button |
