EAN: 6942349208669

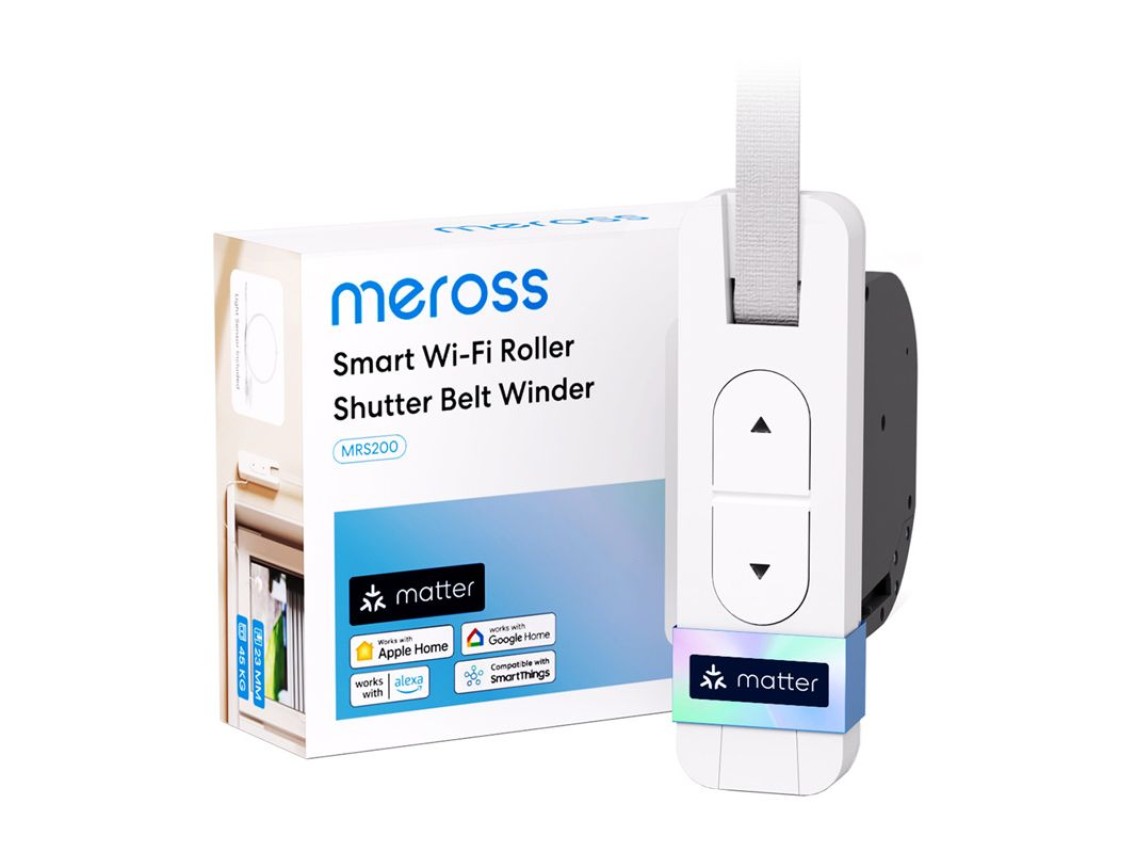

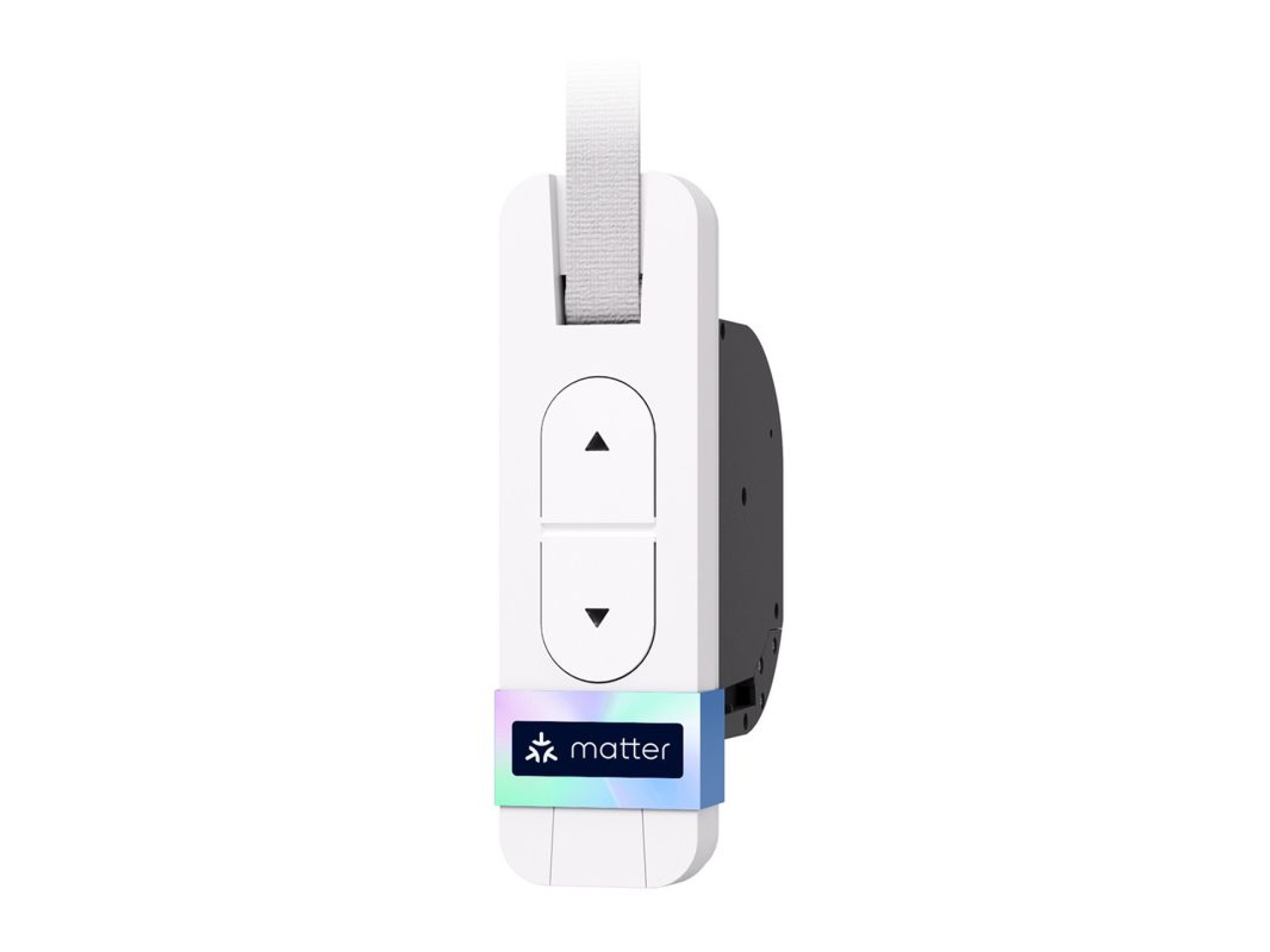

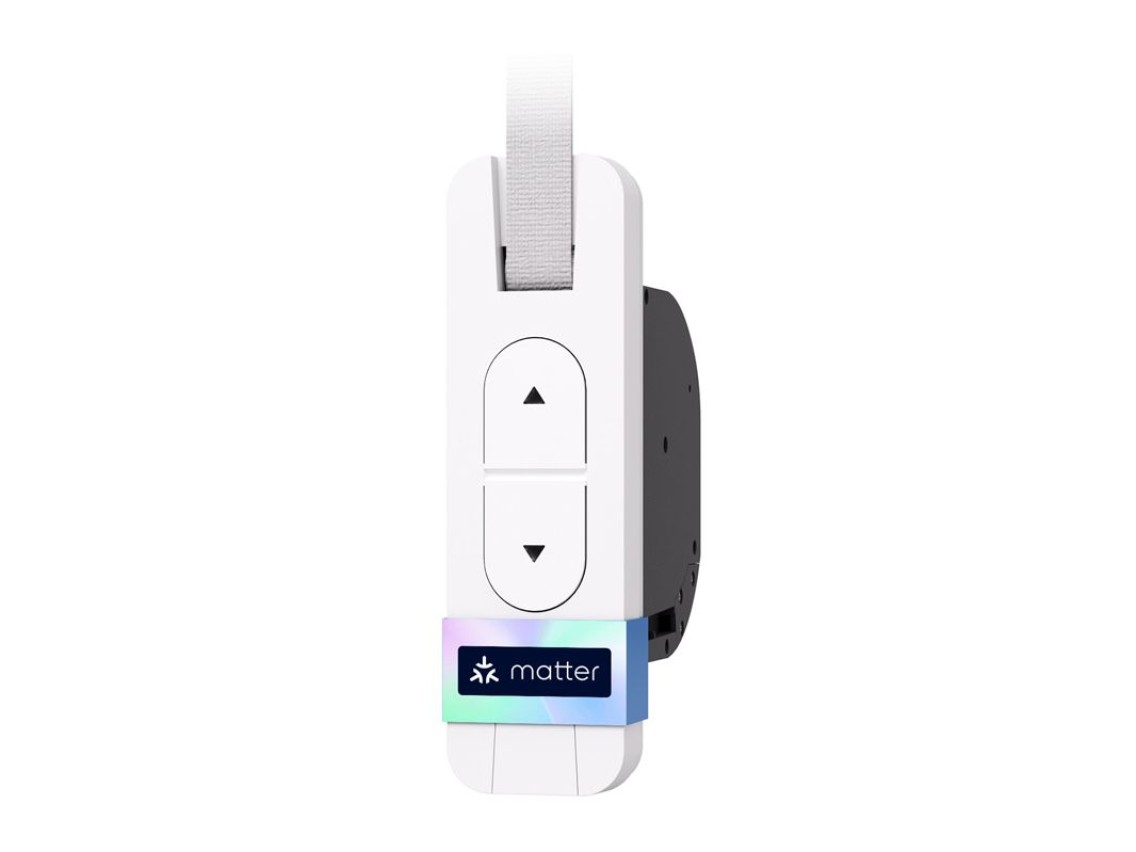

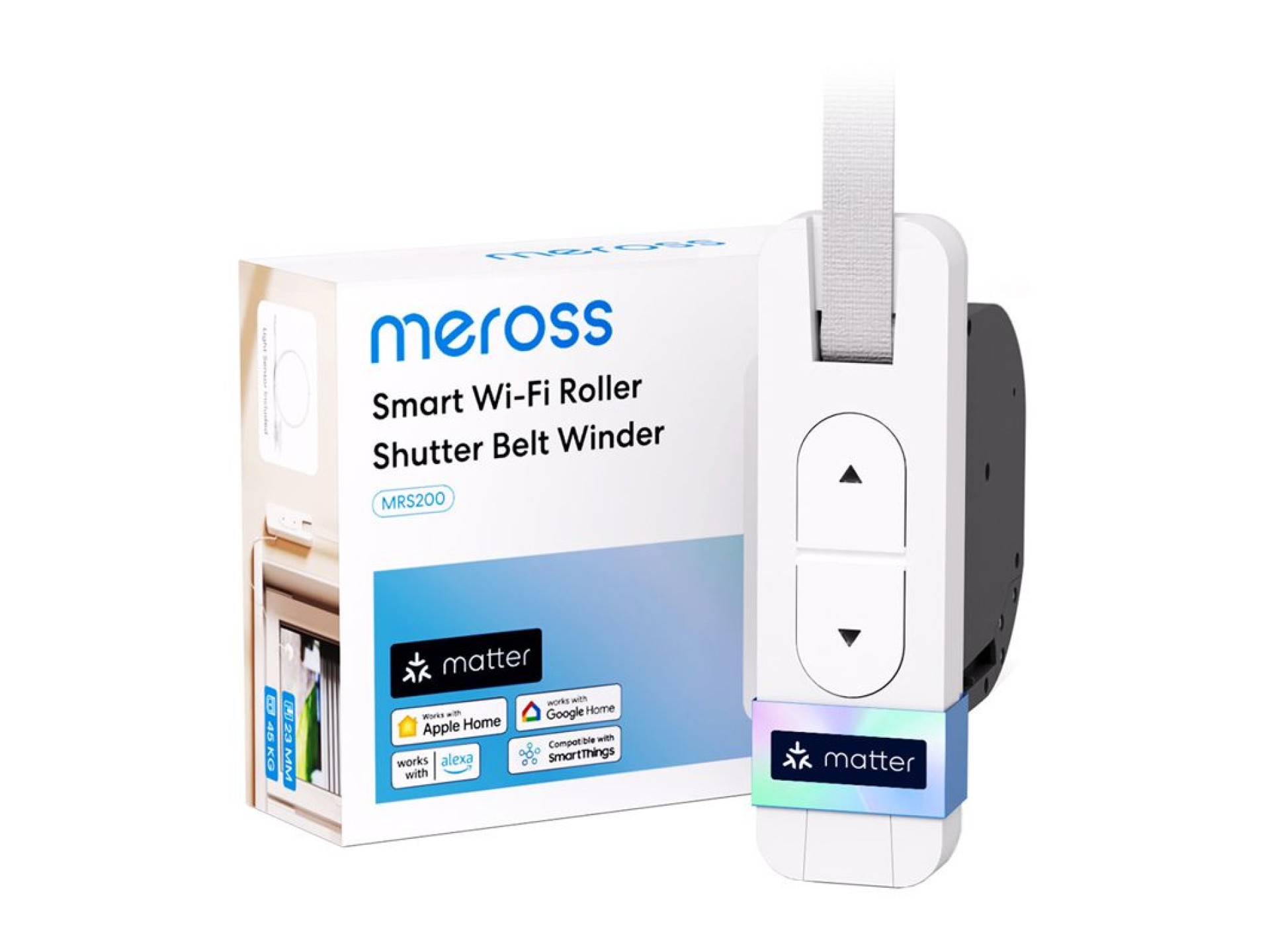

MEROSS MRS200MA-EU Wi-Fi Smart Roller Shade Operator
The MEROSS MRS200MA-EU is a smart roller shade operator that, thanks to its support for the Matter standard, offers full compatibility with Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings. Equipped with a motor capable of lifting up to 45 kg, it easily handles most standard roller blinds, and the automatic calibration feature precisely sets the end positions, allowing you to control the blind with pinpoint accuracy. This solution lets you conveniently manage light and privacy in your home using an app or voice commands.
Smart features tailored to everyday needs
The device offers a range of automation features that enhance user comfort. An external light sensor allows the roller shades to be raised and lowered automatically depending on lighting conditions, and the ventilation position feature lets you stop the roller shade at a selected position, ensuring airflow while maintaining privacy. The ability to create scenes allows the roller shutter operator to work with other devices—for example, automatically opening the roller shutters if smoke is detected.
Safety and Reliability
The roller is equipped with a range of safety features, such as overload protection and an obstacle detection system that automatically stops the motor if it encounters resistance. In the event of a power outage, manual control is possible thanks to the motor disengagement mechanism.
Installation requirements and compatibility
The device supports belts ranging from 3 to 6 meters in length (depending on thickness) and is compatible with aluminum roller shutters with an area of up to 3 m² and plastic ones up to 6 m². Installation requires a hole spacing of 165 mm or 185 mm and an installation space measuring approximately 136 x 131.5 x 61 mm.
Included
- Smart Wi-Fi roller blind tape winder
- Light sensor (1.5 m)
- Power cord (2 m)
- Decoupling bracket (in the housing)
- Mounting screws x5
- Roller shutter chamber cover
- Mounting hole cover
- Power cord cover
- Corner strap bracket
| Manufacturer | Meross |
|---|---|
| Product code | MRS200MA-EU |
| Input voltage | 230 V ~ 50/60 Hz |
| Rated power | 70 W |
| Standby power consumption | < 0.6 W |
| Torque | 10 Nm |
| Maximum speed | 36 rpm |
| Intermittent operation mode (KB) | 4 minutes (maximum continuous operating time) |
| Noise level | ≤ 70 dB(A) |
| Maximum drive force | 45 kg |
| Protection class | II |
| Protection rating | IP20 (for use in dry rooms) |
| Power cord length | 2 m |
| Light sensor cable length | 1.5 m |
| Mounting type | Flush-mounted |
| Mounting hole spacing | 165 / 185 mm |
| Dimensions | 61 × 164 × 210 mm (without power cord) |
| Antenna | 1 internal |
| Wireless communication standards | IEEE 802.11 b/g/n, 2.4 GHz, 1T1R |
| Network security | WEP 64/128-bit, WPA-PSK / WPA2-PSK (no support for Enterprise networks) |
| Certifications | CE, RoHS, WEEE |
| System requirements | iOS 16.1 or later, Android 10.0 or later, existing Wi-Fi network |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -40°C to 70°C |
| Operating humidity | 10%–90% (non-condensing) |
| Storage humidity | 5%–90% (non-condensing) |
